Note 1: Loctite 222 or Equivalent.
! Recommended spare parts items: 3

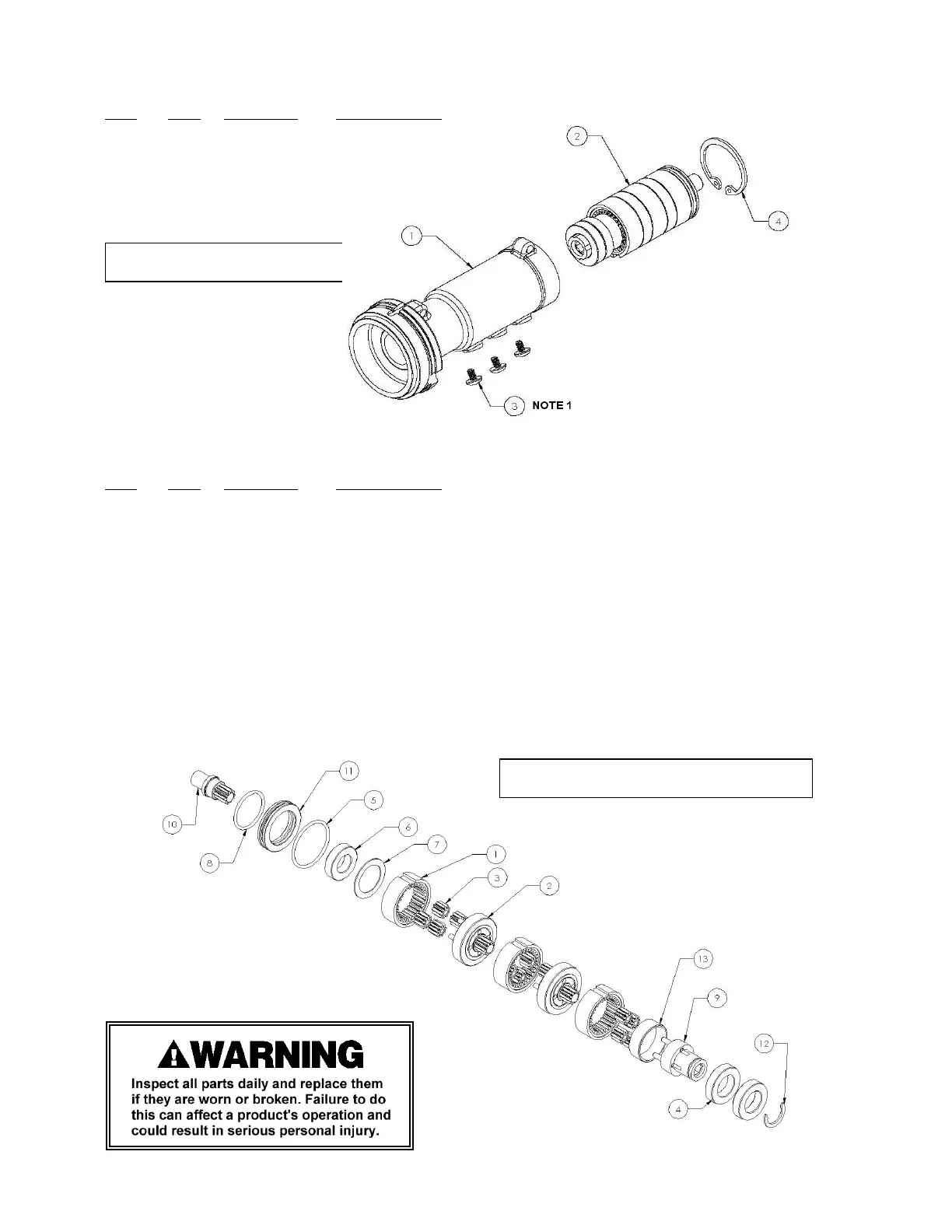

PARTS LIST - GEAR BODY ASSEMBLY (800443)
KEY QTY PART NO. DESCRIPTION
1 1 800603 GEAR BODY
2 1 800453 GEAR RING
3 3 800236 SBHCS M4 X5
4 1 800454 RING
PARTS LIST - GEARING (800453)
KEY QTY PART NO. DESCRIPTION
1 3 800256 RING GEAR
2 2 800251 IDLER CARRIER ASSEMBLY
3 12 800258 IDLER
4 2 800295 12mm BALL BEARING
5 1 800323 O-RING
6 1 429266 10mm BALL BEARING
7 1 800318 5/8 X 7/8 X.020 SHIM
8 1 800324 O-RING
9 1 800253 IDLER CARRIER ASSEMBLY
10 1 800403 DRIVE PINION ASSEMBLY
11 1 800407 GEAR END PLATE
12 1 800458 RETAINING RING
13 1 800457 SPACER
16
