! Recommended spare parts items: 1, 2, 3, 4, 5
Note 1: Loctite 401 or Equivalent.
! Recommended spare parts items: 1, 2, 3

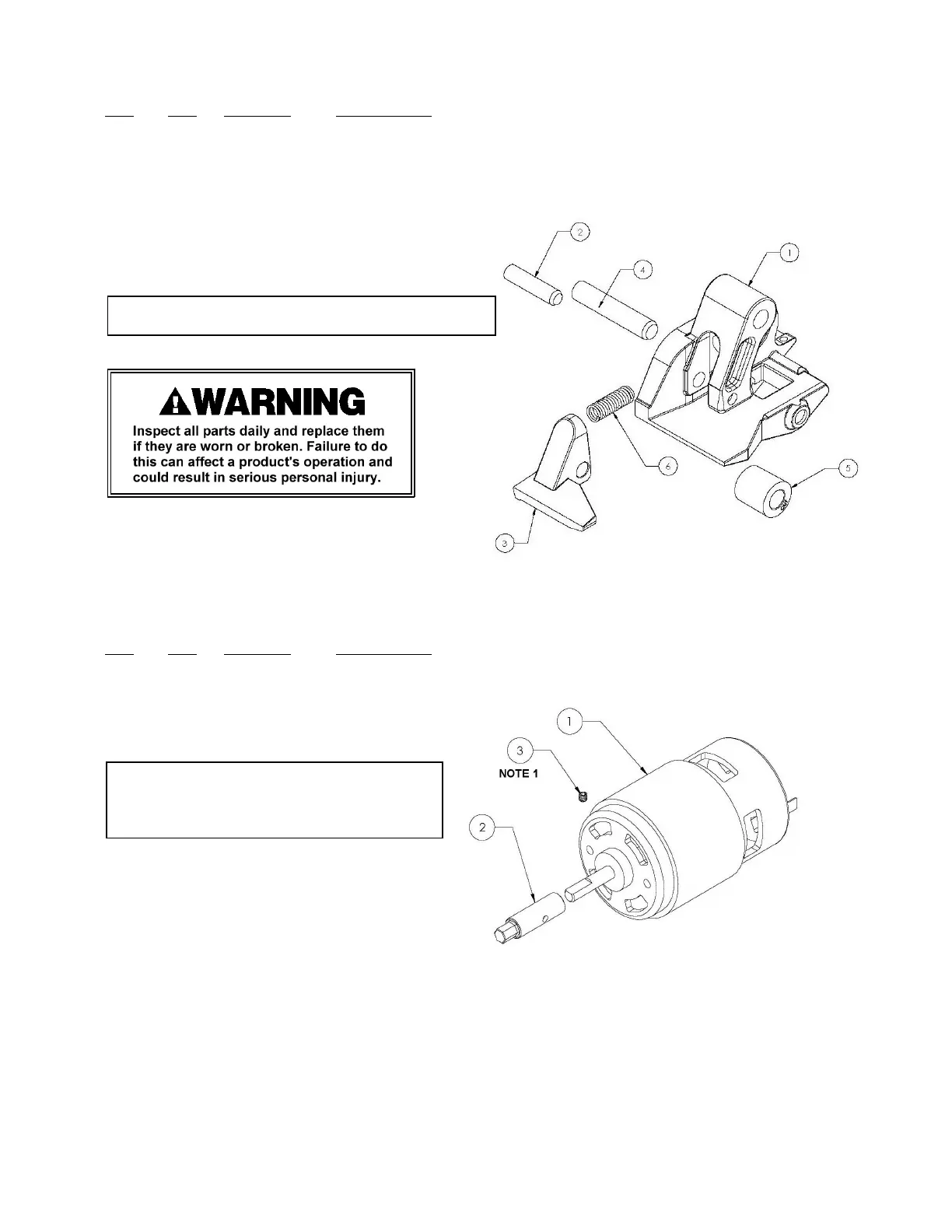

PARTS LIST - BREAKER FOOT ASSEMBLY (800445)
KEY QTY PART NO. DESCRIPTION
1 1 800410 BREAKER FOOT
2 1 252262 NOSE PIN i8 X 26
3 1 800602 BREAKER NOSE
4 1 423524 ROLLER PIN i10 X 50
5 1 423517 ROLLER
6 1 423546 NOSE SPRING
PARTS LIST - MOTOR ASSEMBLY (800447)
KEY QTY PART NO. DESCRIPTION
1 1 800422 MOTOR
2 1 800404 DRIVE SHAFT
3 1 800431 KCPSS M3 X 3
17
