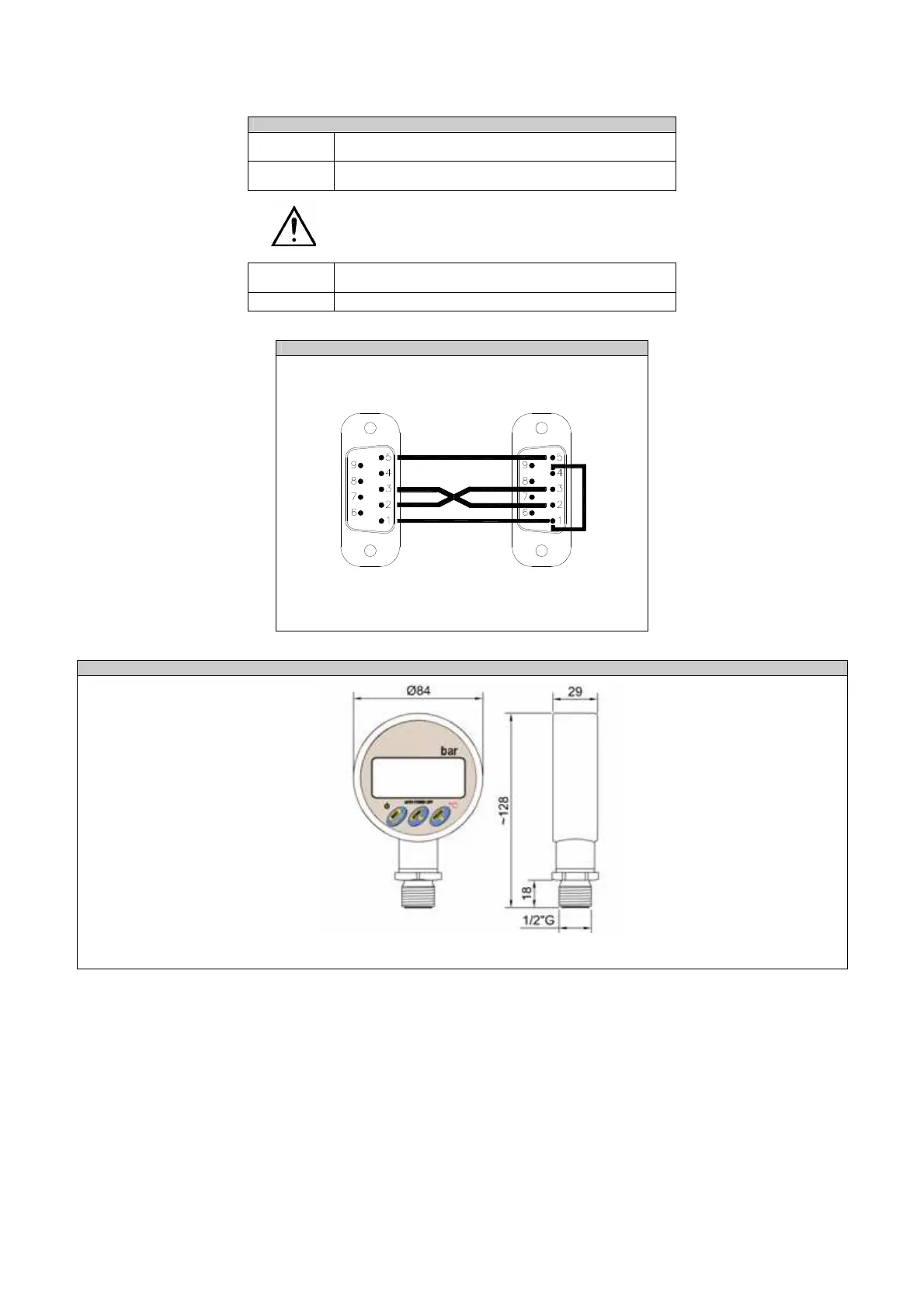

ERROR MESSAGES
UUUUU
Positive Overload: the manometer is measuring
a pressure higher than its nominal rate.
-LLLLL
Negative Overload: the manometer is measuring a
vacuum higher than –1 bar
Warning:
if an overload occurs, check if calibration has been altered.
HHHHH
Out of the Scale: the instrument shows the overflow of
display phisical limit (99999).
LbAtt
Low Battery : battery level is low. Please change batteries
RS232C CONNECTION
9 poles SUB D female
Ref R
PC - HOST
GND
TX
RX
DCD
Pin 1) DCD
Pin 2) RX
Pin 3) TX
Pin 5) GND
DIMENSIONS (mm)
