Siko MA10/4 Installation Instructions

MA10/4
Installation English
MA10/4 · Date 15.05.2017 · Art. No. 82316 · Mod. status 157/17
21

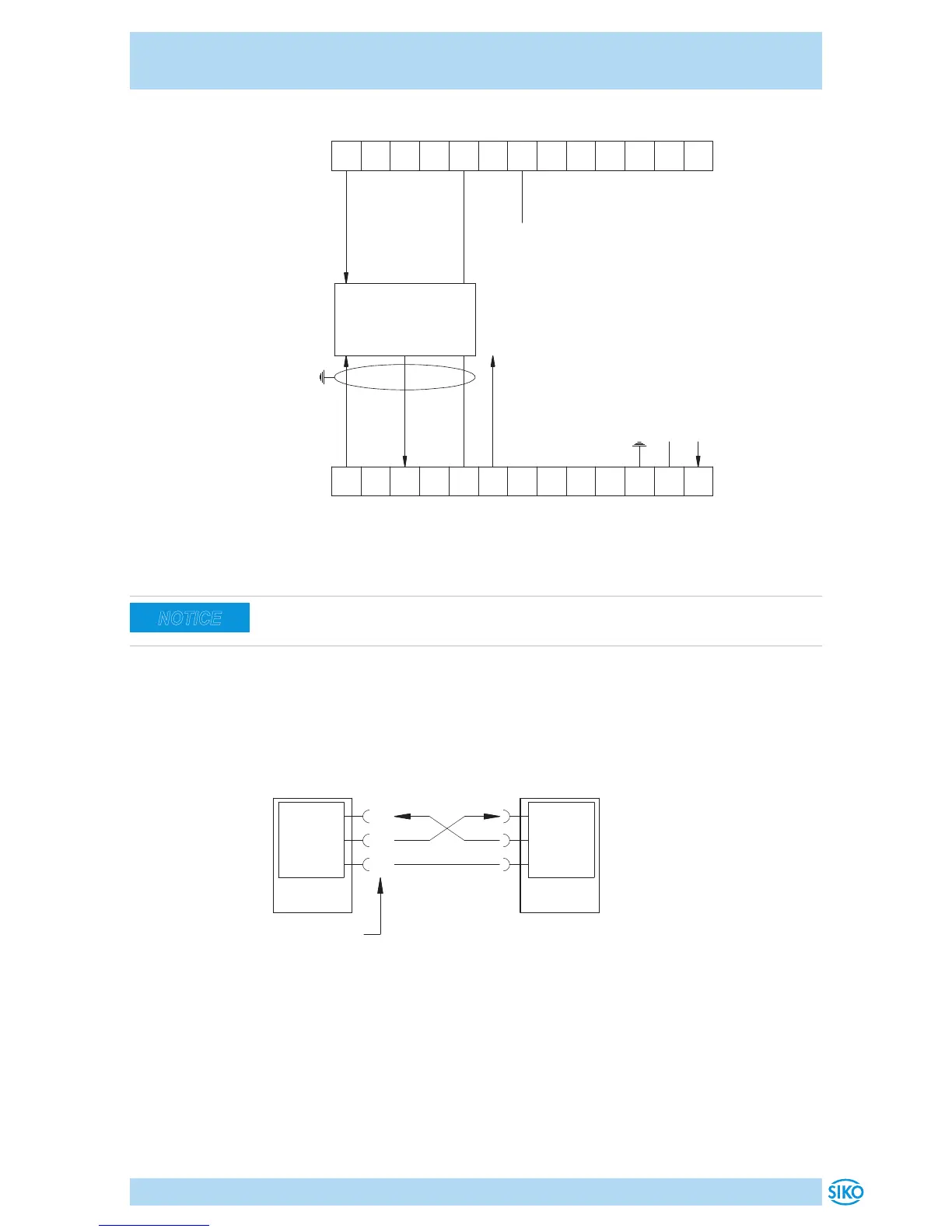

Fig. 7: Connection diagram speed measurement
           
  
encoder supply Signal GND
PE N (0V) L (+UB)
GND
GND
screen
incremental encoder
PP (push-pull)
OC (open collector)
24VDC out ≤50mA
encoder supply ≤200mA
Admissible power input
Supply for the electronic display shall be sized suciently. For the voltage
values refer to the Technical Data in chapter 8.
4.3 Optional serial RS232 or RS485 interface
The RS232 or RS485 serial interfaces are connected via terminals 20
(GND), 22 (TXD/ DÜA) and 23 (RXD/ DÜB).







 


Designation
terminal
Fig. 8: Connection diagram RS232 interface option
NOTICE
