Silencer 65SL - Page 5

IM_FULL_65SL_REV-A 5

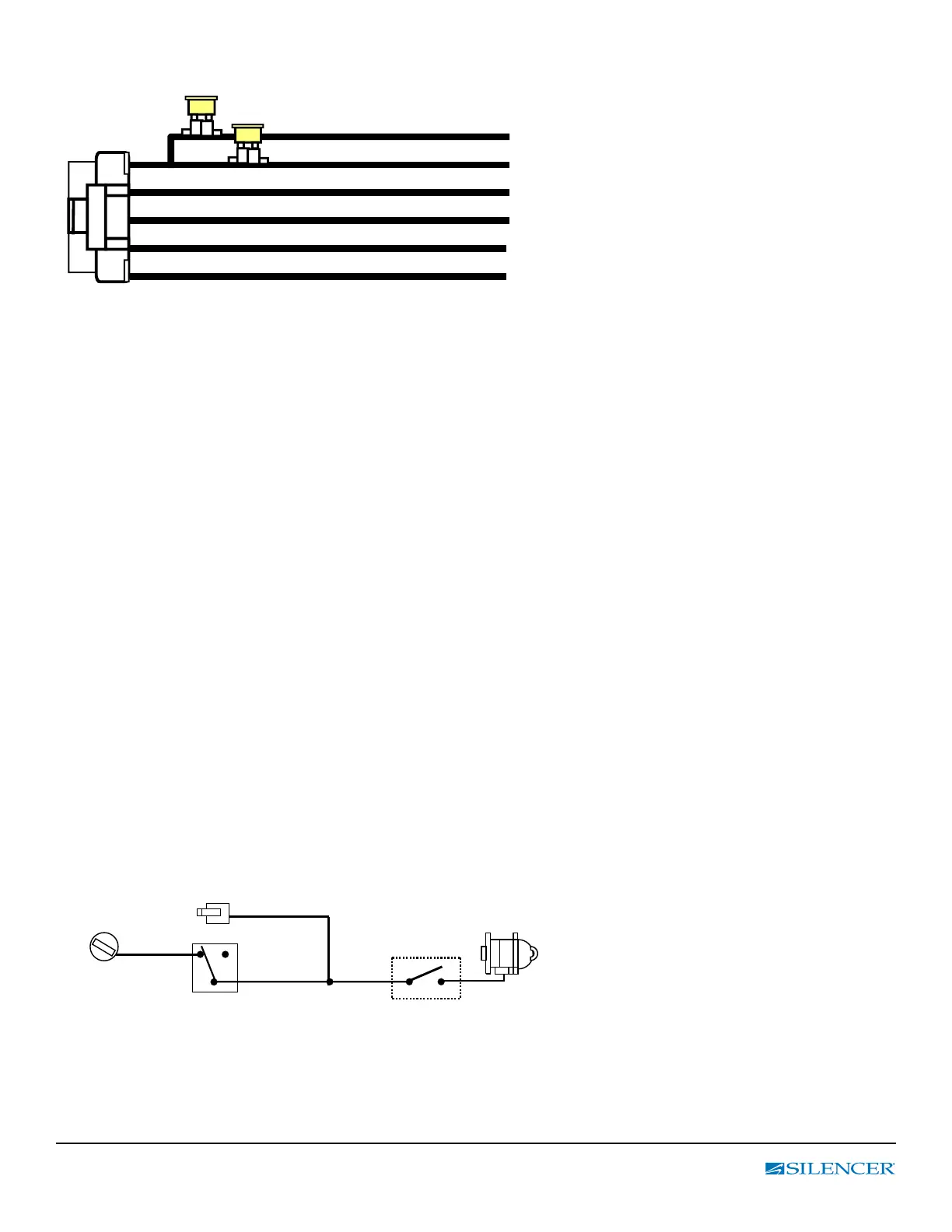

6 PIN HEAVY GAUGE WIRE HARNESS
Keep wiring away from moving engine parts, exhaust pipes and high-tension cable. Be sure to tape wires that pass
through holes on the rewall to prevent fraying.
CAUTION: Do not connect the wire harness to the control module until all wiring to vehicle is complete.
6 PIN HEAVY GAUGE WIRING CONNECTIONS:
Remember that what the system does to start a vehicle is to duplicate the functions of the ignition key switch!
Below, we will explain the three basic functions of the ignition switch. Since this installation will require analysis of the
ignition switch functions, we recommend making the three connections below at the ignition switch harness directly.
VIOLET WIRE—STARTER OUTPUT
Careful consideration for the connection of this wire must be made to prevent the vehicle from starting while in gear.
Understanding the difference between a mechanical and an electrical Neutral Start Switch will allow you to properly
identify the circuit and select the correct installation method. In addition you will realize why the connection of the safety
wire is required for all mechanical switch congurations.
Failure to make this connection properly can result in personal injury and property damage.
In all installations it is the responsibility of the installing technician to test the remote start unit and assure that the vehicle
can not start via RF control in any gear selection other than park or neutral.
In both mechanical and electrical neutral start switch congurations, the connection of the VIOLET wire will be made to
the low current start solenoid wire of the ignition switch harness. This wire has +12 volts when the ignition switch is turned
to the “START” (CRANK) position only. This wire has 0 volts in all other ignition switch positions.
NOTE: This wire must be connected to the vehicle side of the starter cut relay (when used). For the electrical neutral
switch conguration, this connection must be made between the starter inhibit relay (when used) and the neutral safety
switch as shown in the following diagram. Failure to connect this wire to the ignition switch side of the neutral safety switch
can result in personal injury and property damage. SEE NEUTRAL START SAFETY TEST FOR FURTHER DETAILS.
Start Cut Relay
(When Used)
VIOLET
Wire
Closed in Park or
Neutral Only
Ignition
Switch
“Start”
“On”
Neutral Safety
Switch
“Acc”
“Off”
Starter
20A
20A
Red: Remote Start Power 1
Red: Remote Start Power 2
Violet: Starter (+) Output
Pink: Ignition 2 (+) Output
Yellow: Ignition 1 (+) Output
Brown: Acc/Heater (+) Output
