Silver King SKBR2 - Front View (Skbr1, Skbf1)

- 3 -
1. FEATURE CHART

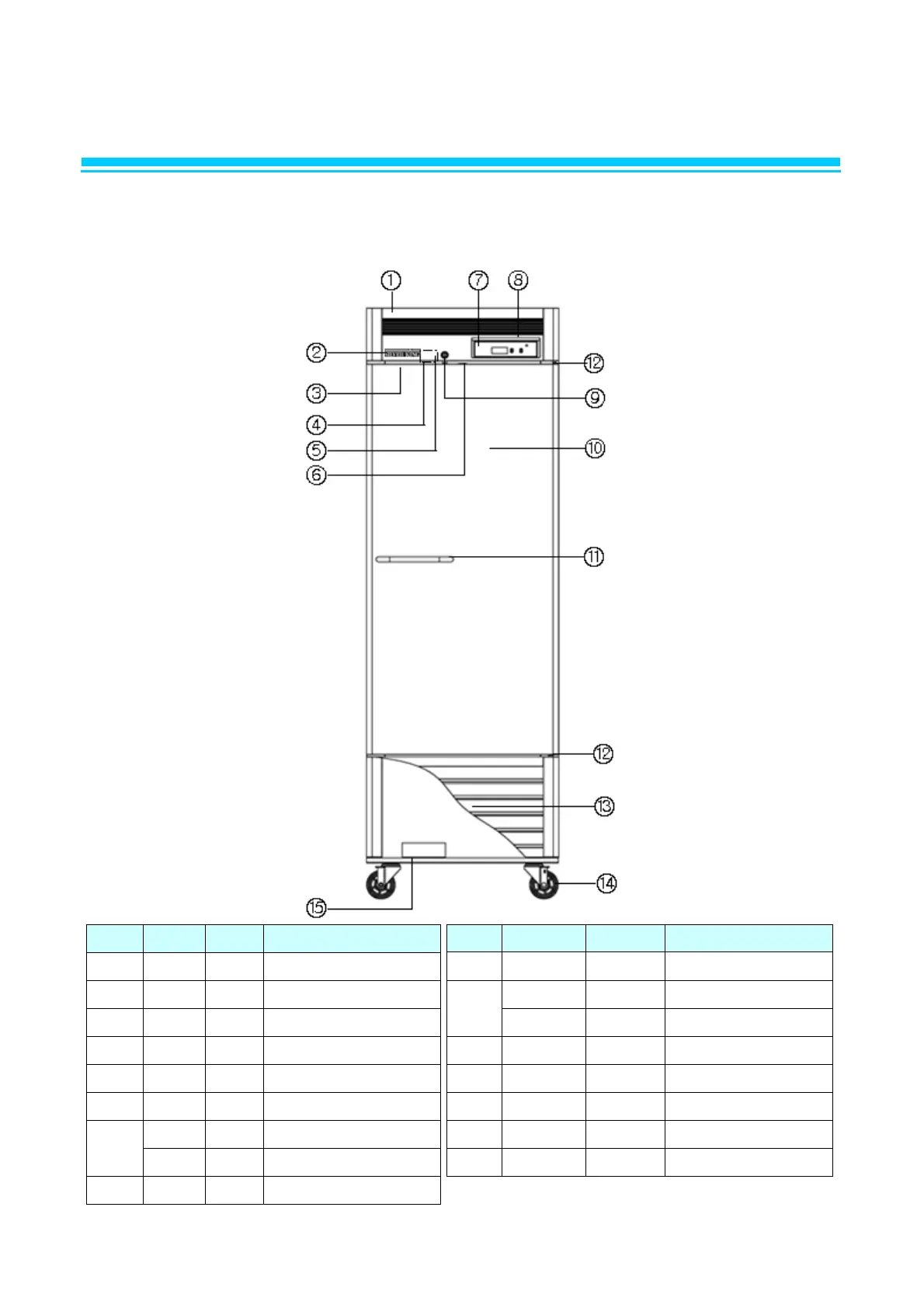

1-2. FRONT VIEW : SKBR1, SKBF1
Ballon SKBR1 SKBF1 Description
1 34371 34371 Top Frame Assembly
2 27264 27264 Silver King Decal
3 35069 35069 Switch-Power
4 N/A N/A Relay, Power
5 34375 34374 Main PCB
6 34379 34379 Switch-Door
7
34377 34377 Display PCB
35070 35071 Display Inlay
8 34376 34376 Control Board Housing
Ballon SKBR1 SKBF1 Description
9 34382 34382 Lock W/Keys
10
34900 34900 Door
34389 34389 Gasket-Solid Door
11 34160 34160 Door Handle
12 10327-38 10327-38 Hinge Kit
13 34383 34383 Grill Bottom
14 34325 34325 Caster Kit
15 35076 35076 Drain Pan Assy
