Silver King SKBR2 - Side View: Skbr1;Skbr2

- 6 -
1. FEATURE CHART

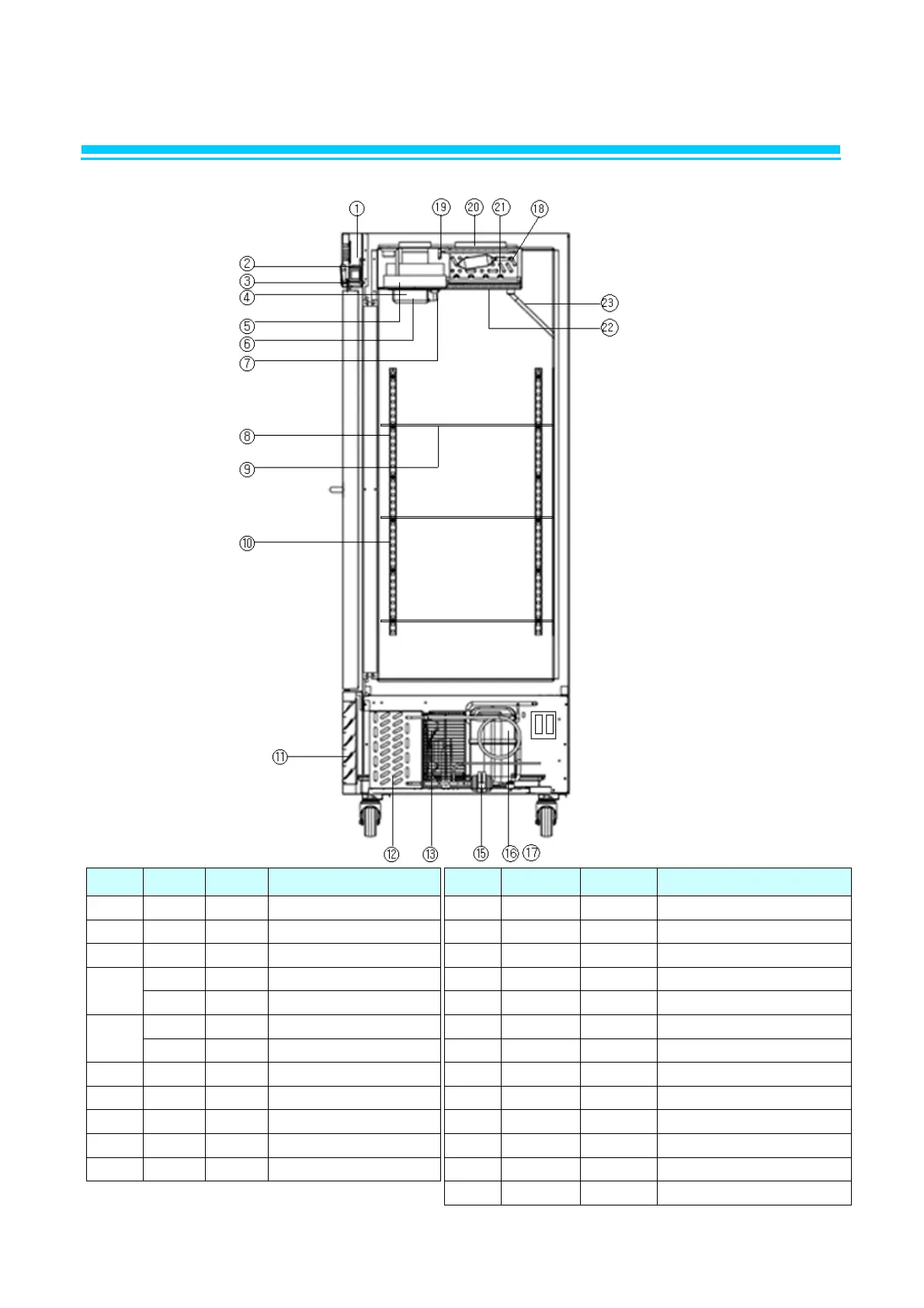

1-5. SIDE VIEW : SKBR1/SKBR2
Ballon SKBR1 SKBR2 Description
1 34371 34370 Top Frame Assembly
2 N/A 34378 Relay, Power
3 34375 34375 Main PCB
4
34395 34395 Lamp
34397 34397 Lamp Socket
5
34364 34364 Evaporator Fan Motor
34365 34365 Evaporator Fan Blade
6 34396 34396 Lamp Shield
7 35089 35089 Evaporator Fan Guard
8 34387 34387 Shelf Clip
9 34895 34896 Shelf
10 34388 34388 Shelf Standard
Ballon SKBR1 SKBR2 Description
11 34383 34384 Bottom Grill
12 34341 34341 Condenser Coil
13 34345 34345 Condenser Fan Motor
14 34346 34346 Condenser Fan Blade
15 34343 34343 Drier
16
16
10343-83 10343-82 Compressor
17 10344-83 13044-82 Compressor Elec Kit
18 34357 34355 Evaporator Coil
19 35078 35078 Refrigerator Sensor (Black)
20 34369 34369 Display Sensor (White)
21 n/a n/a
Evaporator Defrost Heater
22 n/a n/a
Evaporator Drain Pan Heater
23 34339 34339 Power Cord
