Silver King SKBR2 - Side View: Skbf1;Skbf2

- 8 -
1. FEATURE CHART

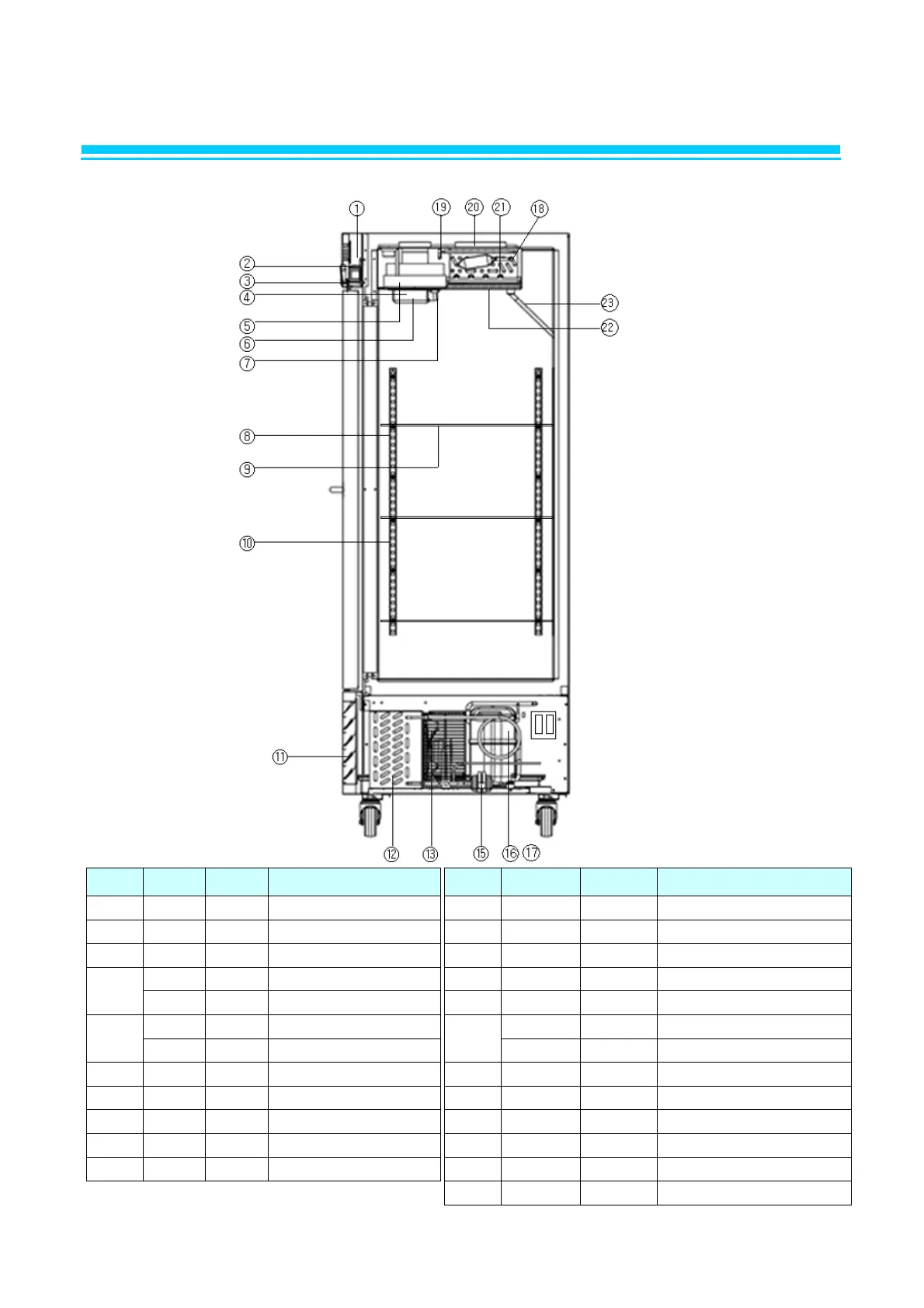

1-7. SIDE VIEW : SKBF1/SKBF2
Ballon SKBF1 SKBF2 Description
1 34371 34370 Top Frame Assembly
2 N/A 34378 Relay, Power
3 34374 34374 Main PCB
4
34395 34395 Lamp
34397 34397 Lamp Socket
5
34364 34364 Evaporator Fan Motor
34365 34365 Evaporator Fan Blade
6 34396 34396 Lamp Shield
7 35089 35089 Evaporator Fan Guard
8 34387 34387 Shelf Clip
9 34895 34896 Shelf
10 34388 34388 Shelf Standard
Ballon SKBF1 SKBF2 Description
11 34383 34384 Bottom Grill
12 34341 34340 Condenser Coil
13 34345 34345 Condenser Fan Motor
14 34346 34346 Condenser Fan Blade
15 34343 34344 Drier
16
16
10343-82 10343-84 Compressor
10344-82 10344-84 Compressor Elec Kit
18 34356 34354 Evaporator Coil
19 34367 34367 Freezer Sensor (Yellow)
20 34368 34368 Defrost Sensor (Black)
21 34359 34358
Evaporator Defrost Heater
22 34361 34360
Evaporator Drain Pan Heater
23 34339 34339 Power Cord
