Folding & Installation

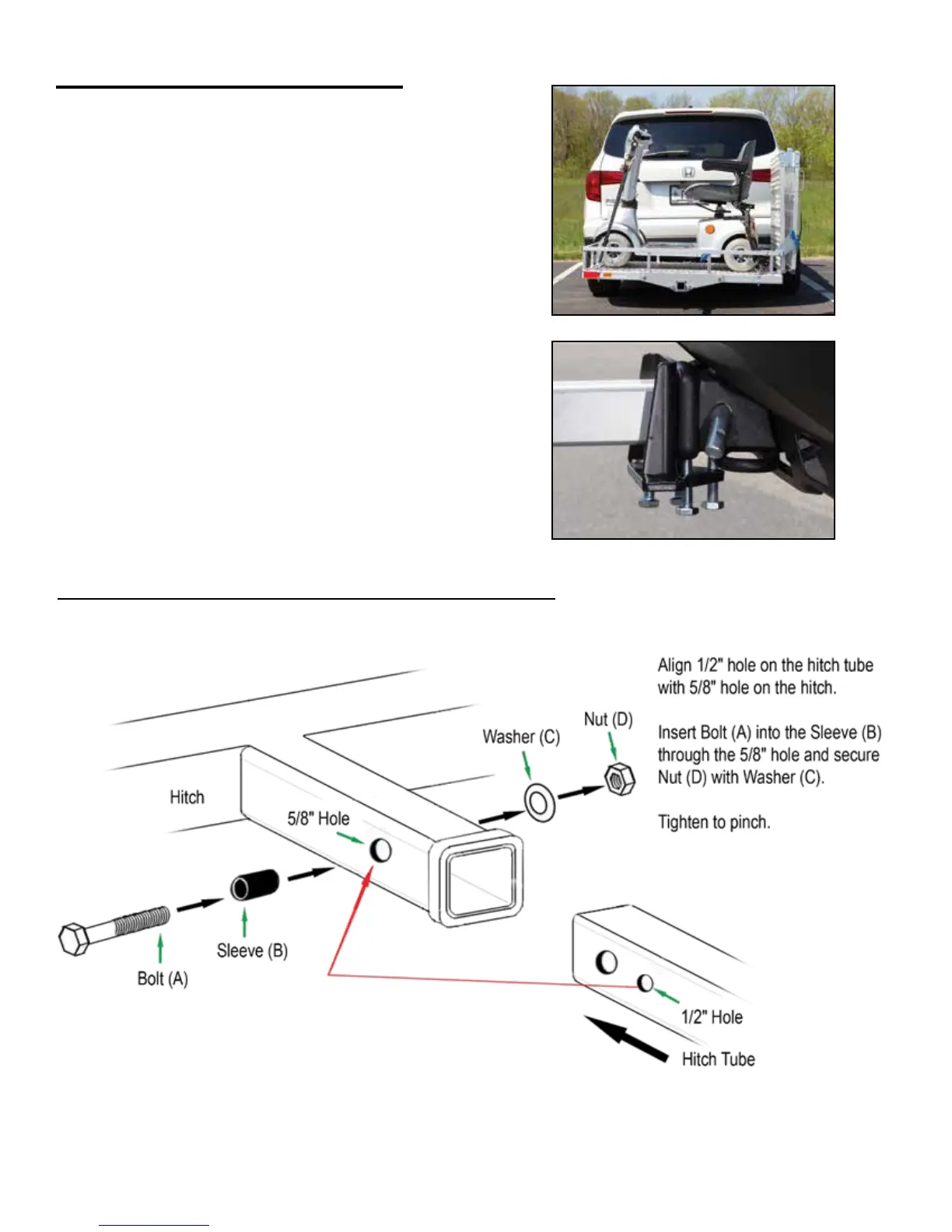

Optional Pinch Bolt Assembly (Part #22)
To fold the ramp for travel when loaded, pull the ramp
handle up. Lock the ramp in place with the spring pull
pins. One spring pull pin should remain between the
ramp halves while the other remains on the outside
area to prevent it from falling.
Slide the anti-tilt bracket (25) over the carrier hitch tube
with the at side facing towards the vehicle. Insert the
carrier into the trailer hitch, install the hitch pin (23) or
pinch bolt (22), then tighten the four anti-tilt bolts even-
ly with a 17mm wrench. They will pinch the bracket on
the collar and hitch, preventing excessive movement of
the carrier.
Insert the carrier into the hitch and install the pinch bolt assembly.
