Adjust the leveler bolt to align
pin holes. The pull pin should
be able to be removed or in-
stalled without binding if prop-
erly adjusted. Tighten jam nuts
when properly aligned using a
17mm or 11/16" wrench.
Remove the pull pin to fold the
carrier vertically. Replace the
pull pin in the top pin hole to
secure the carrier in the verti-
cal position.
When folded vertically, the pull pin and pin
clip will hold the carrier in place, which is
great for travel or leaving the carrier in the
hitch when there is limited room for storage in
a garage.

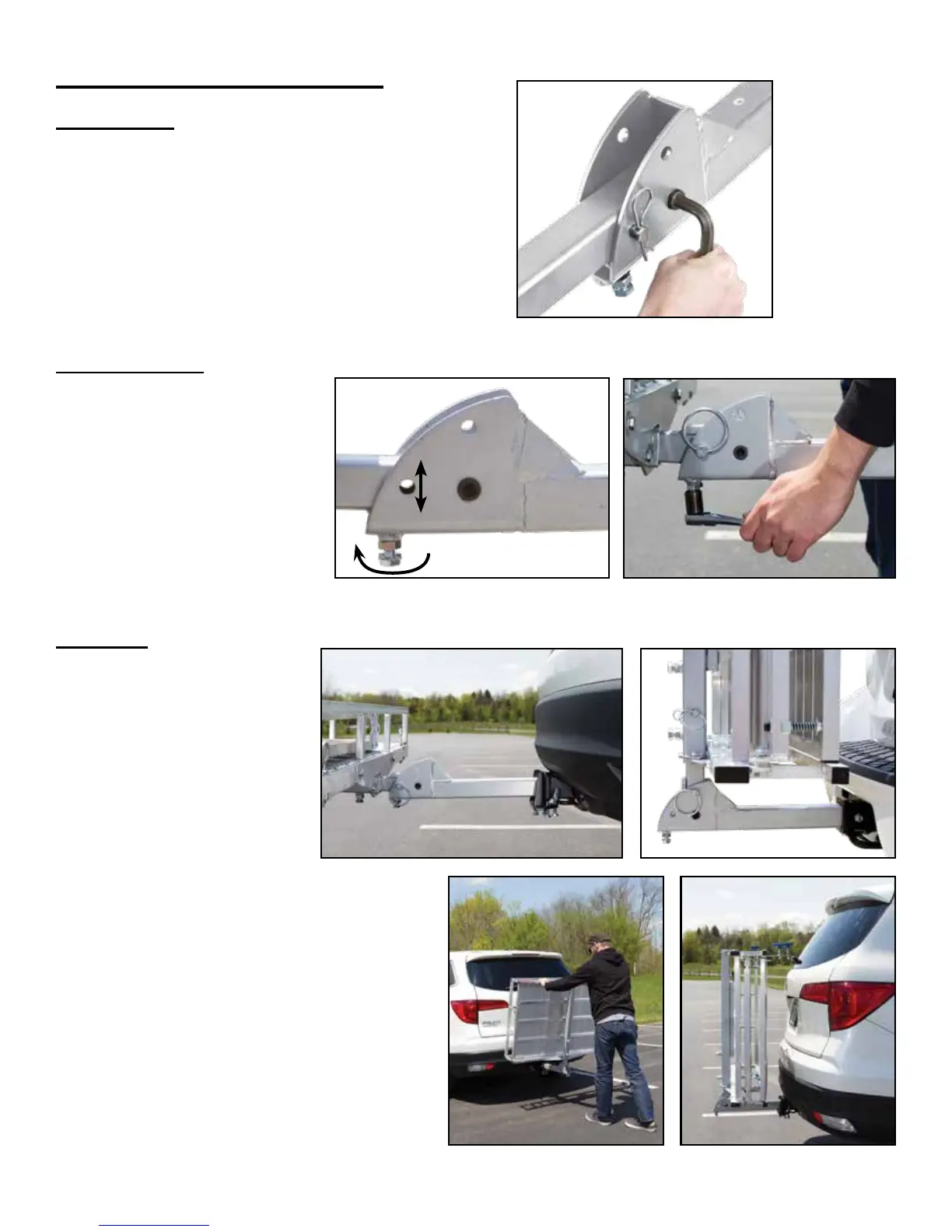

Carrier Adjustments
Folding
Leveler Bolt
Pivot Bolt
Tighten the hex head pivot bolt with a 10mm Allen
wrench to eliminate side-to-side wobble of the hitch
carrier. DO NOT over-tighten. If the bolt is over-tight-
ened, the carrier will not be able to pivot or swing up.
