Assembly

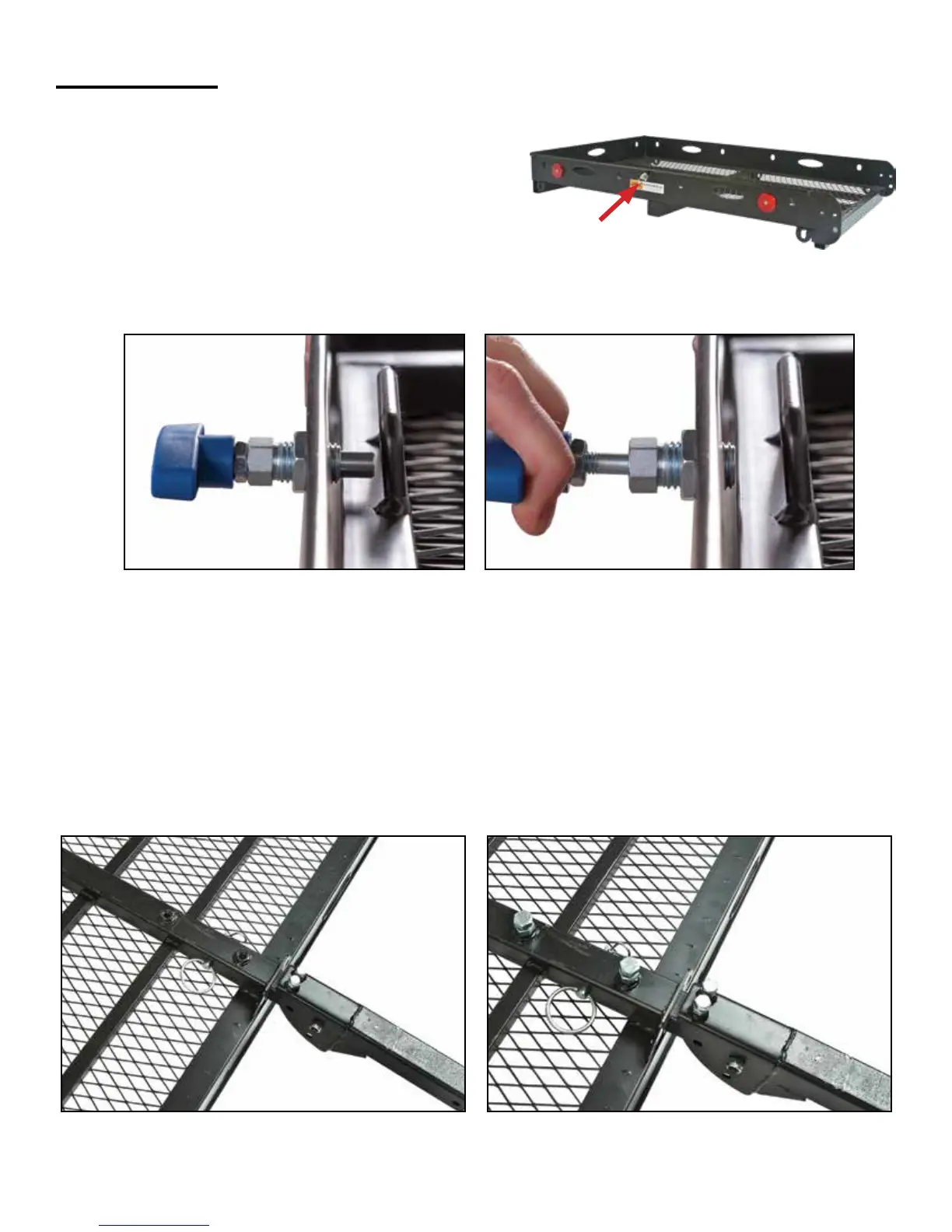

Step 1. Install the spring pull pin (14) into the front of
the carrier basket (20). Allow the spring pull pin (14) to
partially cover the edge of the ramp (21).
Adjust the spring pull pin (14) with enough room that
when pulled back, the ramp (21) can be lifted out of
the carrier basket (20). Securely tighten jam nut.
Step 2. Flip the carrier basket (20) upside down and slide the hitch tube assembly into the center
support tube. Align the holes and insert the pin with clip (16). Install two bolts (1) with nuts (2) and
tighten until seated using a 7/8" wrench. Do not over-tighten.
Note: To properly tighten the bolts (1) with jam nuts (2), rst thread the jam nut counterclockwise up
to the head of the bolt. Fully tighten the bolt into the carrier tube. Then tighten the jam nut clockwise
against the carrier tube to secure the bolt.
Fig. 1a
Fig. 1b Fig. 1c
Fig. 2b
Fig. 2a
