Silver Spring SC500-V3 - Step 8: Align and Secure Carrier

Page 6Rev. 060518
DiscountRamps.com • 1-888-651-3431

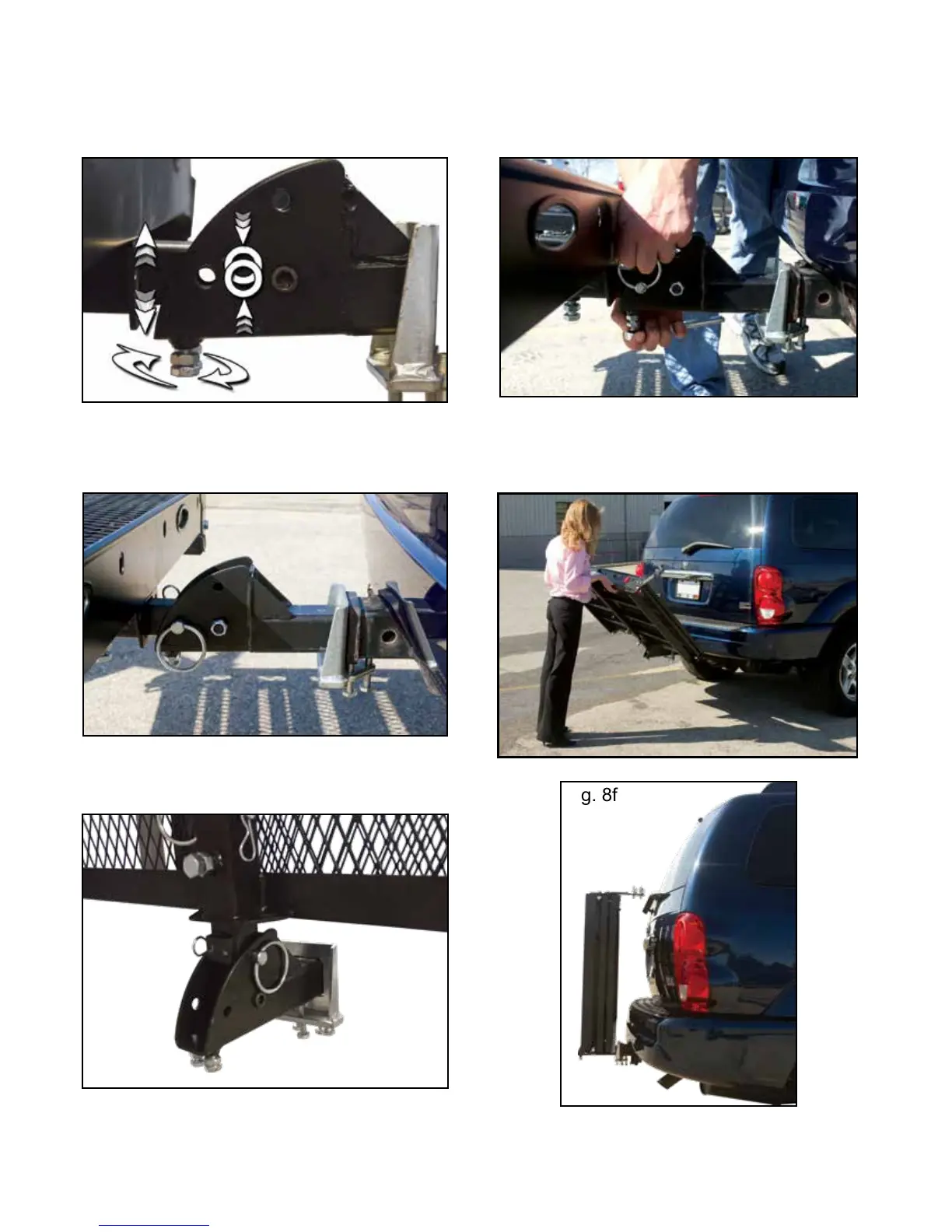

Step 8. Adjust the leveler bolt to align the pin holes. The pin with clip (16) should be able to be re-
moved/installed without binding if properly adjusted. Tighten the jam nuts when properly aligned using
a 17mm or 11/16" wrench.
Remove the pin with clip (16) to fold the carrier vertically. Replace the pin (16) in the top pin hole to
secure the carrier in the vertical position.
Fig. 8c Fig. 8d
Fig. 8e
Fig. 8f
Fig. 8a Fig. 8b
