Step 5. (Preferred option) Slide the anti-tilt locking
device (17) tight up against the hitch receiver. Insert
a hitch pin (10) or pinch bolt (9) and tighten the
bolts using a 17mm wrench.
Step 6. (2nd option) Insert the carrier into the hitch and install the pinch bolt assembly.
Step 7. Tighten the hex head pivot bolt (7) with a 10mm
Allen wrench to eliminate side-to-side wobble of the hitch
carrier. DO NOT over-tighten. If the bolt is over-tightened,
the carrier will not be able to pivot or swing up.
It is required to install either the included anti-tilt locking device (Step 5) or pinch bolt (Step 6).

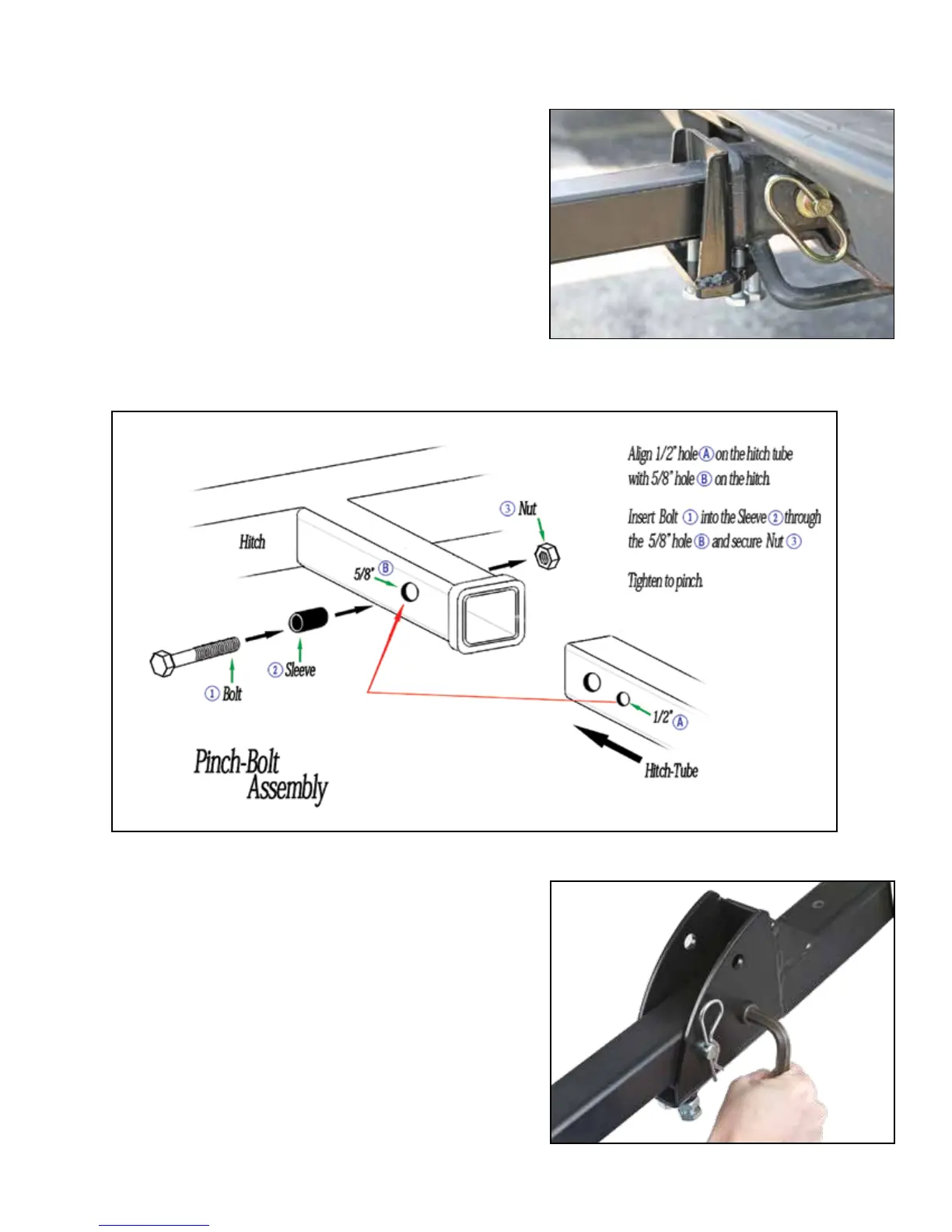

Fig. 5
Fig. 6
Fig. 7
