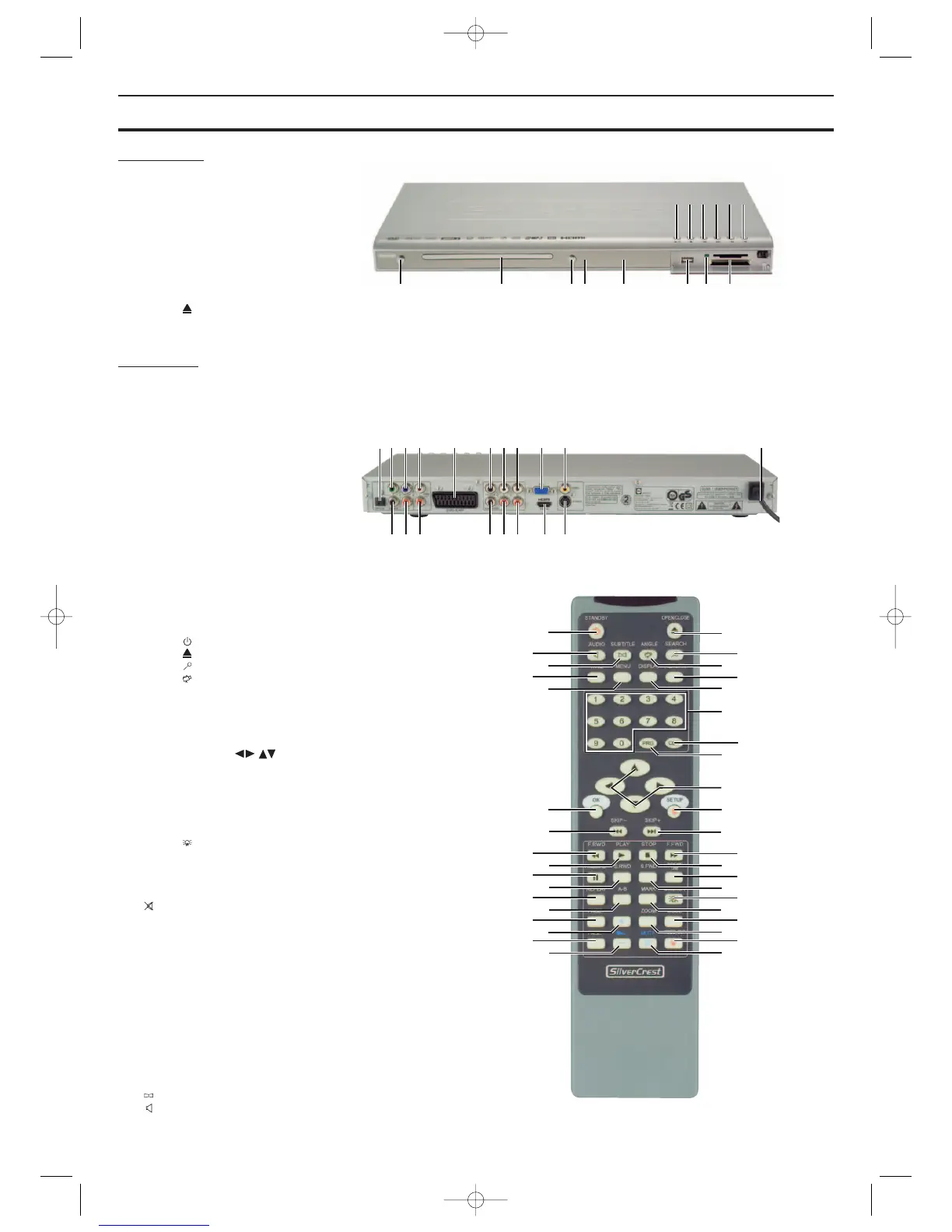

Operating controls and connections
Front panel
q Button/ (Play/Pause)
w Button(Stop)
e Button(Skip backwards)
r Button(Skip forward)
t Button(Scan
y Button(Scan forward) backwards)
u Memory card slots
i Pilot lamp
o USB port
a Display
s IR remote sensor
d Button (Open/Close)
f Disc tray
g Button ON/OFF
Rear panel
h Digital OUT socket "Optical"
j Socket "Y"
k Socket "Pb/Cb"
l Stereo cinch socket "L"
; "Euro Scart" socket
2) Surround "Centre" cinch socket
2! Surround cinch socket "SL"
2@ Surround cinch socket "FL"
2# "VGA OUT" Socket
2$ "Video Out" cinch socket
2% Mains cable with power plug
2^ "S Video Out" socket
2& "HDMI OUT" socket
2* Surround "FR" cinch socket
2( Surround "SR" cinch socket
3) Surround "Subwoofer" cinch socket
3! Stereo cinch socket "L"
3@ "Pr/Cr" cinch socket
3# Digital Out "Coaxial" socket
Remote control
q Button Standby
w Button (Open/Close)
e Button Search (Select time position)
r Button Angle (Change the camera perspective)
t Return button
y Display button (Superimpose disc information)
u Number buttons 0 to 9 (Number input 0-9)
i CLR button (Delete input)
o PRG button (Superimpose the programme menu)
a Control buttons
s Setup button (Superimpose OSD Menu)
d Skip + button (Skip forward)
f F.FWD button (Scan forward)
g (Stop) button
h DVD/Card/USB button (Show contents of memory card)
j S.FWD button
k Button Dimmer (Display brightness settings)
l Mark button (Bookmark function)
; Mode button (Superimpose playback mode)
2) Zoom button (Increase/reduce image size)
2! Video_Out button (Adjust video output)
2@ Mute button (Remove sound)
2# Vol - button (Reduce volume)
2$ Page - button
2% Vol + button (Increase volume)
2^ Page + button
2& A - B button (Repeat sequence)
2* Repeat button (Repeat playback)
2( S.RWD button
3) Pause/Step button
3! (Play) button
3@ button (Scan backwards)
3# Skip - button (Skip backwards)
3$ OK button (Confirm input)
3% Menu button (Superimpose DVD Menu)
3^ Title button (Superimpose DVD/CD contents)
3& Subtitle button (Superimpose subtitles)
3* button Audio (Change playback language)
Fig. 1 Front panel
Fig. 1.2 Rear panel
Fig. 2 Remote control
q
w
e
r
y
ui
oasdfg
hjkl ; 2)2!2@ 2# 2$
2^2&2*2(3)3!3@3#
w
e
r
t
y
u
i
o
a
s
d
f
g
h
k
;
2!
j
l
2)
2@
q
3&
3%
3$
3#
3@
3^
3*
3)
2*
2^
2$
3!
2(
2&
2%
2#
2%
t
