3. On R Series Storage Bin inspect its top
mounting gasket which should be flat with no
wrinkles, to provide a good sealing when the
CBT Top Cover is installed on top of it.
4. Place the CBT Top Cover on top of Storage
bin using care not to wrinkle or tear the gasket.
5 On the UBH Series Storage Bin unloose
the screws securing the S.S. Top Cover to the
storage bin and remove it
6. Lay out on the bin top the plan of the ice
machine as it will be located on the bin and cut an
opening in the bin top for the ice drop area; cover
the edges of the opening with vinyl tape.
7. Install the gasket-on the bin top-around ice
drop opening of the bin top; apply sealant along
the inside of the gasket.
8. Position and install the four aluminium front
to rear stiffeners (U shaped) paying attention to
the guideline shown on the drawing.
NOTE. Bin wall gasket must be cut to clear
the stiffener ends as shown on drawing.
Do not put any stiffeners crossing the ice
drop opening.
9. Install the bin top in its position onto the bin
top by:
- place the rear side of top against rear edge
of the bin
- lower the front of the top onto the stiffeners
- re-fit the screws previously removed as
per step 5
10. Install the Modular Flaker or Superflaker
onto the Top Cover of storage bin pay attention
to match the ice chute with the Bin Top opening.
D. ELECTRICAL CONNECTIONS
See data plate for current requirements to
determine wire size to be used for electrical
connections. All SIMAG icemakers require
a solid earth wire.
All SIMAG ice machines are supplied from
the factory completely pre-wired and require only
electrical power connections to the wire cord
provided at the rear of the unit.
CBT Top Covers
1. Follow the steps 1 and 2 above to unpack
the top cover.
2. Cut open the carton box and pull out the
CBT Top Cover.
3. On CBT 48/52 FMCD Top Covers, the ice
drop area must be cutted on the plastic cover in
the same position of the ice machine ice chute
opening.
C. LOCATION AND LEVELLING
WARNING. This Modular Flaker and
Superflaker is designed for indoor
installation only. Extended periods of
operation at temperature exceeding the
following limitations will constitute
misuse under the terms of the SIMAG
Manufacturer’s Limited Warranty resulting
in LOSS of warranty coverage.
1. Position the storage bin in the selected
permanent location.
Criteria for selection of location include:
a) Minimum room temperature 10°C (50°F)
and maximum room temperature 40°C (100°F).
b) Water inlet temperatures: minimum 5°C
(40°F) and maximum 35°C (90°F).
c) Well ventilated location for air cooled
models (clean the air cooled condenser at
frequent intervals).
d) Service access: adequate space must be
left for all service connections through the rear of
the ice maker. A minimum clearance of 15 cm
(6") must be left at the sides of the unit for routing
cooling air drawn into and exhausted out of the
compartment to maintain proper condensing
operation of air cooled models.
2. Level the Storage Bin Assy in both the left
to right and front to rear directions by means of
the adjustable legs.

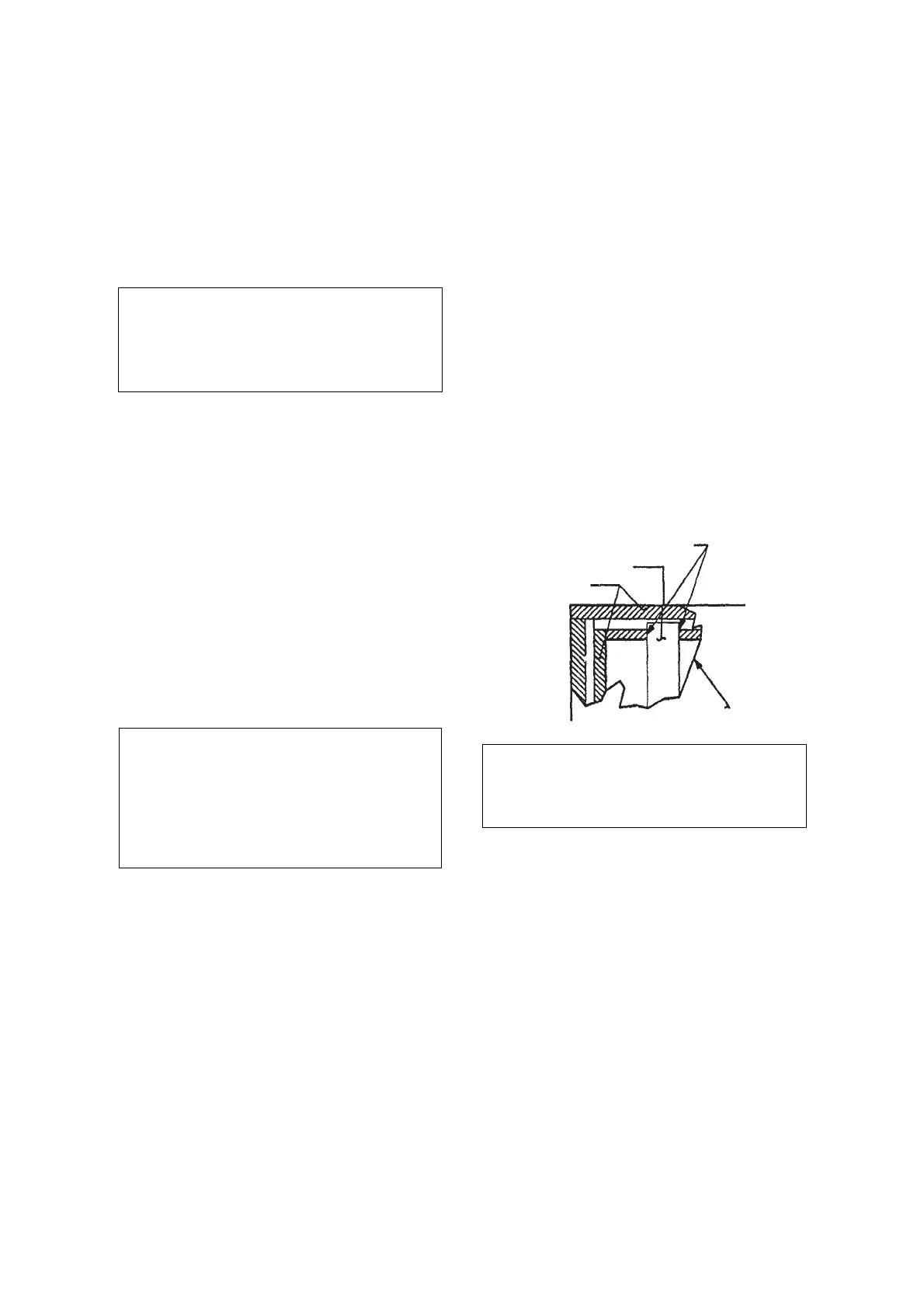

STIFFENER
CUT GASKET HERE
BIN WALL GAKET
TOP SHELL
Page 13
