FOR THE INSTALLER
INTRODUCTION
These instructions provide the specifications and
the step-by-step procedures for the installation,
start up and operation for the SIMAG Model
SV 145-225-325-395-545 Modular Cubers.
The Models SV145-225-325-395-545 Modular
Cubers are quality designed, engineering and
constructed, and are thoroughly tested icemaking
systems, providing the utmost in flexibility to fit
the needs of a particular user.
INSTALLATION NOTE: Allow 15 cm.
minimum space at sides and back for
ventilation and utility connections.

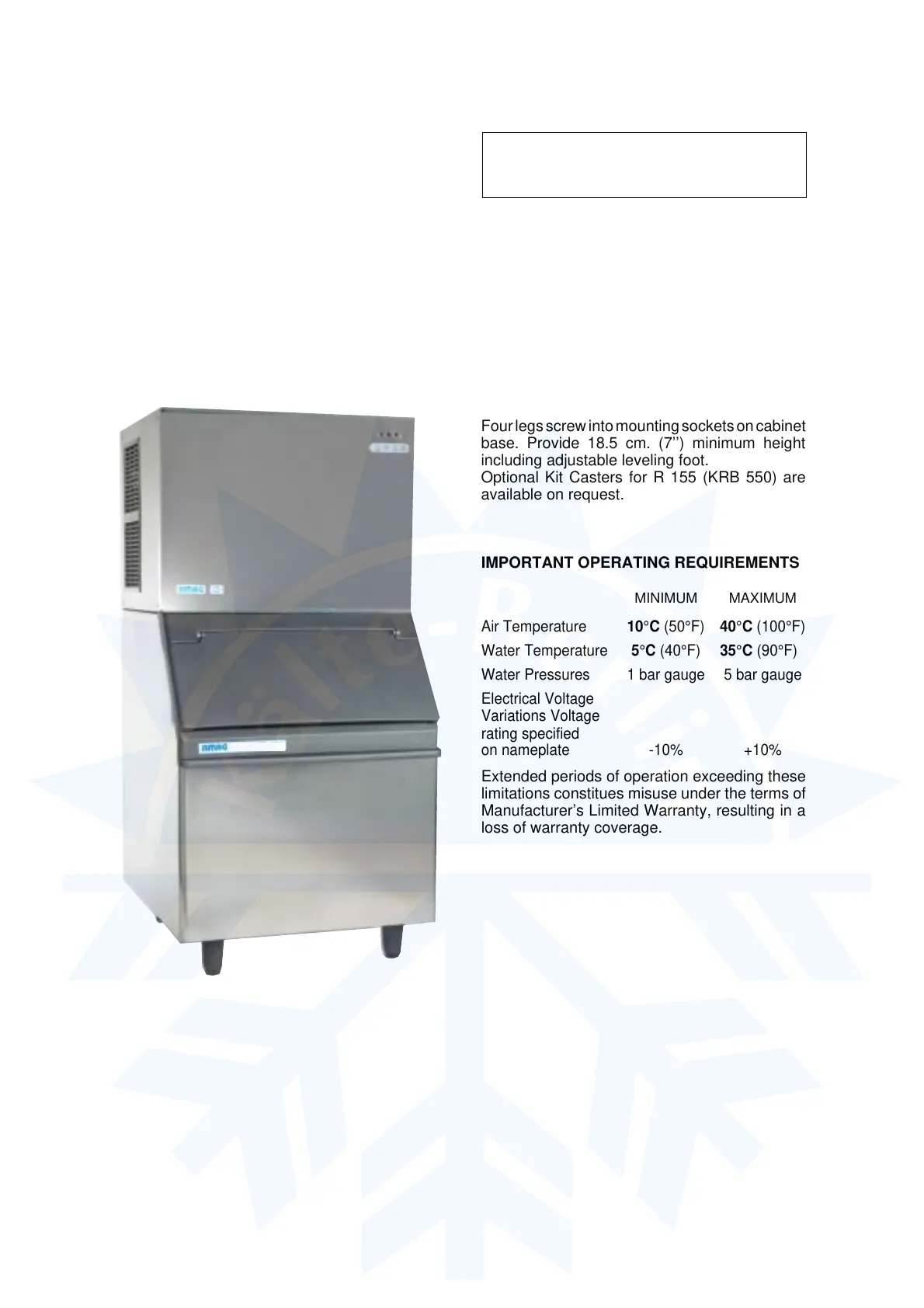

STORAGE BIN
The SV 145 stack on top of Simag bin model
R 85; the SV 225-325-395-545 stack onto SIMAG
bin model R 155.
Refrigerant R 404 A
Charge per nameplate rating.
STANDARD LEGS: Furnished with storage bin.
Four legs screw into mounting sockets on cabinet
base. Provide 18.5 cm. (7’’) minimum height
including adjustable leveling foot.
Optional Kit Casters for R 155 (KRB 550) are
available on request.
IMPORTANT OPERATING REQUIREMENTS
MINIMUM MAXIMUM
Air Temperature 10°C (50°F) 40°C (100°F)
Water Temperature 5°C (40°F) 35°C (90°F)0
Water Pressures 1 bar gauge 5 bar gauge
Electrical Voltage
Variations Voltage
rating specified
on nameplate -10% +10%
Extended periods of operation exceeding these
limitations constitues misuse under the terms of
Manufacturer’s Limited Warranty, resulting in a
loss of warranty coverage.
