Disch. Disch. Hi Suction Suction Amps Amps
Pressure Pressure Pressure Pressure Pressure
Compressor Compressor
Freeze Freeze CUT Beginning end Beginning end
max min OUT Freeze Freeze Freeze Freeze
SV 145 A 17,5 bar 14,0 bar 30 bar 4,3 bar 2,3 bar 15' 3,8 3,2
SV 145 W 16,5 bar 16,5 bar 30 bar 4,3 bar 2,4 bar 16' 3,6 3,1
SV 225 A 17,0 bar 15,0 bar 33 bar 3,6 bar 2,3 bar 16' 4,2 3,4
SV 225 W 16,2 bar 16,0 bar 33 bar 3,8 bar 2,5 bar 16' 3,9 3,3
SV 325 A 18,0 bar 16,0 bar 33 bar 2,9 bar 1,7 bar 11' 7,0 5,2
SV 325 W 16,5 bar 16,0 bar 33 bar 2,9 bar 1,7 bar 11' 6,5 5,2
SV 395 A 18,5 bar 15,5 bar 33 bar 2,9 bar 1,5 bar 11' 30" 3,9 3,0
SV 395 W 16,5 bar 16,5 bar 33 bar 2,9 bar 1,7 bar 11' 30" 3,4 2,6
SV 545 A 18,0 bar 15,5 bar 33 bar 3,2 bar 1,7 bar 11' 30" 4,0 3,1
SV 545 W 16,5 bar 16,5 bar 33 bar 3,2 bar 1,9 bar 12' 3,5 2,7
Freezing
time
MODEL
Refrigerant metering device
Thermostatic expansion valve.

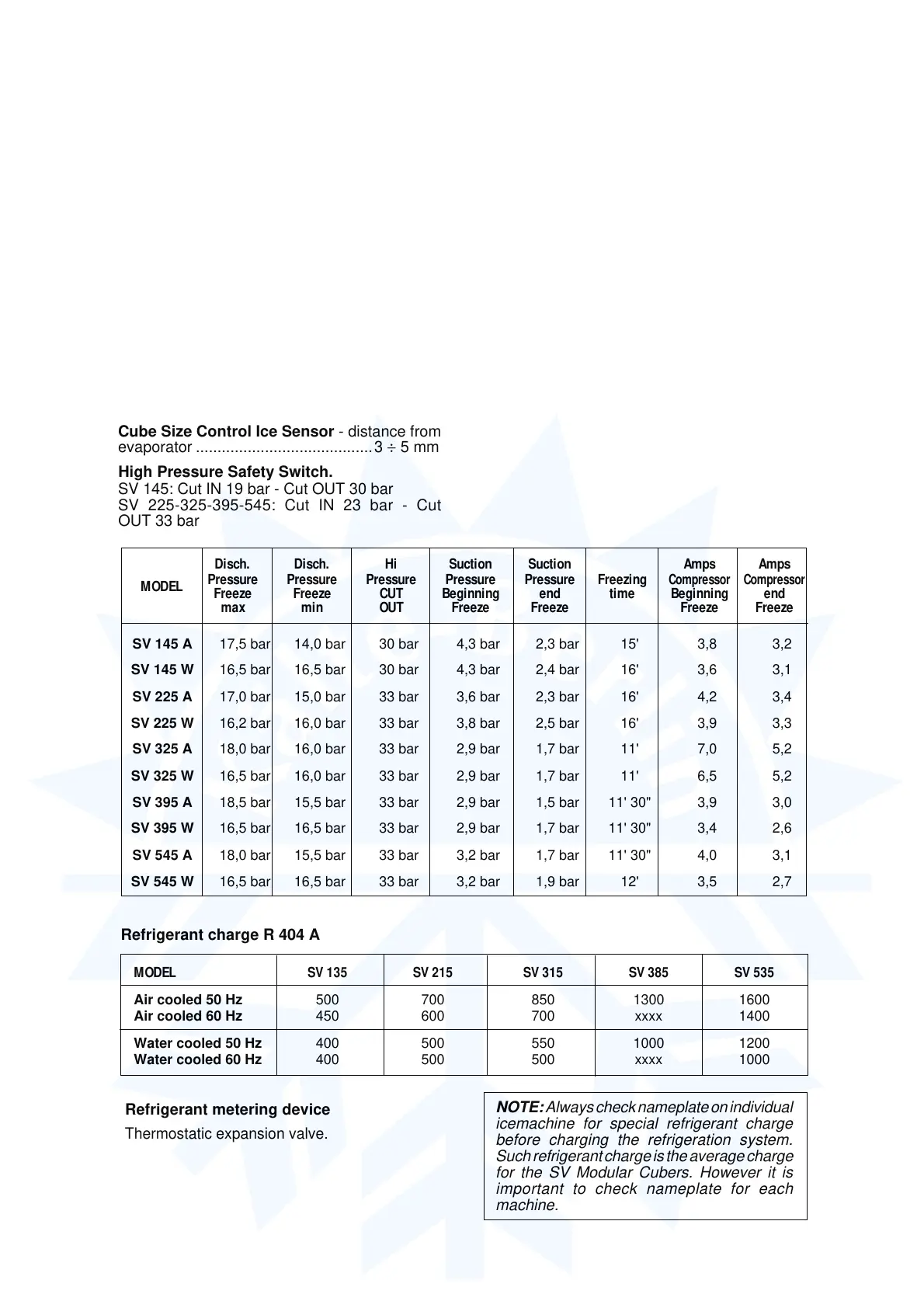

SERVICE SPECIFICATION
In servicing a machine, it is often, useful to
compare that individual units operating
characteristics to those of a normally operating
machine. The data that follows gives those
characteristics; however, be aware that these
values are for NEW, CLEAN machine operating
at 21 °C ambient and 15 °C water. USE THESE
NUMBERS AS A GUIDELINE ONLY.
COMPONENT
Reservoir level
SV 145-225-325 ............................80 ÷ 85 mm
SV 395-545 ...............................100 ÷ 105 mm
Cube Size Control Ice Sensor - distance from
evaporator .........................................3 ÷ 5 mm
High Pressure Safety Switch.
SV 145: Cut IN 19 bar - Cut OUT 30 bar
SV 225-325-395-545: Cut IN 23 bar - Cut
OUT 33 bar
OPERATING CHARACTERISTICS
On air-cooled models during the freezing cycle,
the discharge pressure is maintained between
two preset values by means of fan control
(condenser sensor); and at the same time, the
suction pressure will also decline reaching it’s
lowest point just before harvest. Compressor
amps experience a similar drop.
On water-cooled, the discharge pressure is
constantly, maintained during the freeze cycle by
the water regulating valve. However, suction
pressure and compressor amps, will still decline
as the machine freezes ice.
NOTE: Always check nameplate on individual
icemachine for special refrigerant charge
before charging the refrigeration system.
Such refrigerant charge is the average charge
for the SV Modular Cubers. However it is
important to check nameplate for each
machine.
Refrigerant charge R 404 A
MODEL SV 135 SV 215 SV 315 SV 385 SV 535
Air cooled 50 Hz 500 700 850 1300 1600
Air cooled 60 Hz 450 600 700 xxxx 1400
Water cooled 50 Hz 400 500 550 1000 1200
Water cooled 60 Hz 400 500 500 xxxx 1000
