scorpION3 5200969 Rev 4 8
Table 1. RJ-11 modular connector user connections
The fault alarm may be remotely monitored using the fault output
jack on the end of the bar. The output jack is a 3.5 mm (1/8”) mono
phone jack connected to an opto-isolated transistor inside the bar.
The tip of the phone jack is positive (collector) and the sleeve of the
phone jack is negative (emitter). The opto-isolated transistor may
be set normally open (N.O.) or normally closed (N.C.) by changing
The scorpION3 is internally fused to protect the user’s power
supply during this type of setup.
Le scorpION3 est à fusible interne afin de protéger l'utilisateur
d'alimentation pendant ce type de configuration.

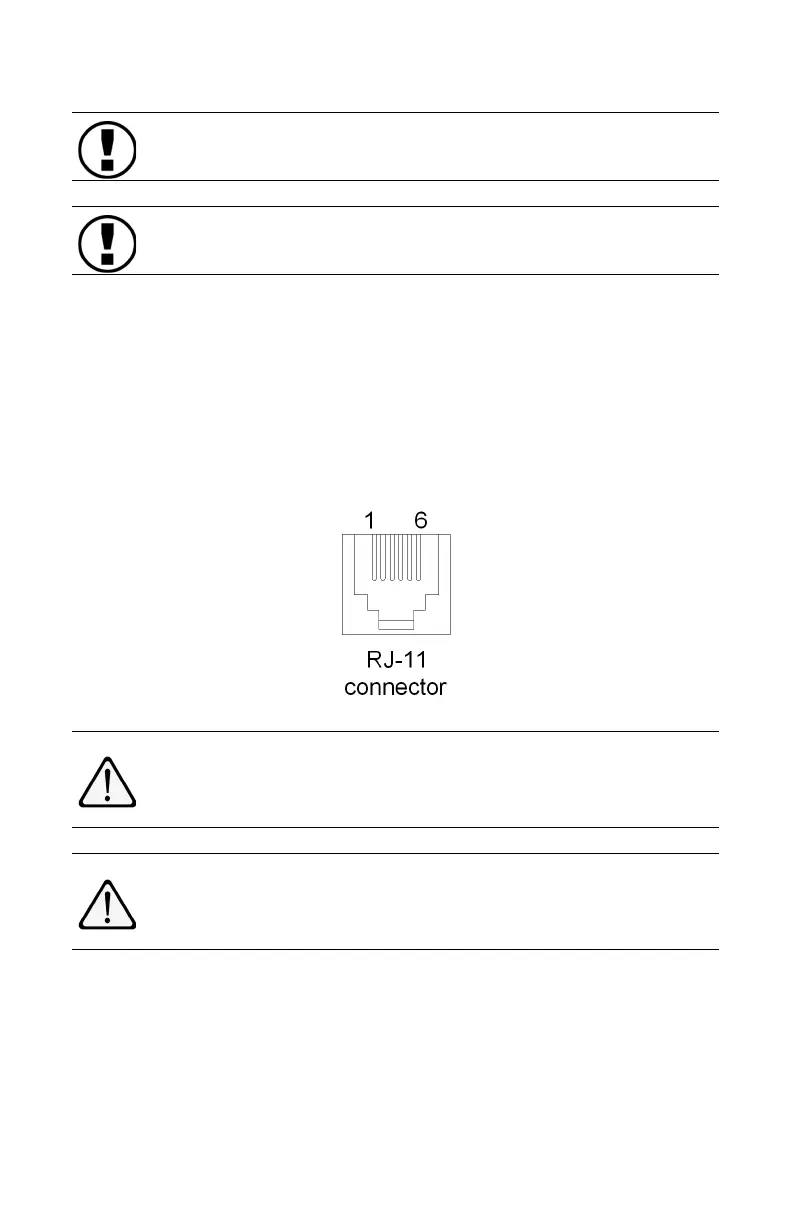

RJ-11 MODULAR CONNECTOR
PIN NUMBER 1 2 3 4 5 6
CONNECTION +24 VDC N.C. GND GND N.C. +24 VDC
N.C. = No Connection Permitted
Connections or grounding of pins 2 & 5 on the modular
connector is not permitted and may result in malfunction or
damage to the system.
Connexions ou de mise à la terre de broches 2 & 5 sur le
connecteur modulaire n'est pas autorisé et peut entraîner des
dysfonctionnements ou d'endommager le système.
