Note: Care should be taken if that plastic tray is not heat-resistant, the modules should be taken
out for preheating, and otherwise the tray may be damaged by high-temperature heating.
6.5 Stencil Foil Design Recommendation
The recommended thickness of stencil foil is 0.15mm.

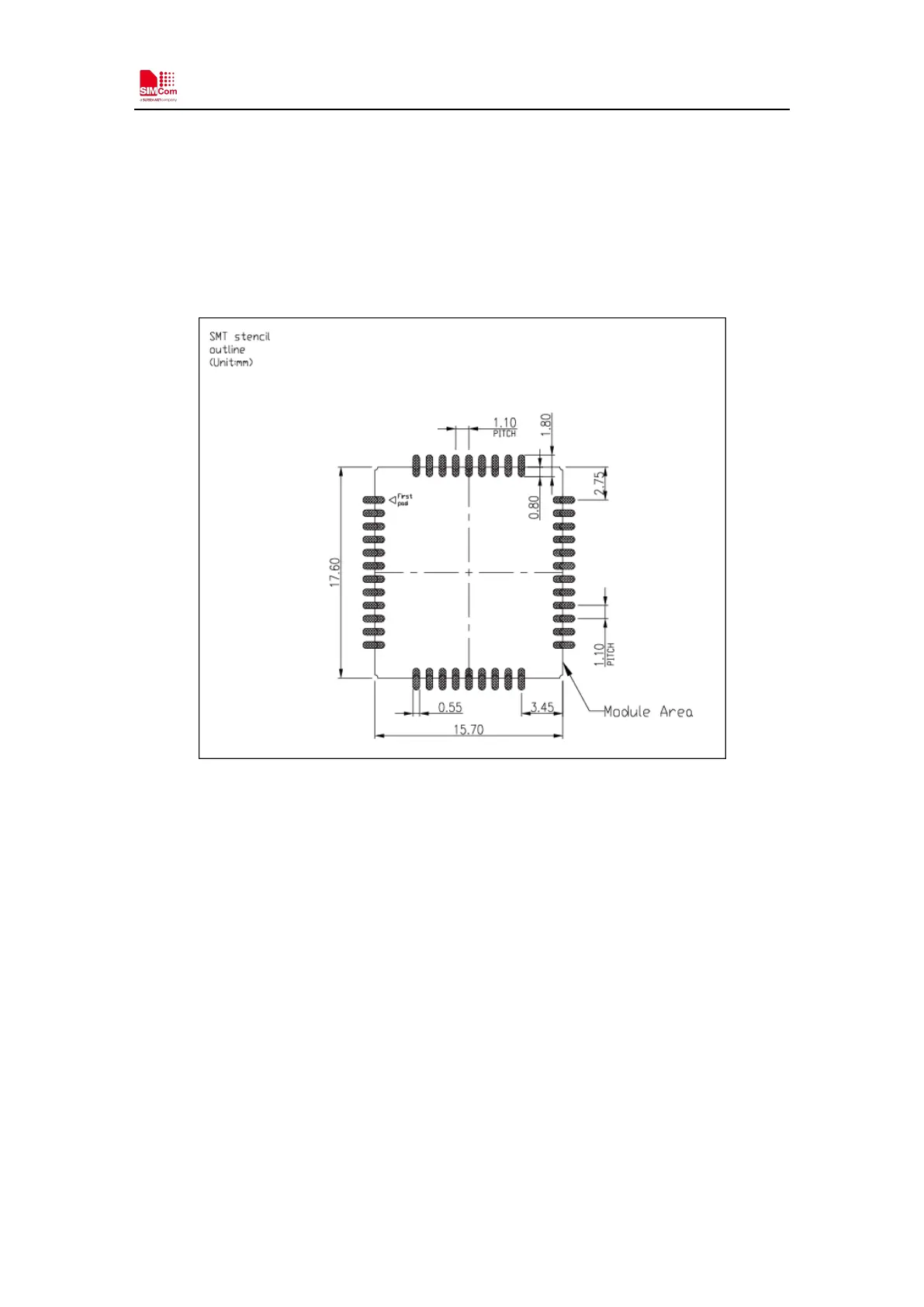

Figure 27: Recommended SMT stencil footprint outline
