SIM7022-EVB User Guide V1.00
www.simcom.com
14
/
33
Feature 6: Module power supply reference design

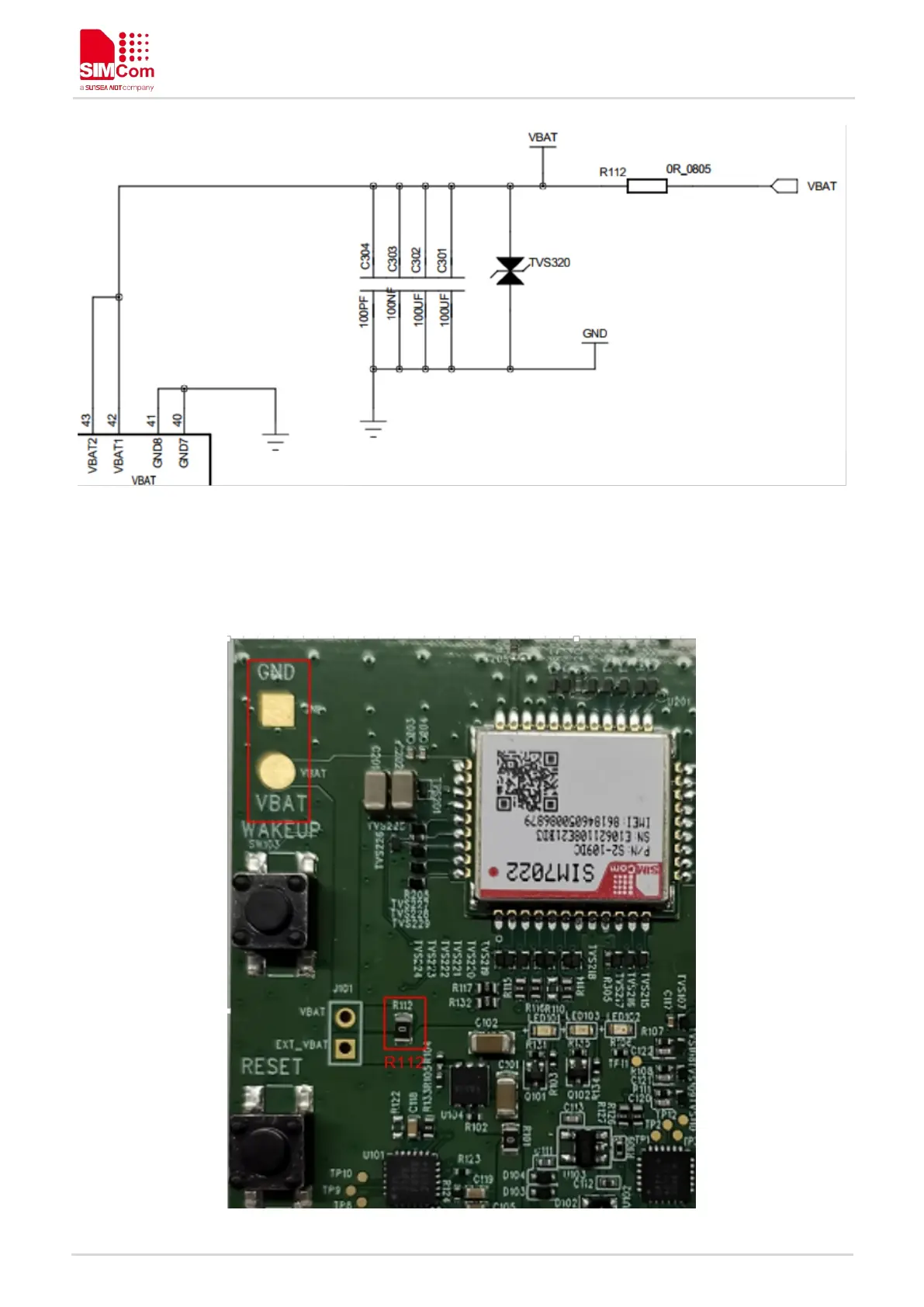

The test points of VBAT and GND of the module are shown in the figure below. If the module needs to be
powered separately, the resistance of R112 should be removed first, and then the VBAT and GND test
points should be externally supplied with power.
