SIM7022-EVB User Guide V1.00
www.simcom.com
13
/
33

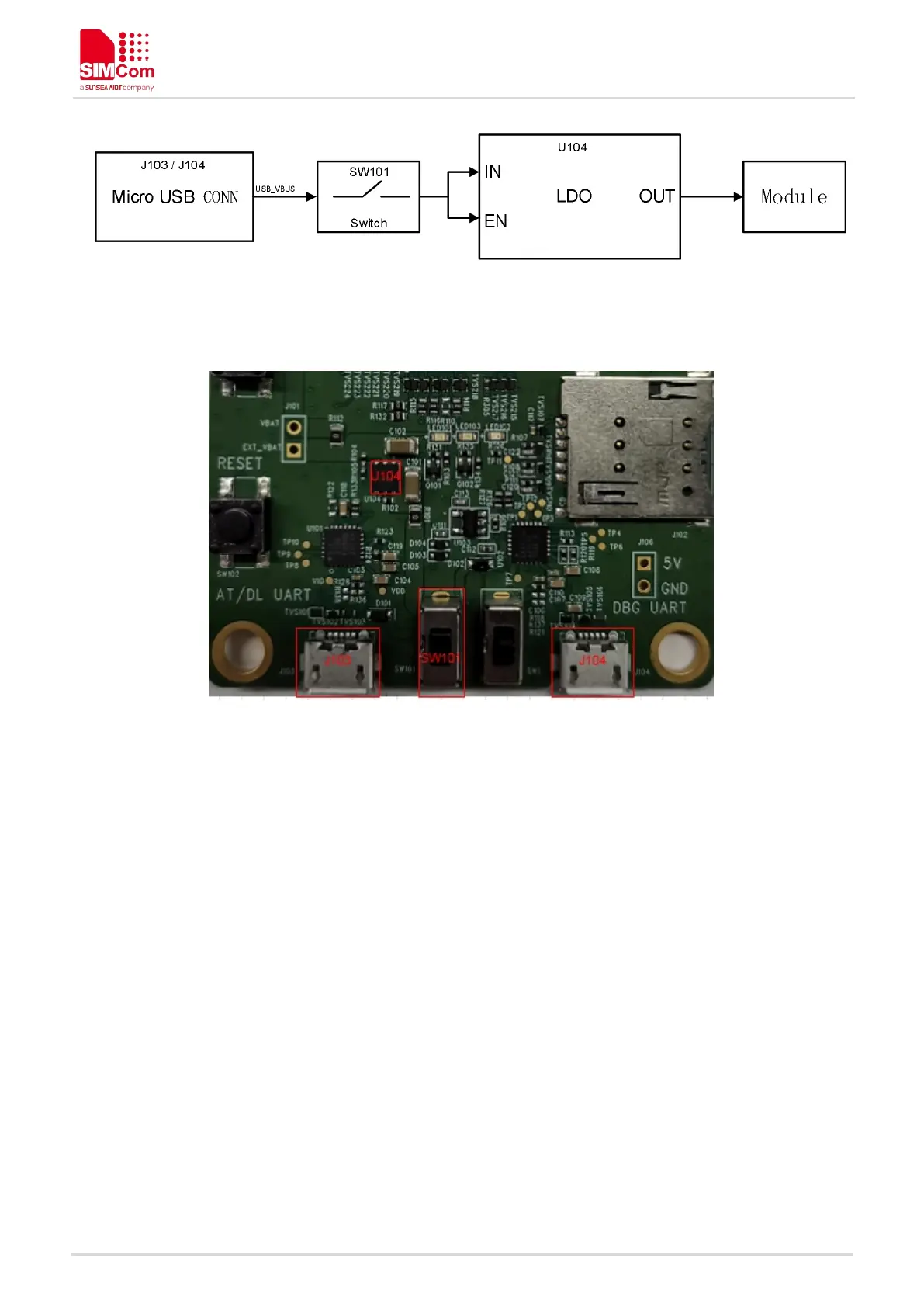

Feature 4: EVBPower supply block diagram
Feature 5: EVB power interface
2.1.2Separate Power Supply
The module power supply reference design is shown in the figure below.
