SimCom T900 - 4 Installation

Smart Machine Smart Decision

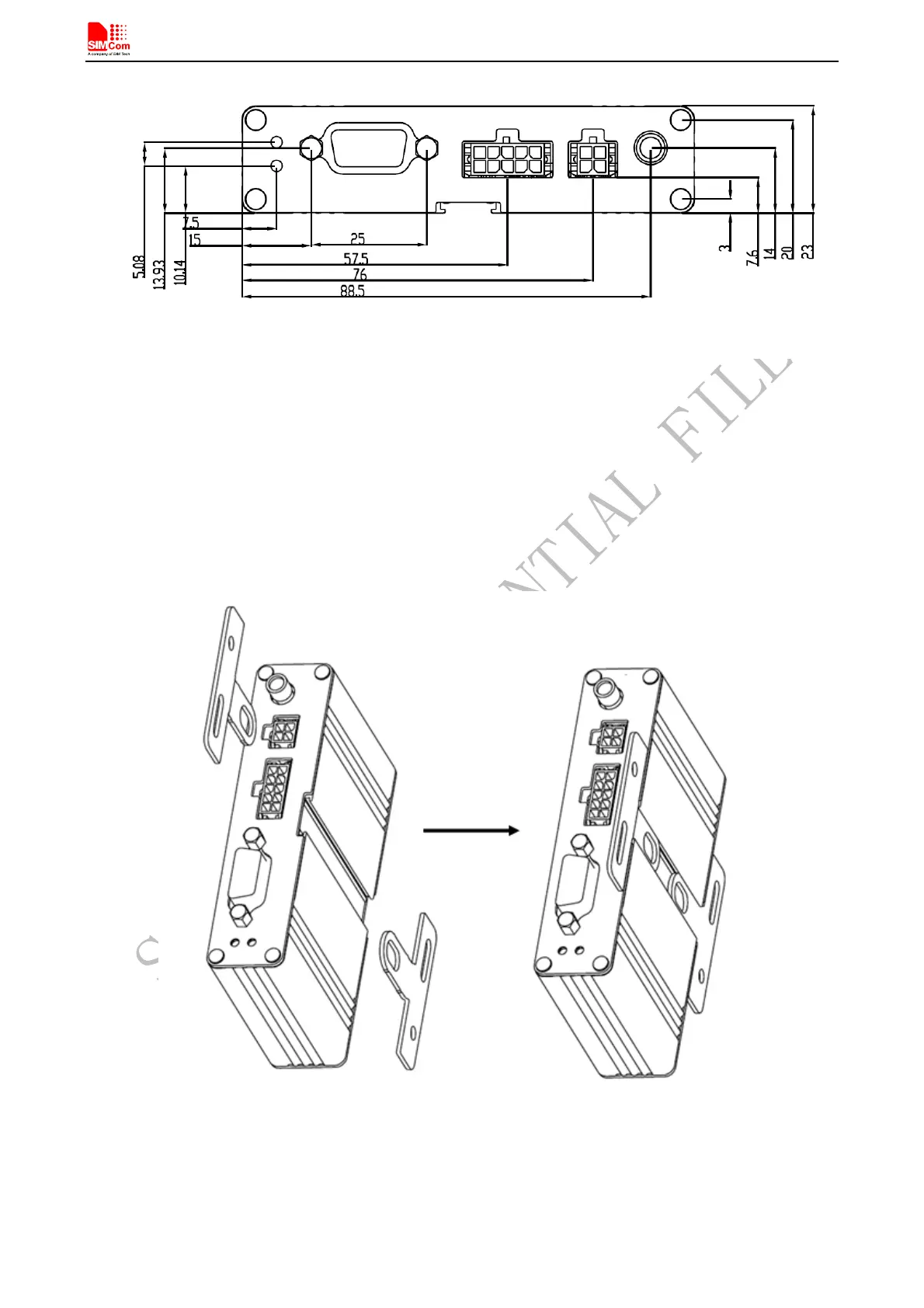

Figure 2: Mechanical dimensions of T900
（Unit: mm）
4 Installation
The terminal can be fixed by two kickstands (Optional) that provided by SIMCom, the following figure is the
illustration.
Figure 3: Installation of the terminal
T900_User Guide_V1.02 10 2013-05-22
