10. Wiring Diagram

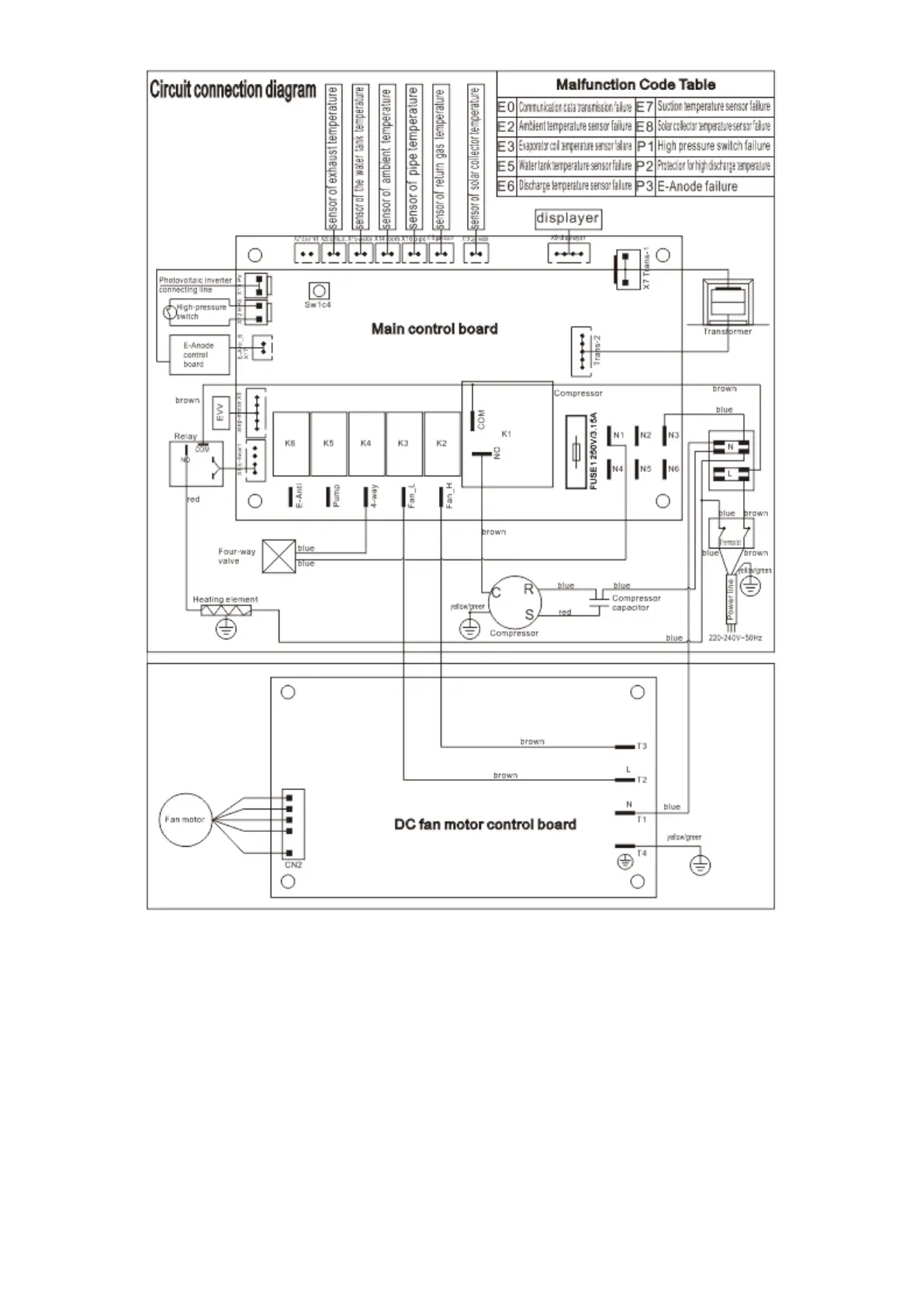

Fig.8 Series Wiring diagram
Type and rating of fuse: cartridge fuse-link, 3.15AL250V.
ATTENTION
This diagram is for reference only. When the content of the above diagram differs from that on the
appliance, please refer to the electrical diagram in the electric control box of the appliance.
