84
9
C53
C33
C43
C83
11
10
3
1
1
3
3 2
1
2
6
1
3
11
10
3
7
3
3
3
6
2
3
3
max 0,5 m
max 0,5 m
C13
4
3
2
6
5
3
1
12
12
12
C13
3
2
3
1
14
12
13
12

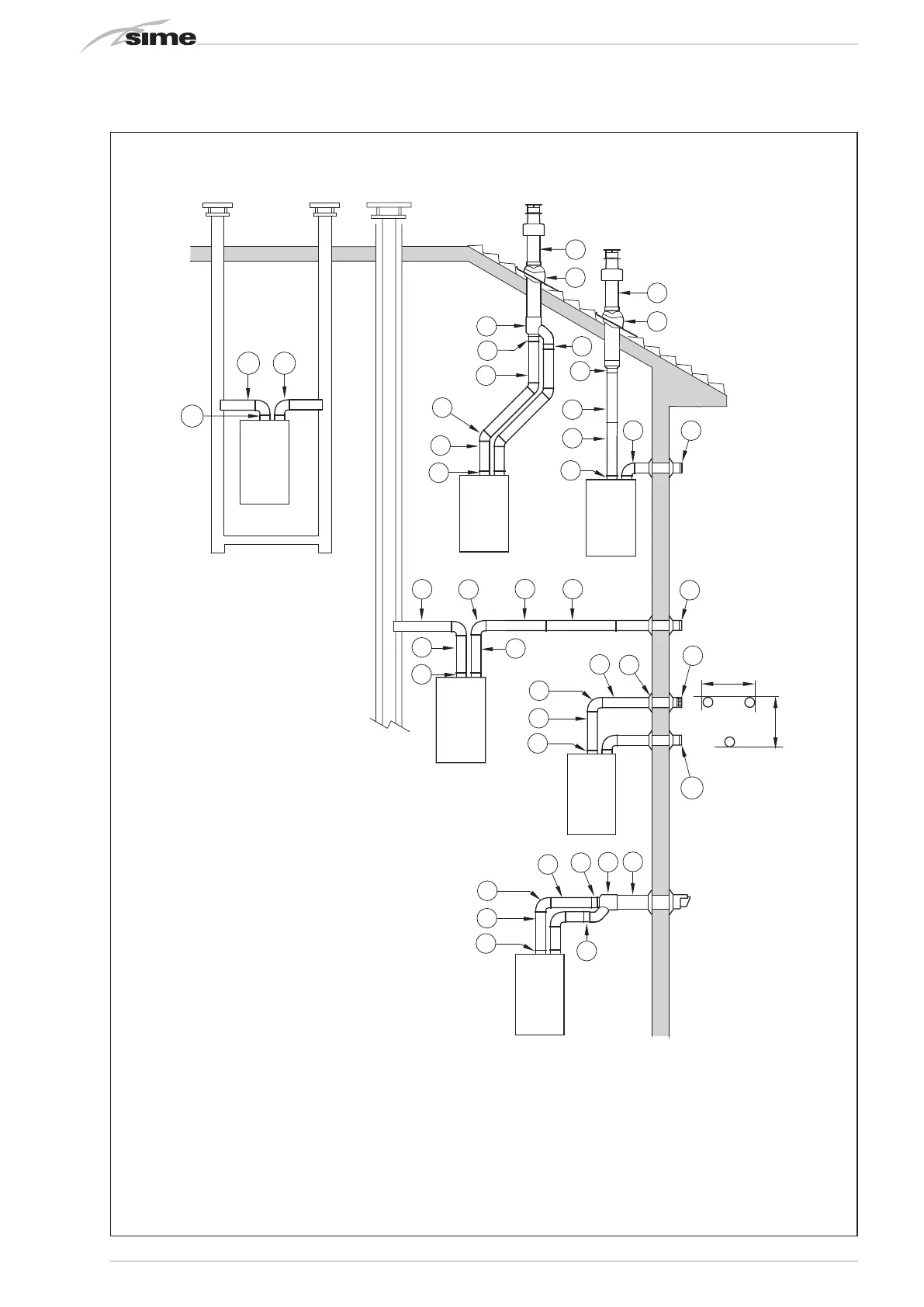

Fig. 9
LIST OF ø 80 ACCESSORIES
1 Coaxial duct kit code 8089912
2 Additional 90° MF curve code 8077450 (6 pz.)
3 a Extension L. 1000 code 8077351 (6 pz.)
3 b Extension L. 500 code 8077350 (6 pz.)
4 Exhaust terminal, code 8089501
5 Kit with internal/external ring nuts, code 8091500
6 Suction terminal, code 8089500
7 Additional 45° MF curve code 8077451(6 pz.)
9 Manifold, code 8091400
10 Tile for joint code 8091300
11 Terminal for roof exit L. 1381 code 8091204
12 --------
13 Union suction/exhaust code 8091401
14 Coaxial exhaust ø 80/125 L. 885 code 8091210
NOTE
Before connecting accessories, it is always
advisable to lubricate the internal part of the
gaskets with silicon products. Avoid using
oils and greases.
LIST OF ø 60 ACCESSORIES
1 Coaxial duct kit code 8089913
2 a Additional 90° MF curve code code 8089921
2 b MF 90° bend with suction tap, code 8089924
3 Extension L. 1000 code 8089920
4 Exhaust terminal, code 8089541
5 Kit with internal/external ring nuts, code 8091510
6 Suction terminal, code 8089540
7 Additional 45° MF bend, code 8089922
9 Manifold, code 8091400
10 Tile for joint code 8091300
11 Terminal for roof exit L. 1381 code 8091204
12 ø 60 MF reduction, code 8089923
13 Union suction/exhaust code 8091401
14 Coaxial exhaust ø 80/125 L. 885 code 8091210
IMPORTANT: In type C53
the outlet and inlet flues
must not come out on
opposite walls.
