80

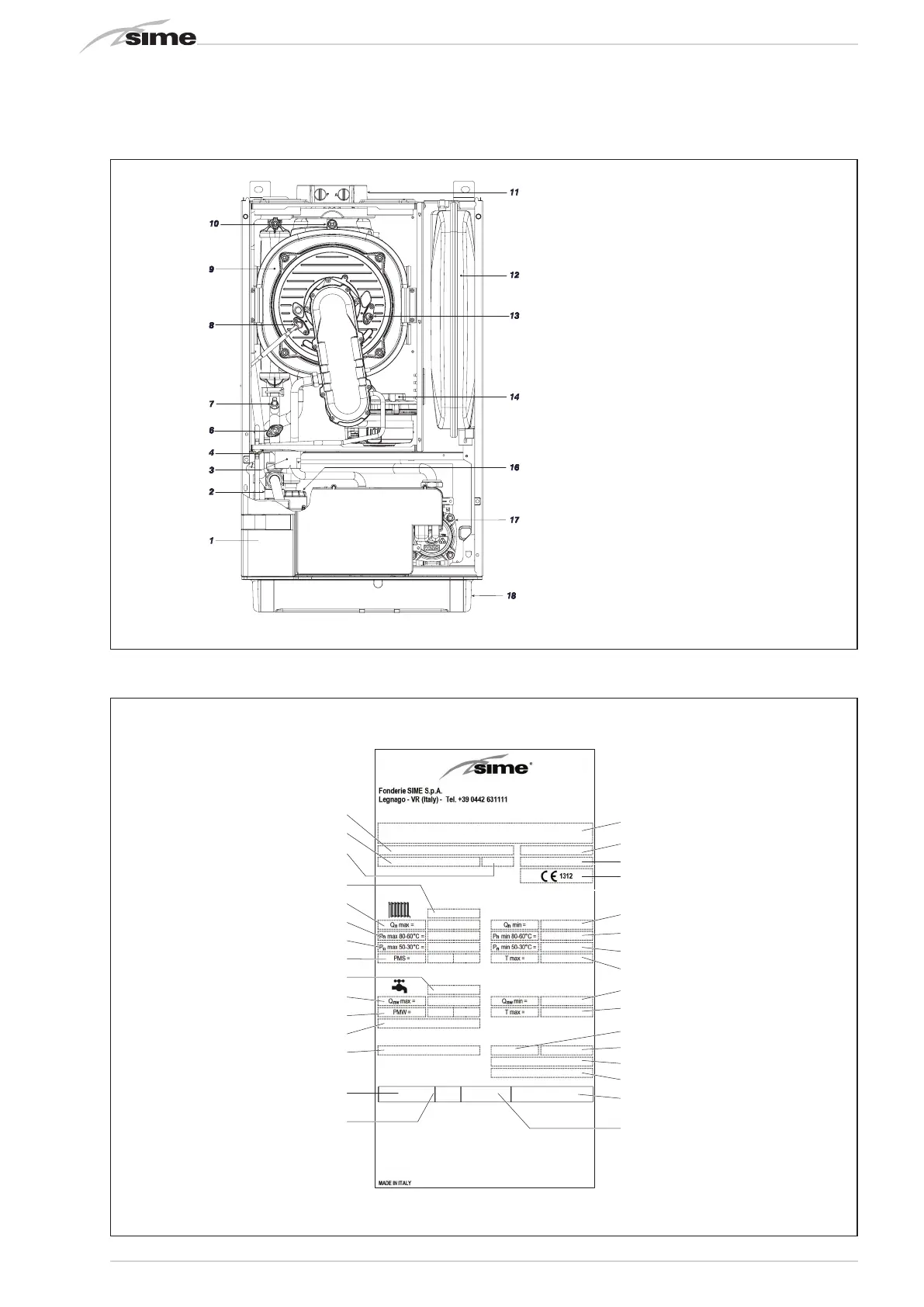

Fig. 3
KEY
1 Control panel
2 Aqua Guard Filter System
3 Ignition transformer
4 Air pressure tap
6 Safety thermostat
7 C.H. sensor (SM)
8 Ignition electrode
9 Primary exchanger
10 Sensor fumes (SF)
11 Suction/discharge fitting
12 Expansion vessel
13 Detection electrode
14 Fan
16 Diverter valve
17 Pump high efficiency
18 Coupling protection
1.5 MAIN COMPONENTS (fig. 3)
MODEL
SERIAL NUMBER
YEAR OF CONSTRUCTION
WATER CONTENT IN BOILER
HEAT INPUT MAX
HEAT OUTPUT MAX (80-60°C)
HEAT OUTPUT MAX (50-30°C)
MAX OPERATING PRESSURE
CONTENTS D.H.W.
HEAT INPUT MAX D.H.W.
MAX OPERATING PRESSURE D.H.W.
D.H.W. FLOW RATE
POWER SUPPLY
MAX POWER ABSORBED
COUNTRIES OF DESTINATION
CATEGORY
TYPE
CODE
DIRECTIVE OF REFERENCE
PIN NUMBER
HEAT INPUT MIN
HEAT OUTPUT MIN (80-60°C)
HEAT OUTPUT MIN (50-30°C)
MAX OPERATING PRESSURE
HEAT INPUT MIN D.H.W.
MAX OPERATING PRESSURE D.H.W.
ELECTRICAL PROTECTION GRADE
NOx CLASS
CODE GAS COUNCIL NUMBER (UK)
CERTIFICATION WRAS (UK)
TYPE OF GAS
GAS SUPPLY PRESSURE
CLASSIFICATIONS
Fig. 3/a
1.6 TECHNICAL DATA PLATE (fig. 3/a)
