2.19 DISASSEMBLY OF OUTER CASING
To disassemble the outer casing, proceed as follows
(Fig. 27):
– pull the front panel forwards so as to release it from
the slot-in pins located on the sides (3) and (4);
– unscrew the screws (1) that fasten the sides to the
base and brackets of the smoke chamber;
– push the sides (3) and (4) upwards, sliding them out
of their slots.
KEY
1 Self-tapping screws
2 Rear panel
3 L.H. side panel
4 R.H. side panel
5 Front panel

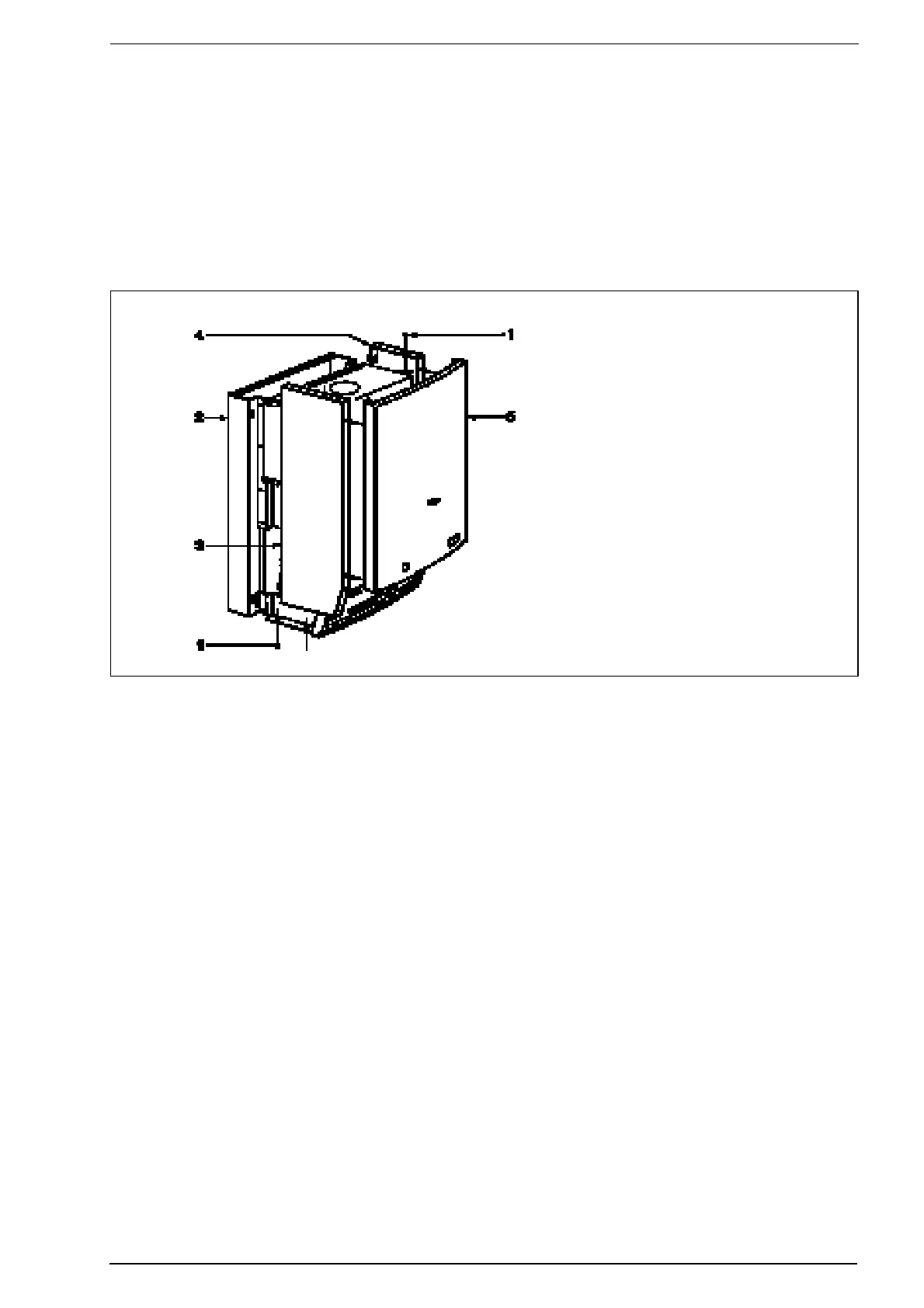

Fig. 27
