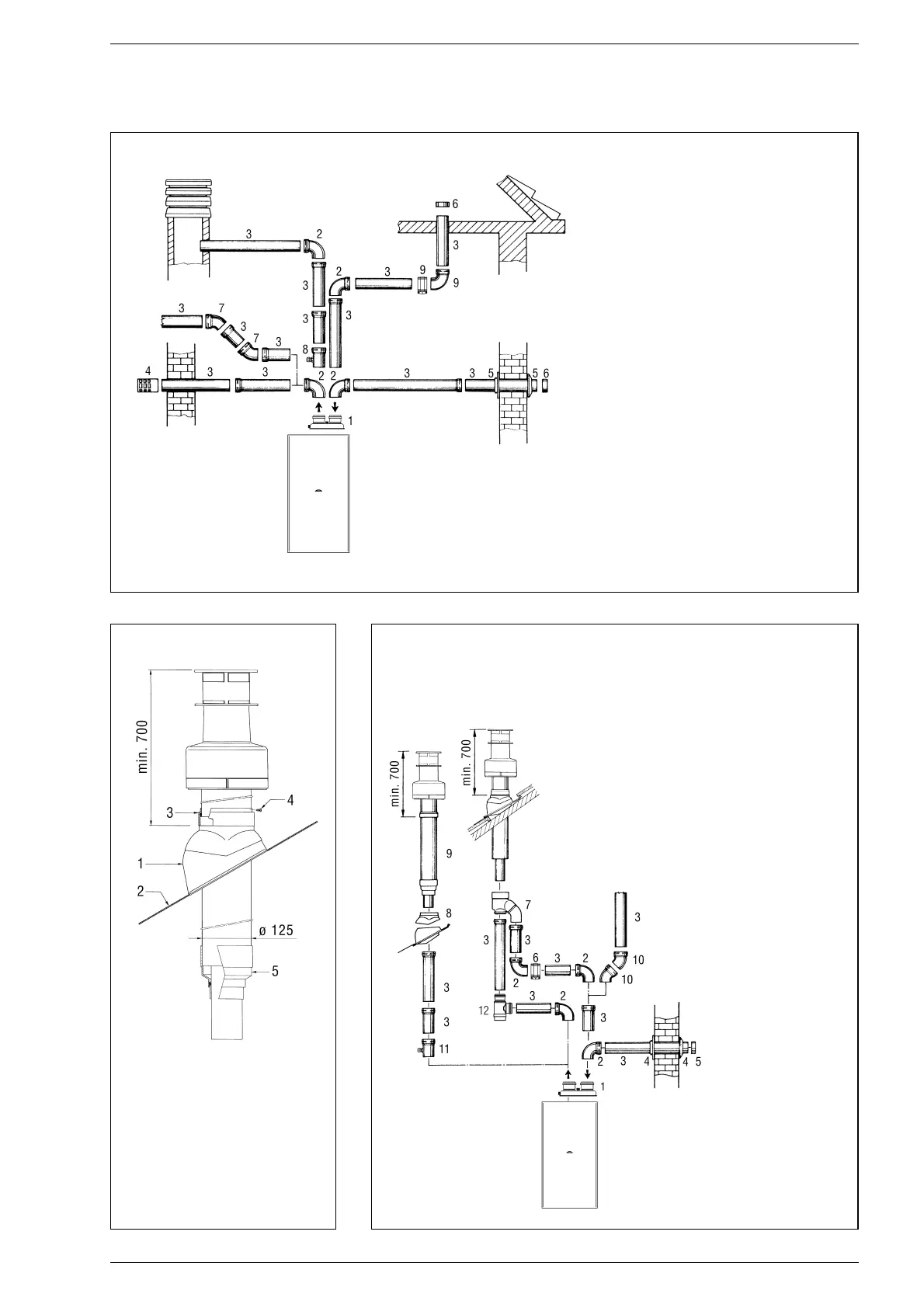

Fig. 14
KEY
1 Air-smokes flow splitting unit
with take-off points code 8093000
2a 90° elbow MF code 8077404
2b Isolated 90° elbow MF code 8077408
3a Extension L. 1000 code 8077303
3b Isolated extension L. 1000 code 8077306
4 Outlet terminal code 8089501
5 Int.-ext. ring lit code 8091500
6 Inlet terminal code 8089500
7 45° elbow MF code 8077406
8 Condensation outlet L.135 code 8092800
9 Locking junction (n.5) code 8092700
Fig. 15 Fig. 16
KEY
1 Air-smokes flow splitting unit
with take-off points code 8093000
2a 90° elbow MF code 8077404
2b Isolated 90° elbow MF code 8077408
3a Extension L. 1000 code 8077303
3b Isolated extension L. 1000 code8077306
4 Int.-ext. ring lit code 8091500
5 Inlet terminal code 8089500
6 Locking junction (n. 5) code 8092700
7 Doubler fittng code 8091400
8 Tile with articulated joint code 8091300
9 Roof outlet terminal L. 1390 code 8091201
10 45° elbow MF code 8077406
11 Condensation outlet L.135 code 8092800
12 Tee condensation outlet code 8093300
KEY
1 Tile with articulated joint
2 Lead panel
3 Collar
4 Locking screw
5 Reducing fitting
with washer
