Sime RX 55 - 1.2.2 RX 37-48-55 dimensions; 1.3 TECHNICAL FEATURES

2

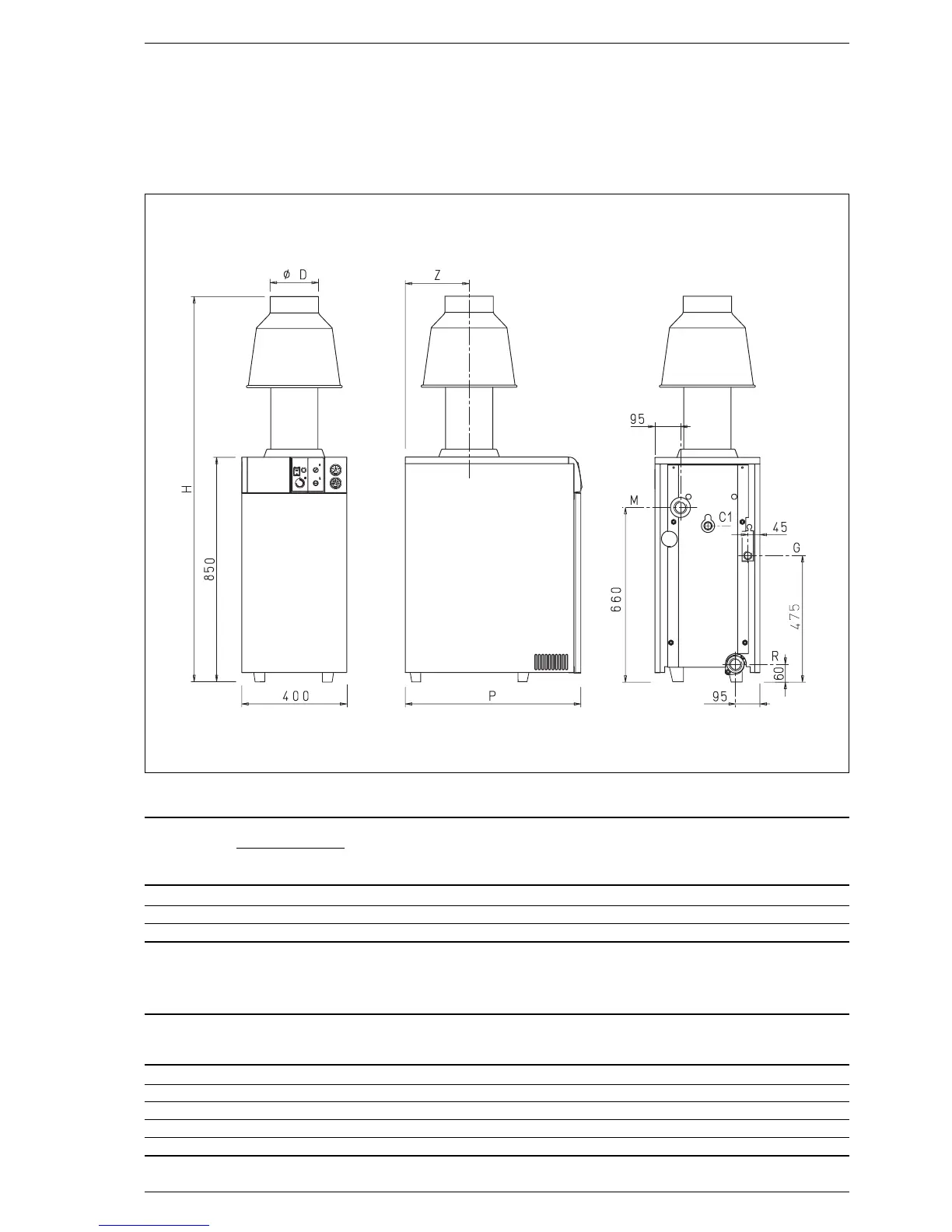

1.2.2 “RX 37-48-55” dimensions
TABLE 2
Model Dimensions Flue C.H. C.H. Gas Filling
socket flow return connection connection
PHL D M R G C
mmmmmmØ mmØØØØ
RX 37 670 1.435 245 180 1 1/2” 1 1/2” 3/4” 1/2”
RX 48 770 1.435 295 180 1 1/2” 1 1/2” 3/4” 1/2”
RX 55 870 1.675 345 200 1 1/2” 1 1/4” 3/4” 1/2”
1.3 TECHNICAL FEATURES
TABLE 3
Model Heat Heat Power Number Water Pressure loss Maximum
Input Output consumption of sections content water side *** water head
kW kW W litres mm W.G. bar
RX 19 25.0 22.0 5 - 16* - 100** 3 10 20 3
RX 26 34.8 30.5 5 - 16* - 100** 4 13 30 3
RX 37 44.8 39.1 5 - 16* 5 16 45 3
RX 48 55.0 48.8 5 - 16* 6 19 55 3
RX 55 69.2 60.7 5 - 16* 7 22 103 3
* IONO models ** PVA-PVA IONO models *** These figures refer to the water ∆p with ∆t 10°C
Fig. 2
