Sime SOLIDA Series - 2.2.2 Electrical Connections

15
ELECTRICAL CONNECTIONS2.2.2

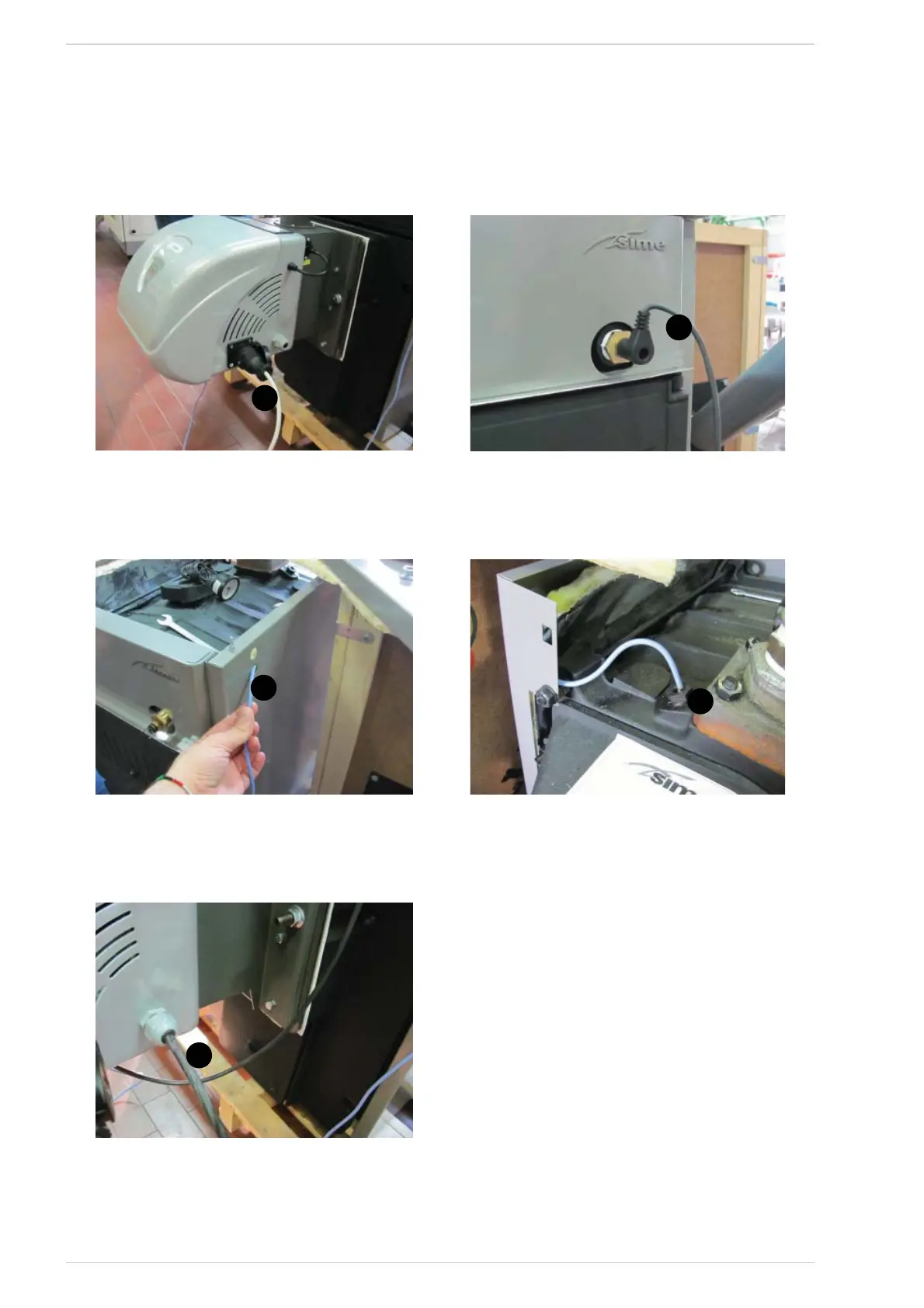

Connect the cable connector (1) coming from the screw feeder motor to the burner.A)
Connect the cable connector (2) coming from the burner to the safety thermostat.B)
Screw feeder motor cableFig. 33 Safety thermostat connectorFig. 34
Pass the NTC sensor through the grommet on the boiler bodyC)
NTC sensor cable routeFig. 35 Position and secure the NTC sensor.Fig. 36
Connect the burner power cable (5) to the mains. D)
BLUE = NEUTRAL
BROWN = PHASE
YELLOW-GREEN = EARTH
Connection to the mainsFig. 37
1
2
3
4
5
