Picture 5
. Place the glass stoppers, tabs facing back, on the lower and upper
rack and press them to ensure that they are xed on the racks, as
shown in Figure 5. Apply the same procedure on the other side, place
the 4 stoppers on the lower and upper racks. Complete the mounting
procedure by pulling the glass to the left side.
CASTOR MOUNTING INSTRUCTIONS
Picture 1
Picture 2
Picture 3

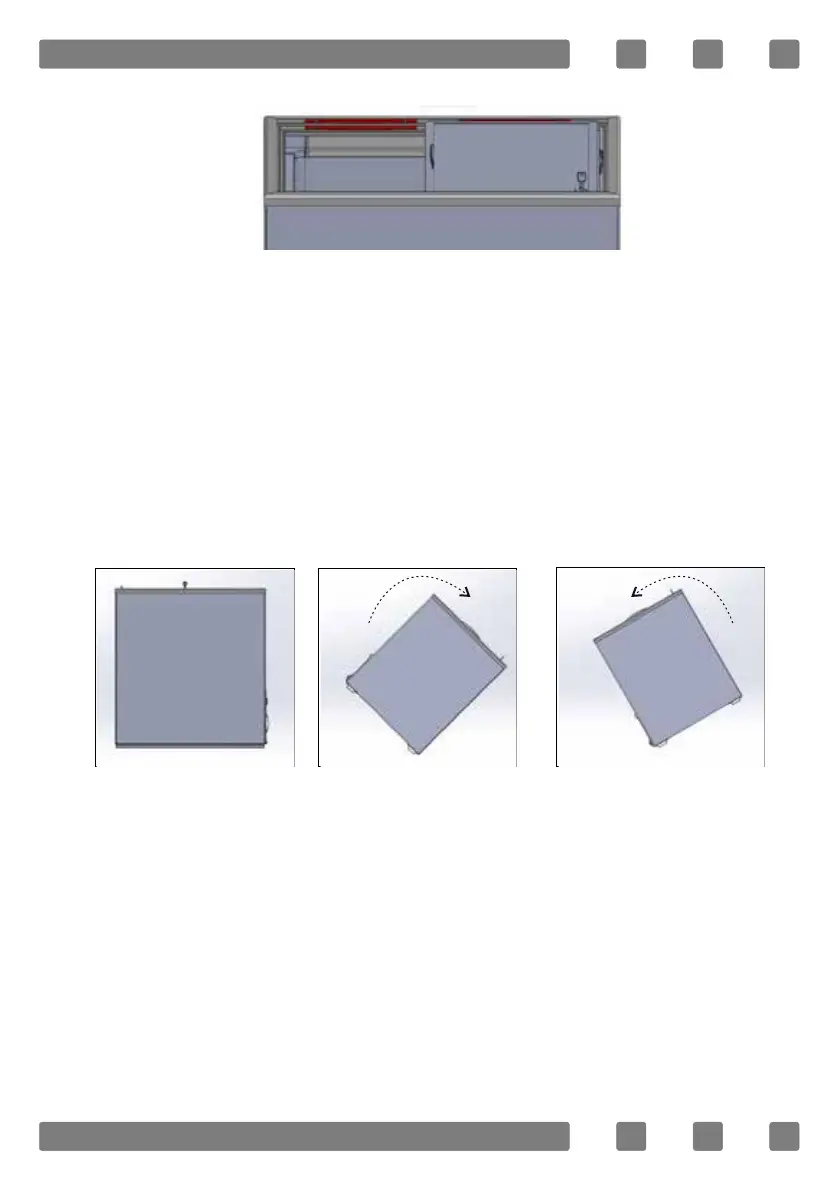

• Place your product as shown in Figure 2. Then, mount two cas-
tors with brakes in the to the back side of the conservator, by xing
the castors in the sockets under the conservator and ensure that the
socket centers are aligned, as shown in gure 4. Then place the U-pins
through the holes. Ensure the stability by placing the pim wedges.
•By placing the conservator as shown in gure 3, mount the two
castors in the castor box as shown in gure 5, by applying the same
procedure.
