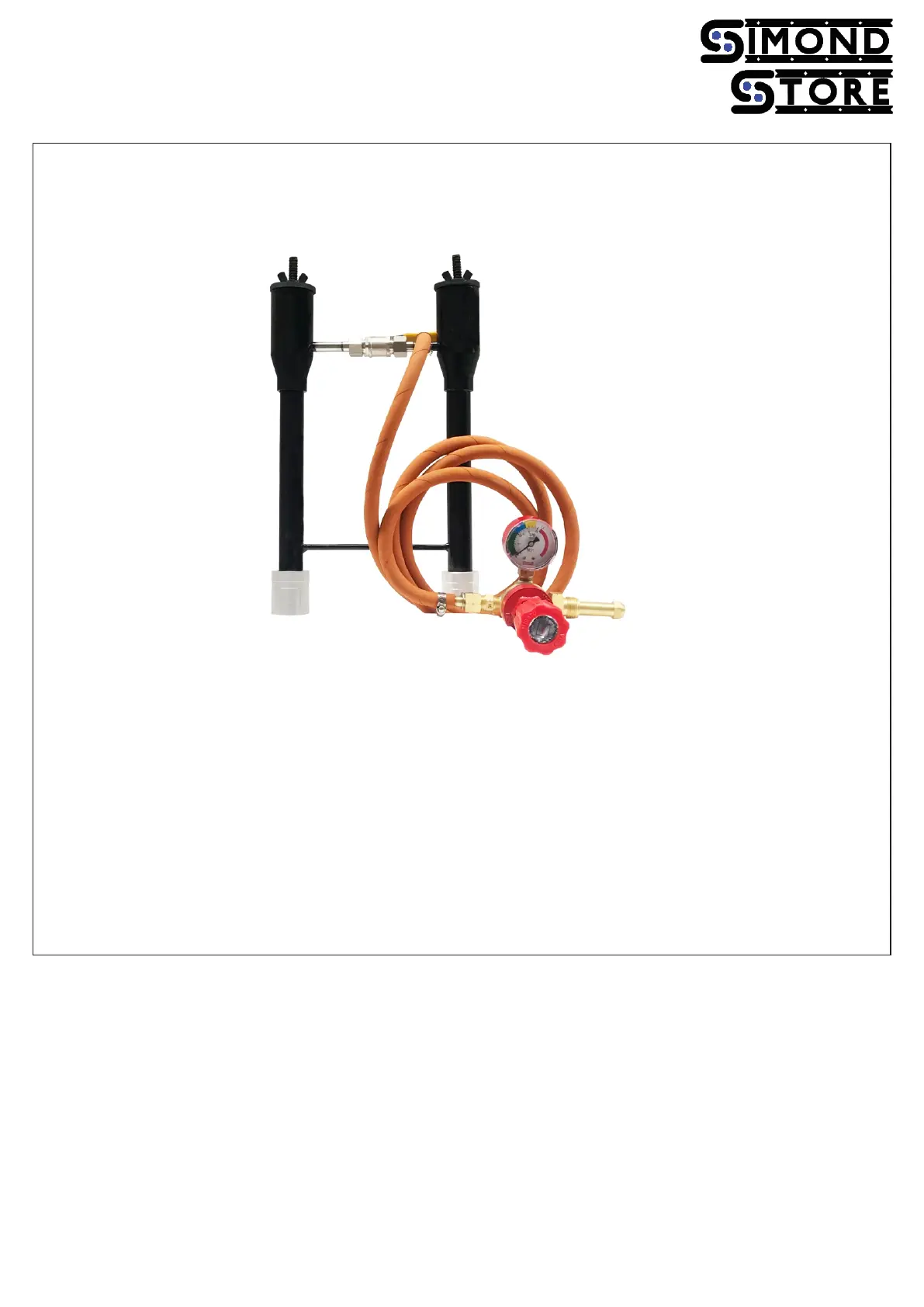

Ÿ Connect the Pre-Assembled Burner Part A &Part B with Part C (Which is Hose). Connect one end of
hose with the Burner inlet pipe and other end with the Part E (Gas Pressure Regulator). Use clamps for
proper tightening of hose at both end.
Ÿ At the top of the Part B you can see wing nut with washer which can be rotated clockwise and anti-
clockwise direction to regulate the air flow pressure while firing.
Ÿ Connect the above system of Part A& B at the top of the Forge with the help of the coupling and
adjustable screws. Please make sure that burner's nozzle at end do not cross over inside insulation of
forge.
Ÿ Place Part D (Bricks) at the bottom of the Forge and over the ceramic fibre lining.
