SimPark Easymatic-E - Page 6

6
Multi connector safety function
Pin 6 of controller to pin 9 of
towbar socket (12 volt)
Antenna:
Pin no.2 is the antenna
Pair button for the
remote controller

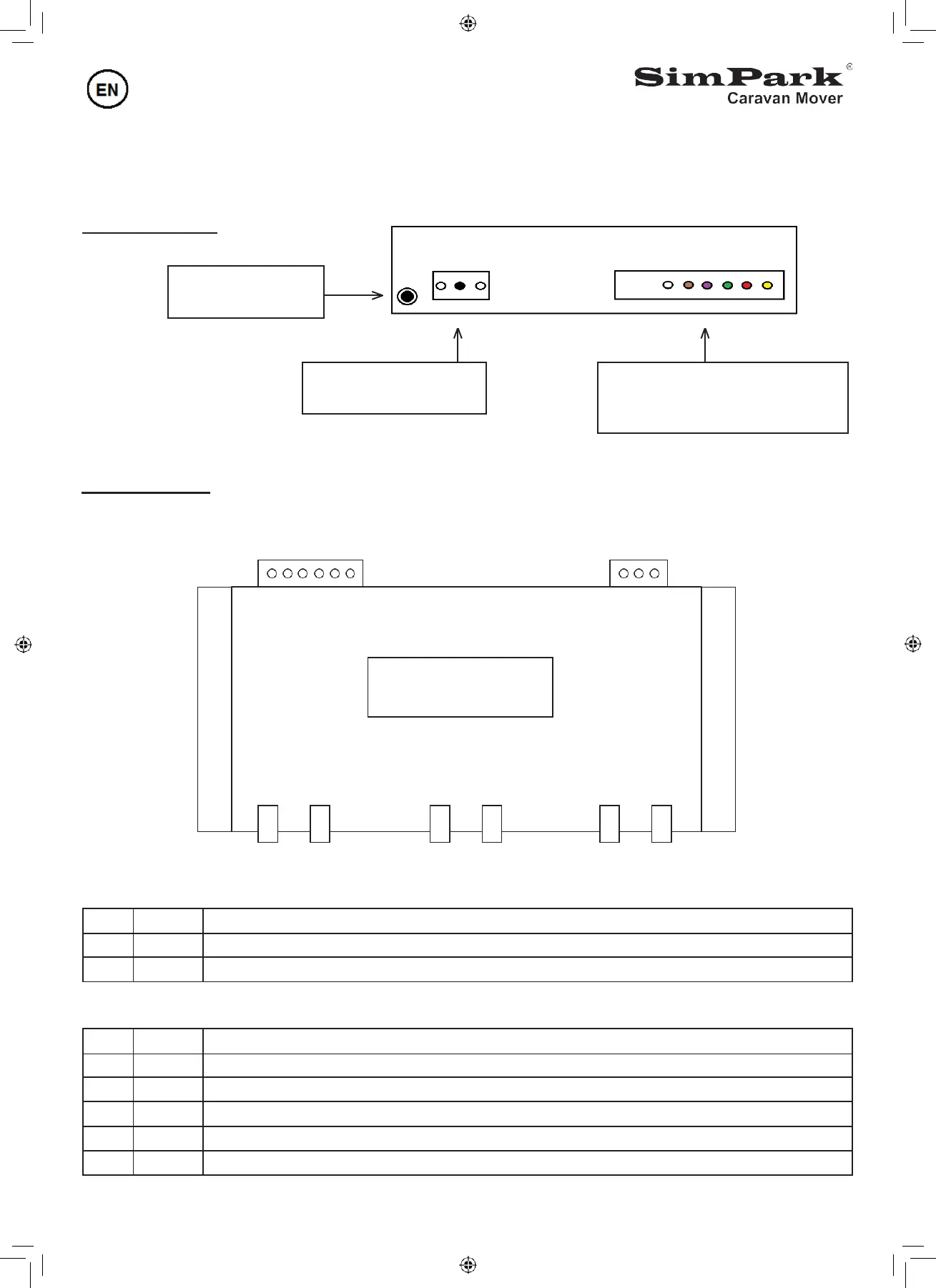

Rear view receiver
Fig. 8
Top view receiver
Fig. 9
Pinnumber
9 8 7 6 5 4
Pinnumber
3 2 1
Antenna connections (see fig. 9)
Pin 1
Not in use
Pin 2
Signal Antenna: black supplied copper wire or flying lead of maximum 52.5 cm.
Pin 3
Not in use
Pin connections (see fig. 9)
Pin 4
Not in use
Pin 5
GND
Brown cable: to pin 13 of the towbar socket (ground)
Pin 6
12 volt
Purple cable: to pin 9 of the towbar socket (safety function)
Pin 7
Impuls
Green cable: retract the drive-rollers from the tyres
Pin 8
12 volt
Red cable: to 12 volt + of battery
Pin 9
Impuls
Yellow cable: pressing the drive-rollers on the tyres
Motor L
-
+
Battery
-
+
Motor R
-
+
Controller
