4090-9116 Addressable IDNet Isolator Installation Instructions
2
Addressable IDNet Isolator installation consists of the following:
• Setting the Addressable IDNet Isolator address
• Making electrical connections to the Addressable IDNet Isolator
• Mechanically installing the Addressable IDNet Isolator

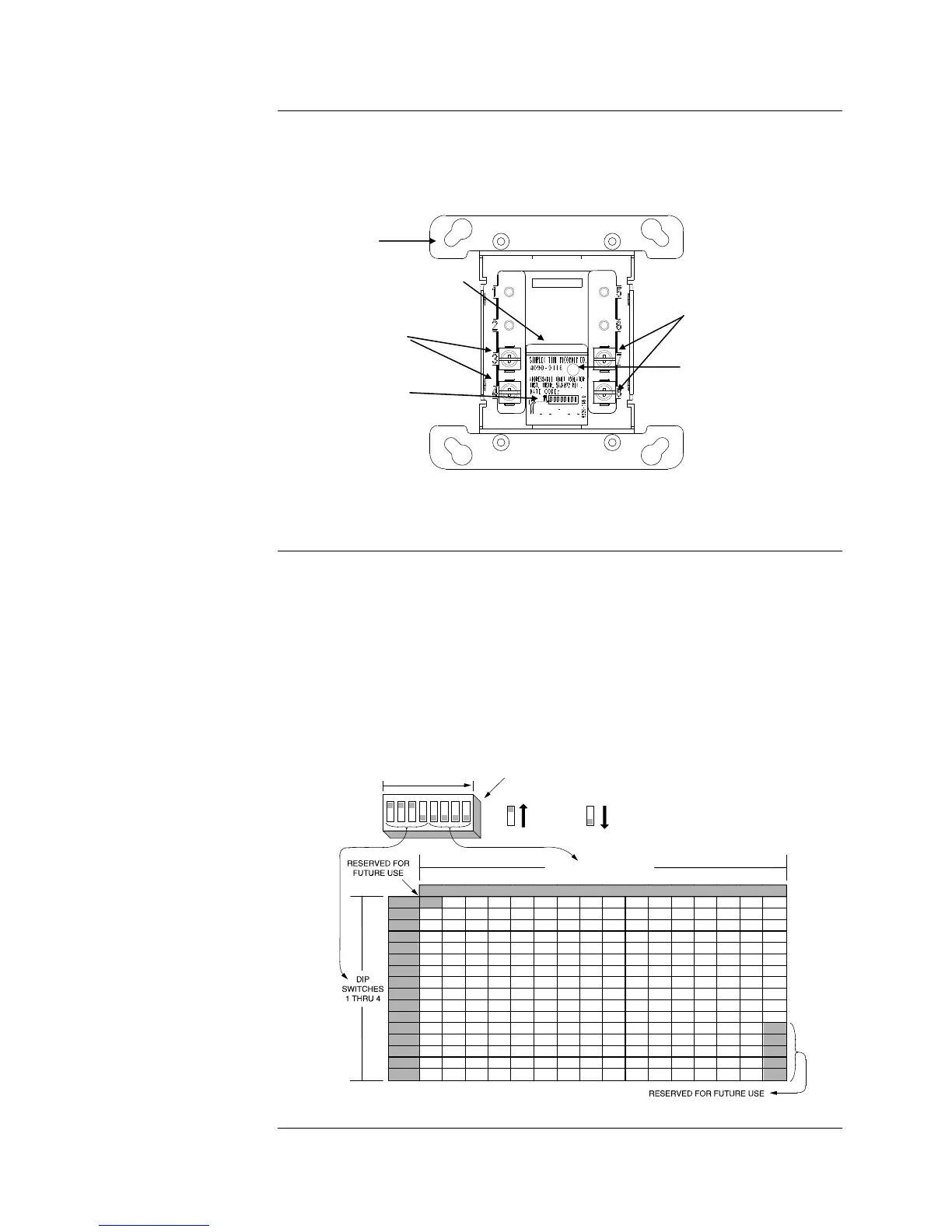

FigureTag FD4-872-01
Figure 1. Addressable IDNet Isolator Assembly
Note: The 4100ES, 4100U, and 4010ES IDNet channels support address codes
1 through 250, while the 4008 supports address codes 1 through 200.
Each Addressable IDNet Isolator has a unique address. The address of the Addressable
IDNet Isolator is set via an eight position dip switch (Figure 1), DIP switch position 1 is
the least significant bit (LSB) and position 8 is the most significant bit (MSB). Set the
Addressable IDNet Isolator address using Figure 2 as reference. Use a small screwdriver
or pen to set the switches. The device address for the Addressable IDNet Isolator should
be written on the re-sealable label, this information provides an aid in troubleshooting the
system.
Note: DIP switch in “1” position is “ON” while DIP switch in “0” position is “OFF”. F
D4-872-02
0000 1000 0100 1100 0010 1010 0110 1110 0001 1001 0101 1101 0011 1011 0111 1111
0000
0 16 32 48 64 80 96 112 128 144 160 176 192 208 224 240
1000
1 17 33 49 65 81 97 113 129 145 161 177 193 209 225 241
0100
2 18 34 50 66 82 98 114 130 146 162 178 194 210 226 242
1100
3 19 35 51 67 83 99 115 131 147 163 179 195 211 227 243
0010
4 20 36 52 68 84 100 116 132 148 164 180 196 212 228 244
1010
5 21 37 53 69 85 101 117 133 149 165 181 197 213 229 245
0110
6 22 38 54 70 86 102 118 134 150 166 182 198 214 230 246
1110
7 23 39 55 71 87 103 119 135 151 167 183 199 215 231 247
0001
8 24 40 56 72 88 104 120 136 152 168 184 200 216 232 248
1001
9 25 41 57 73 89 105 121 137 153 169 185 201 217 233 249
0101
10 26 42 58 74 90 106 122 138 154 170 186 202 218 234 250
1101
11 27 43 59 75 91 107 123 139 155 171 187 203 219 235
0011
12 28 44 60 76 92 108 124 140 156 172 188 204 220 236
1011
13 29 45 61 77 93 109 125 141 157 173 189 205 221 237
0111
14 30 46 62 78 94 110 126 142 158 174 190 206 222 238
15 31 47 63 79 95 111 127 143 159 175 191 207 223 239
LSB MSB
1 2345678
1111
DIP SWITCHES 5 THRU 8
ON
OFF
1 = ON 0 = OFF
251
252
253
254
255
DIPSWITCH IS SHOWN SET AT ADDRESS 7.
Figure 2. Addressable IDNet Isolator Address Chart
Installation
Setting the
Addressable Power
Isolator Address
Note: The LED flashes approximately once every three seconds to indicate
valid communications with the FACP.
Mounting
Bracket
DIP Switch
(Under Re-sealable
Label)
Assembly
PID Label
LED
(See Note)
IDNet Input
Terminals
IDNet Output
Terminals
To Next Page
