4090-9116 Addressable IDNet Isolator Installation Instructions
3
Configure the Addressable IDNet Isolator to the 4100 panel using the ES Panel
Programmer’s Manual (574-849).
Configure the Addressable IDNet Isolator to the 4008 panel using programming
manuals 579-716 or 579-717.

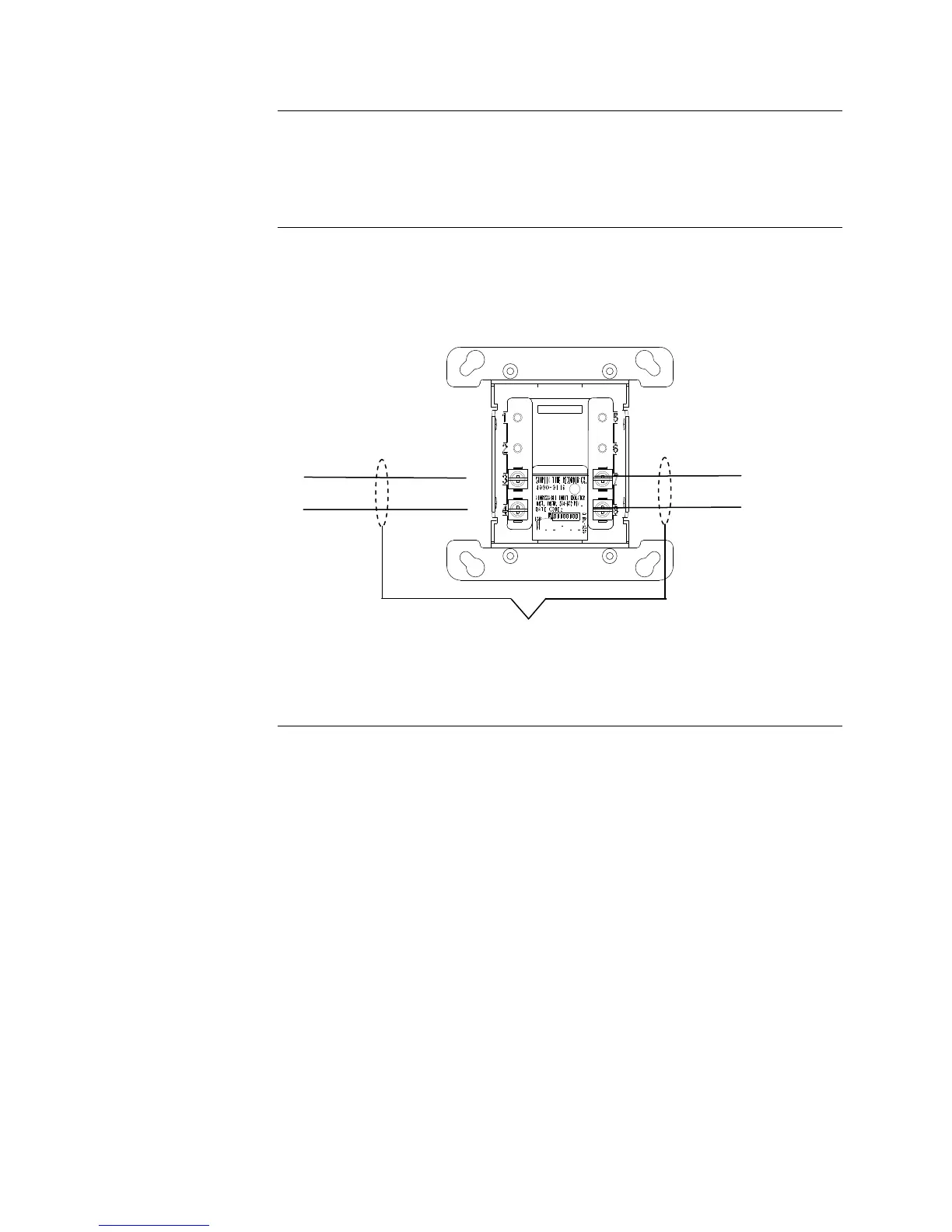

Terminal connections for the Addressable IDNet Isolator are illustrated in Figure 3.
CAUTION: Do not loop wire under terminals. Break wire runs to provide
supervision.
FigureTag FD4-872-03
Figure 3. Addressable IDNet Isolator Connections
Panel Configuration
Making Electrical
Connections to the
Addressable IDNet
Isolator
FROM
PREVIOUS
DEVICE
OR FACP
TO NEXT
DEVICE
Shield
(Optional)
IDNet +
IDNet -
IDNet -
IDNet +
