13
The 4098-9842 Duct Control Station is intended for installation to a standard
double-gang outlet box having a depth of at least two inches. See Figure 11 for
basic mounting details. Make wiring connections in accordance with the wiring
diagrams (Figures 2 and 3) prior to attaching accessory to the box.
4098-9842 DUCT CONTROL STATION
LISTED STEEL
DEVICE BOX
(BY OTHERS)
ACCESSORY
ACTUAL ACCESSORY MAY VARY
SLIGHTLY FROM PICTURE SHOWN.
POWER
ALARM
NORMAL
TEST/
RESET
SILENCE
SILENCE

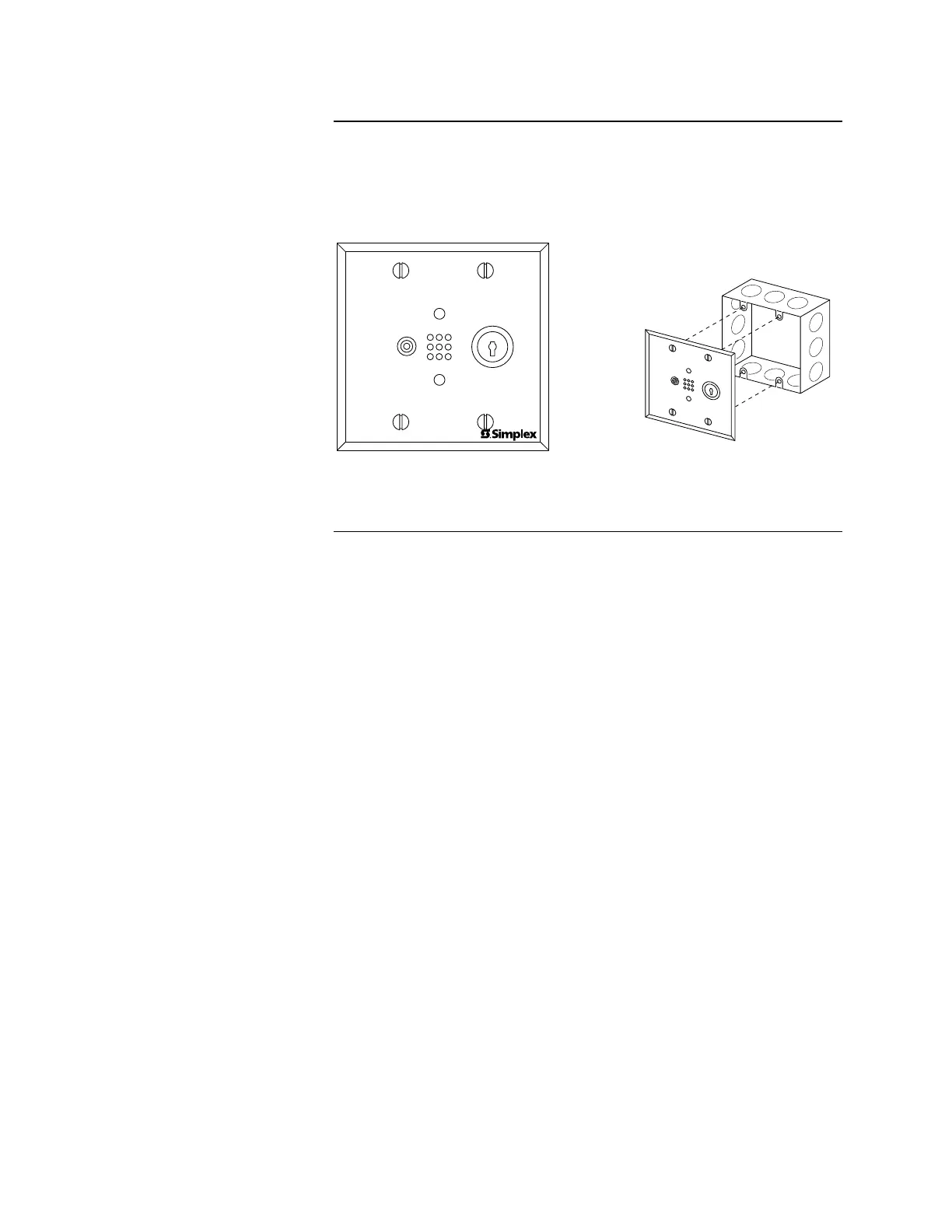

Figure 11. Accessory Installation
Continued on next page
Installation, Continued
Accessory Installation
