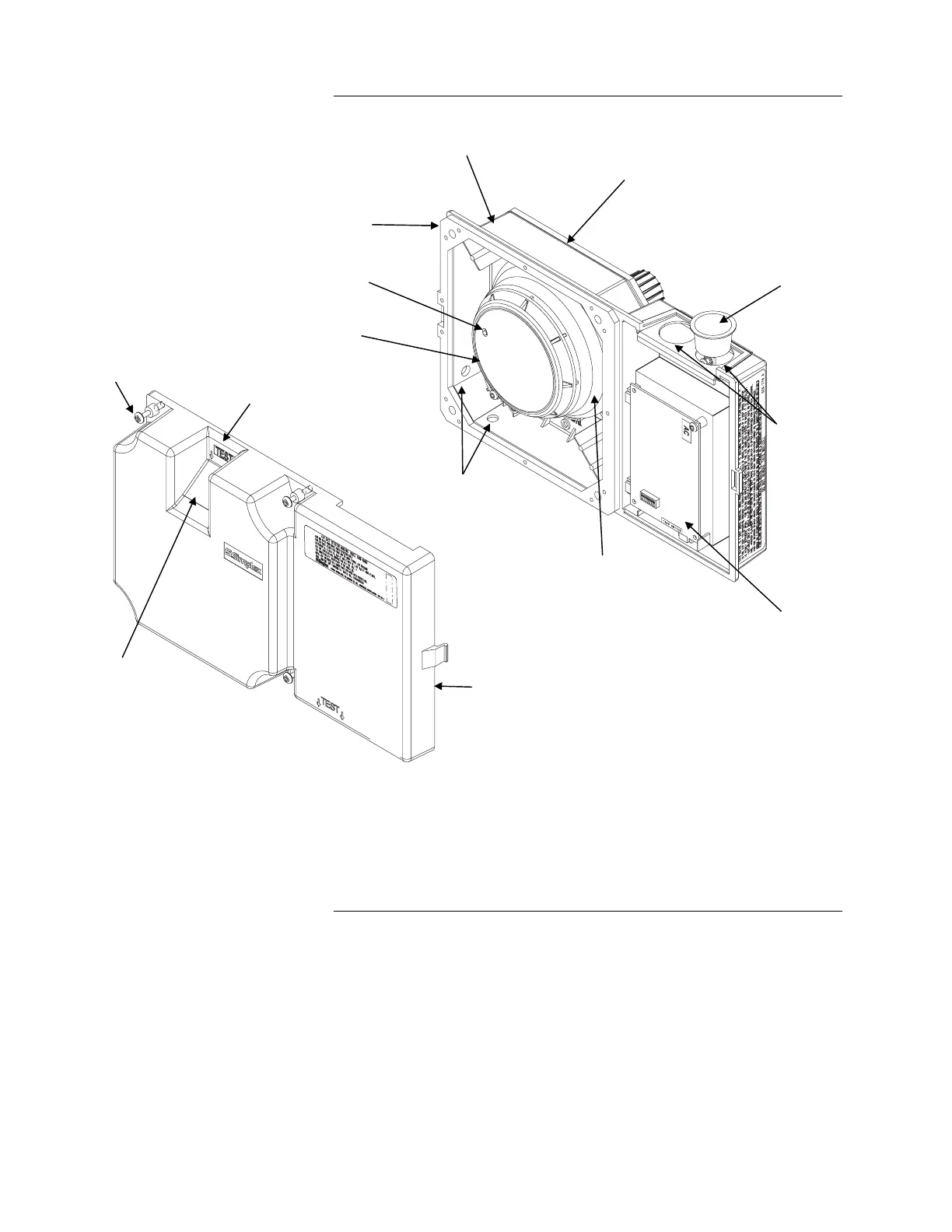

Figure 1. Stand Alone Duct Detector Components
General Description, Continued
HOUSING COVER
#8 CAPTIVE PANHEAD
SCREW
QTY: 4
DETECTOR MAGNETIC
TEST LOCATION
3/4" CONDUIT ENTRY
# 12-18 AWG WIRE
RECOMMENDED
PCB ASSEMBLY
DETECTOR BASE
HOUSING BASE
4098-9601
SMOKE DETECTOR
COVER GASKET
BASE GASKET
SMOKE PORT/AIR FLOW
TEST HOLES
CAP PLUG
SHIP GROUP 748-518
SEE NOTE
PLACE MAGNET HERE
TO TEST
Note: Two 3/4" conduit entries are provided for field wiring
connections (#12-18 AWG) to the PCB assembly. The
unused conduit entry is sealed off using the cap plug
(ship group 748-518). Apply even pressure on the
plastic cap plug to secure it against the conduit plate.
The cap plug seals and removes easily with moderate
pressure.
