Simplex 4208 User Manual

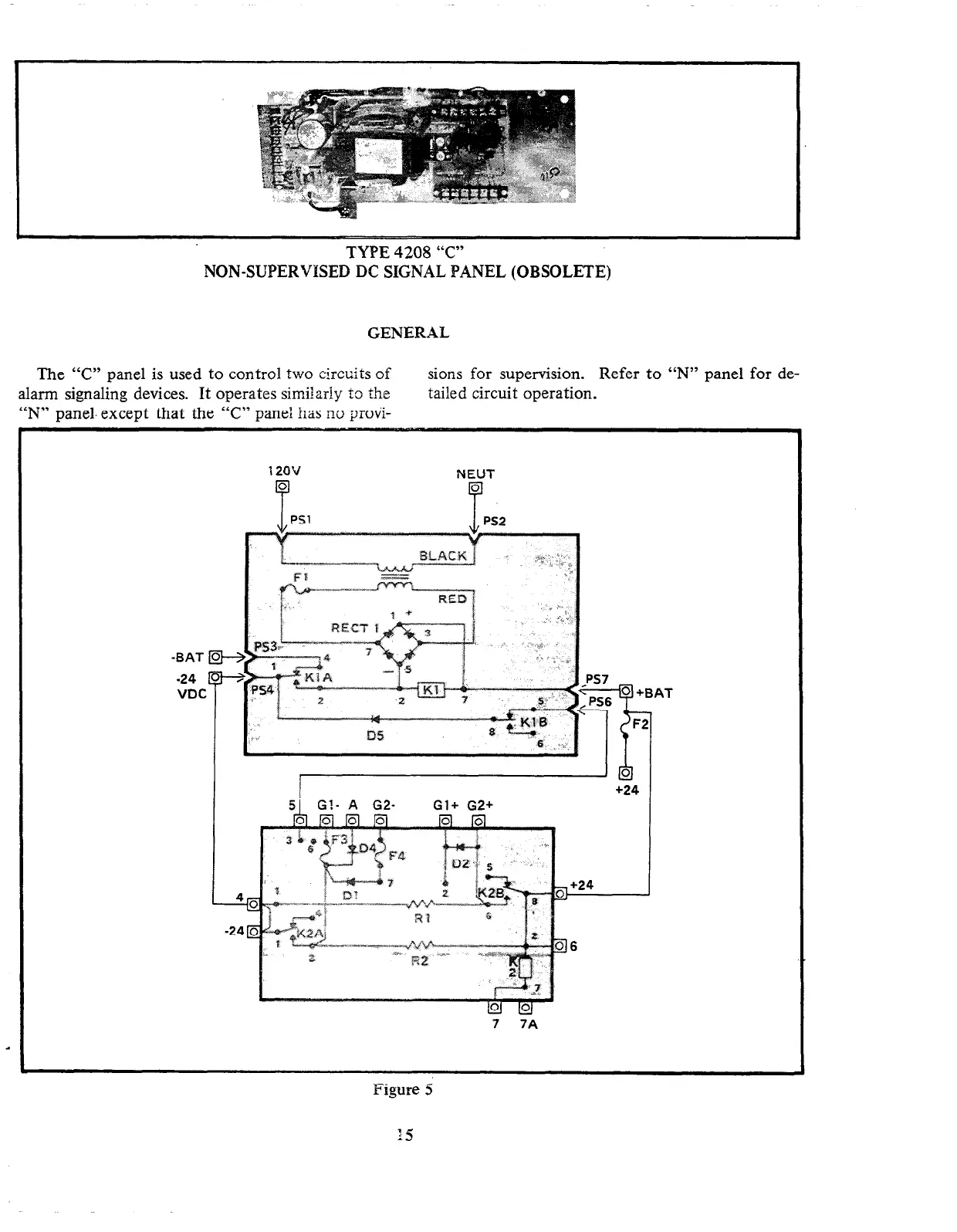

TYPE 4208 “C”
NON-SUPERVISED DC SIGNAL PANEL (OBSOLETE)
GENERAL
The “C” panel is used to control two circuits of
alarm signaling devices. It operates similarly to the
“N” panel, except that the “C” panel has no provi-
sions for supervision. Refer to “N” panel for de-
tailed circuit operation.
-BAT
-24
VDC
Gl+ G2+
AT
+24
-24
6
7
7A
Figure 5
