Simplex 4903 - Flasher Unit Wiring Diagrams (120 V)

I
TWISTED-
SHEkl%ED
SEE
NOTE
4
I
RED-DC
NOTlFlCATlON APPLIANCE
HORN, BELL, CHIME,
BUZZER, ETC.
NOTES:
1. WIRE NUTS ARE NOT SUPPLIED.
2. ISOLATE AND TAPE UNUSED LEADS.
3. NOTlFlCATlON APPLIANCE IS RATED PER INDIVIDUAL NAMEPLATE.
4. USE TWISTED-SHIELDED WIRE FOR ALL MAPNET”,
PHONE, OR AUDIO WIRING RUN WlTH FLASHER
UNIT WIRING. FOR SYSTEM WIRING SPECIRCATIONS,
SEE 9OD.036 FOR 2129 CONTROLS AND 900-082 FOR
41W CONTROLS.

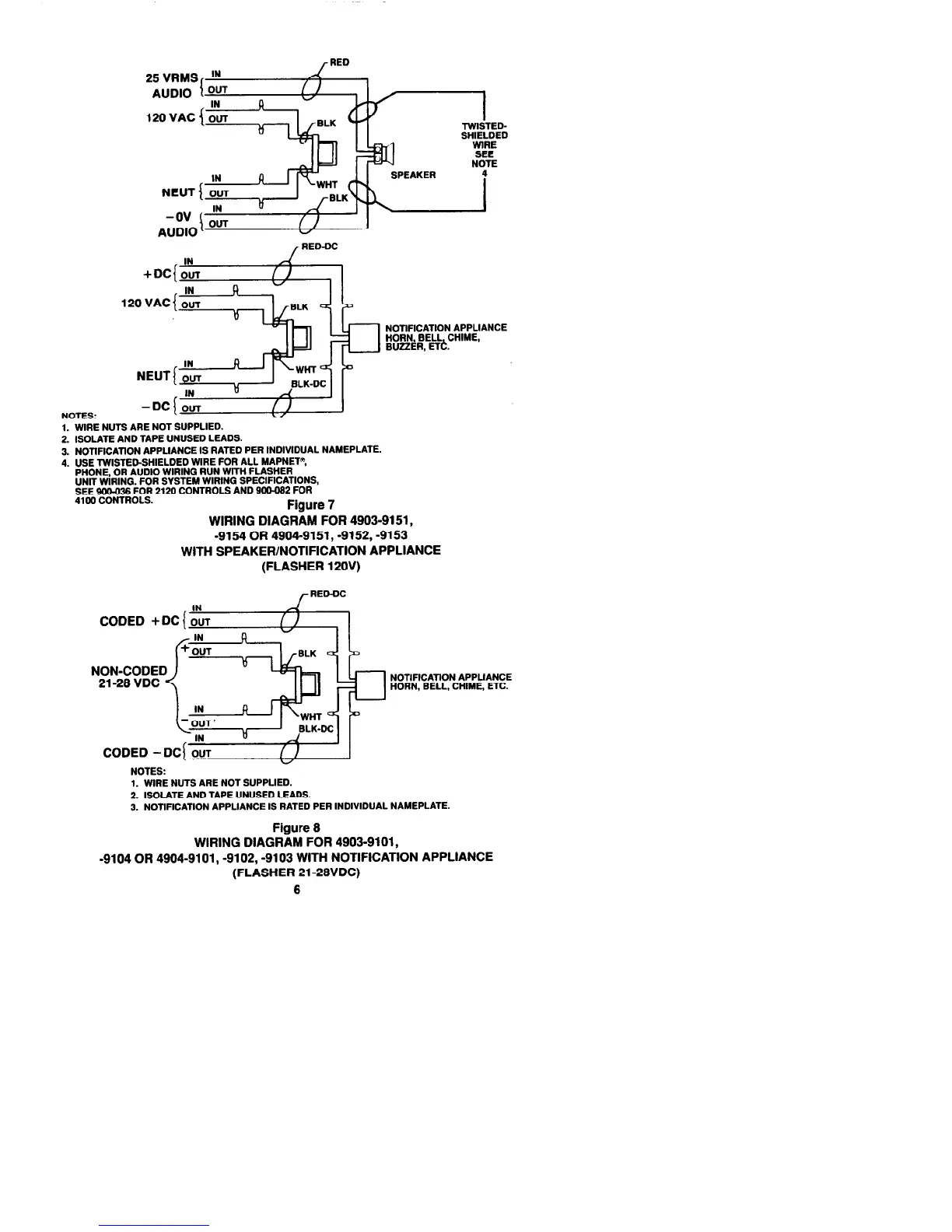

Figure 7
WIRING DIAGRAM FOR 4903-9151,
-9154 OR 4904-9151, -9152, -9153
WITH SPEAKER/NOTIFICATION APPLIANCE
(FLASHER 12OV)
RED-DC
NOTIFICATION APPLIANCE
HORN, BELL, CHIME, ETC.
NOTES:
1. WlRE NUTS ARE NOT SUPPLIED.
2. ISOLATE AND TAPE UNUSED LEADS.
3. NOTlFlCATlON APPLIANCE IS RATED PER INDIVIDUAL NAMEPLATE.
Figure 8
WIRING DIAGRAM FOR 4903-9101,
-9104 OR 4904-9101, -9102, -9103 WITH NOTIFICATION APPLIANCE
(FLASHER 21-28VDC)
8
