Simplex 4903 User Manual

NOTES:
1. WIRE NUTS ARE NOT SUPPLIED.
2. ISOLATE AND TAPE UNUSED LEADS.

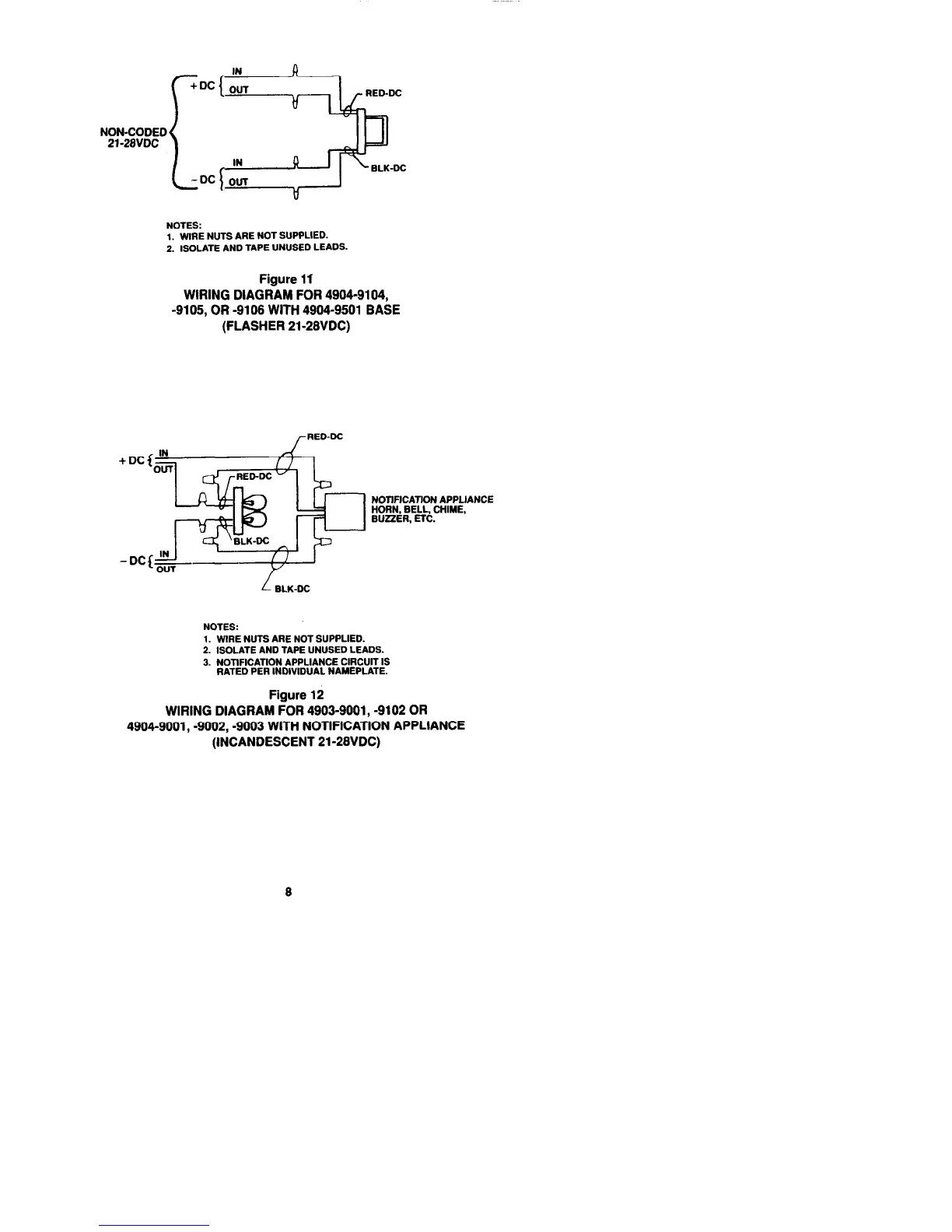

Figure 11
WIRING DIAGRAM FOR 4904-9104,
-9105, OR -9106 WITH 4904-9501 BASE
(FLASHER 2%28VDC)
+DC{
-DC{
NOtlFlCATlON APPUANCE
tifiNi~E~LdCHIME,
. .
NOTES:
1. WIRE NUTS ARE NOT SUPPLIED.
2. ISOLATE AND TAPE UNUSED LEADS.
3. NOTIFICATION APPLIANCE CIRCUIT IS
RATED PER INDIVIDUAL NAMEPLATE.
Figure 12
WIRING DIAGRAM FOR 4903-9001, -9102 OR
4904-9001, -9002, -9003 WITH NOTIFICATION APPLIANCE
(INCANDESCENT 21-28VDC)
