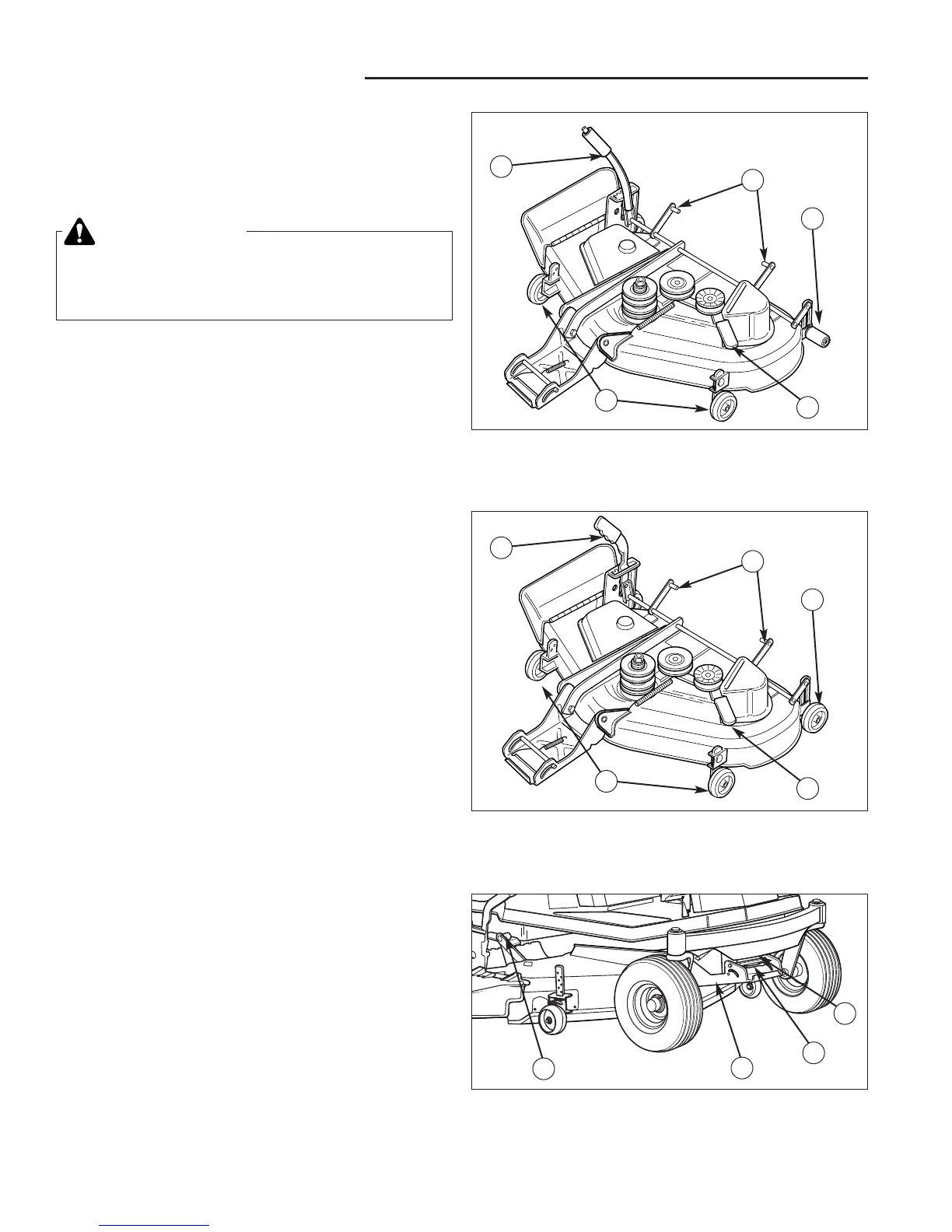

Figure 13a. Mower Components (Later Models)
A. Mower Cutting Height C. Front Gauge Wheels
Adjustment Lever D. Mower Supports
B. Rear Gauge Wheel E. Idler Pulley Arm
A
D
E
B
MOWER DECK REMOVAL &
INSTALLATION
NOTE: Perform mower removal and installation on a
hard, level surface such as a concrete floor.
●●
38” & 44” Models
REMOVING THE MOWER DECK
1. Swing the front wheels out.
2. Place the mower height adjustment lever (A, Figures
13a & 13b) in the lowest cutting position.
3. Release tension on the drive belt using the Idler
Pulley Arm (E, Figures 13a & 13b) and release the
drive belt.
4. Disconnect the front hitch by pulling out on the
release rod (A, Figure 14) and lifting the mower hitch
(C, Figure 14) off the rider hitch bracket (B, Figure 14).
5. Slide the mower deck forward and out from under the
right side of the rider.
INSTALLING THE MOWER DECK
1. Swing the front wheels out.
2. Place the mower height adjustment lever (A, Figures
13a & 13b) in the lowest cutting position.
3. Slide the mower deck under the right side of the rider,
and then back, making certain the mower supports
(D, Figures 13a & 13b) are properly located onto the
rider support plates (D, Figure 14).
4. Connect the mower hitch to the front rider hitch by
pulling out on the release rod (See Figure 14).
5. Attach the drive belt.
Operating the Zero Turn Rider
Figure 14. Mower Hitch Components
A. Rider Hitch Bracket C. Mower Hitch
B. Release Rod D. Rider/Mower Supports
WARNING
Engage parking brake, disengage PTO, stop engine
and remove key before attempting to install or
remove the mower.
A
B
C
D
C
Figure 13b. Mower Components (Early Models)
A. Mower Cutting Height C. Front Gauge Wheels
Adjustment Lever D. Mower Supports
B. Rear Gauge Wheel E. Idler Pulley Arm
A
D
E
B
C
