MOWER ADJUSTMENTS
Leveling The Mower
If the cut is uneven, the mower may need leveling.
Unequal or improper tire pressure may also cause an
uneven cut. Tire pressure should be as follows:
• Front: 20 psi (138 kPa) • Rear: 10 psi (69 kPa)
Side to Side Leveling - All Models
1. With the mower installed, place the rider on a
smooth, level surface such as a concrete floor. Turn
the front wheels straight forward.
2. Check for bent blades and replace if necessary.
3. Place the mower in high-cut position. Arrange the
mower blades so that they are pointing from side-to-
side (Figure 31).
4. See Figure 32. Measure the distance between the
outside tips of each blade and the ground. If there is
more than 1/8" (3mm) difference between the mea-
surements on each side, proceed to step 5. If the dif-
ference is 1/8" (3mm) or less, proceed to Front TO
Back Leveling.
5. See Figure 32. Loosen the outside nut (A) and tap-
tite screw (C), then turn the eccentric nut (B) to raise
or lower the left side of the deck. When the mower
deck is level, hold the eccentric nut while tightening
the outside nut. Tighten the taptite screw (C).
24
00
Troubleshooting, Adjustment & Service
WARNING
Before checking mower, shut off PTO and engine.
Allow all moving parts to stop. Remove ignition
key, then disconnect the spark plug wire and
fasten it away from the spark plug.

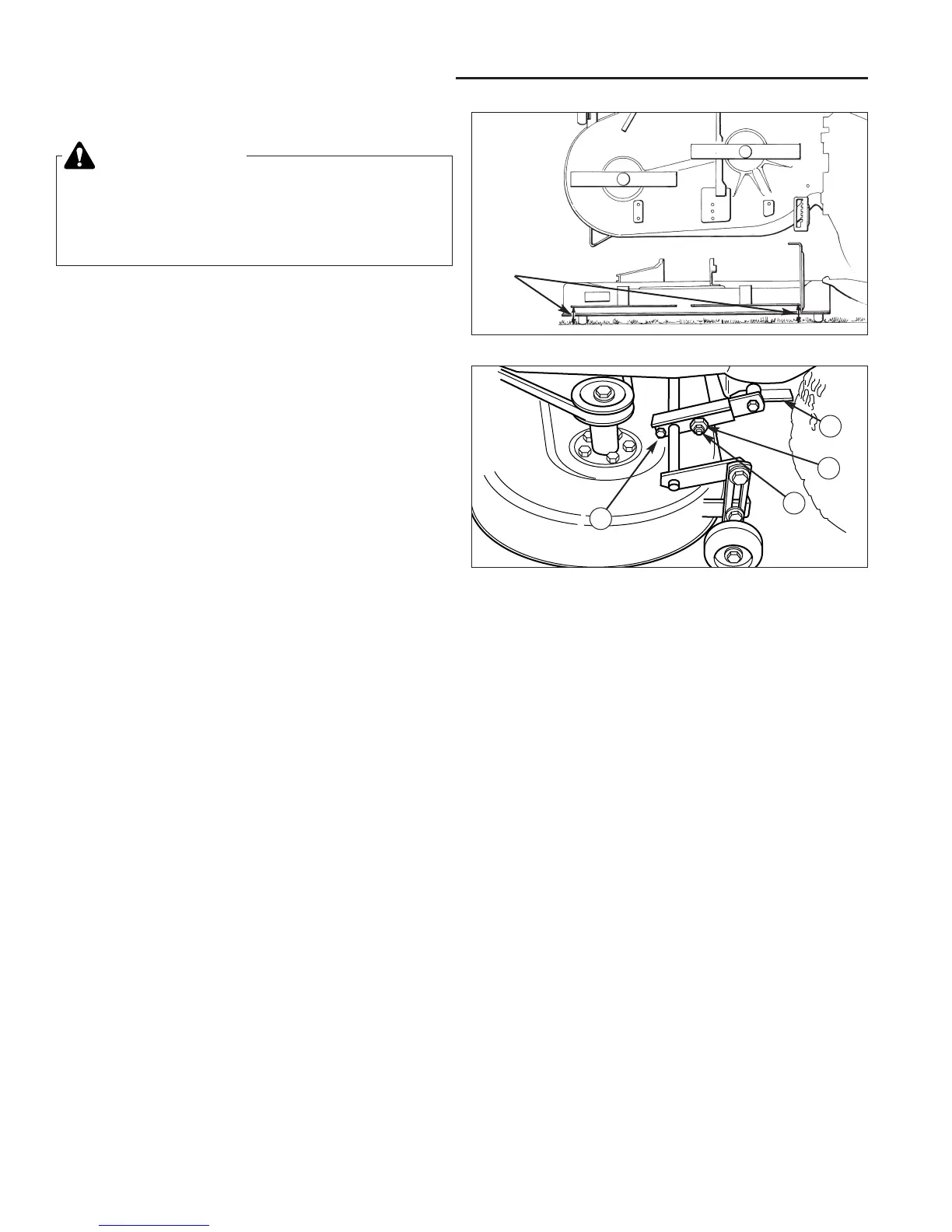

Figure 31. Side-to-Side Leveling (38” Deck Shown)
Measurement
should be
within 1/8"
Figure 32. Side-to-Side Adjustment
A. Outside Nut C. Taptite Screw
B. Eccentric Nut D. Ramp
B
C
D
A
