23
00
F
R
F
R

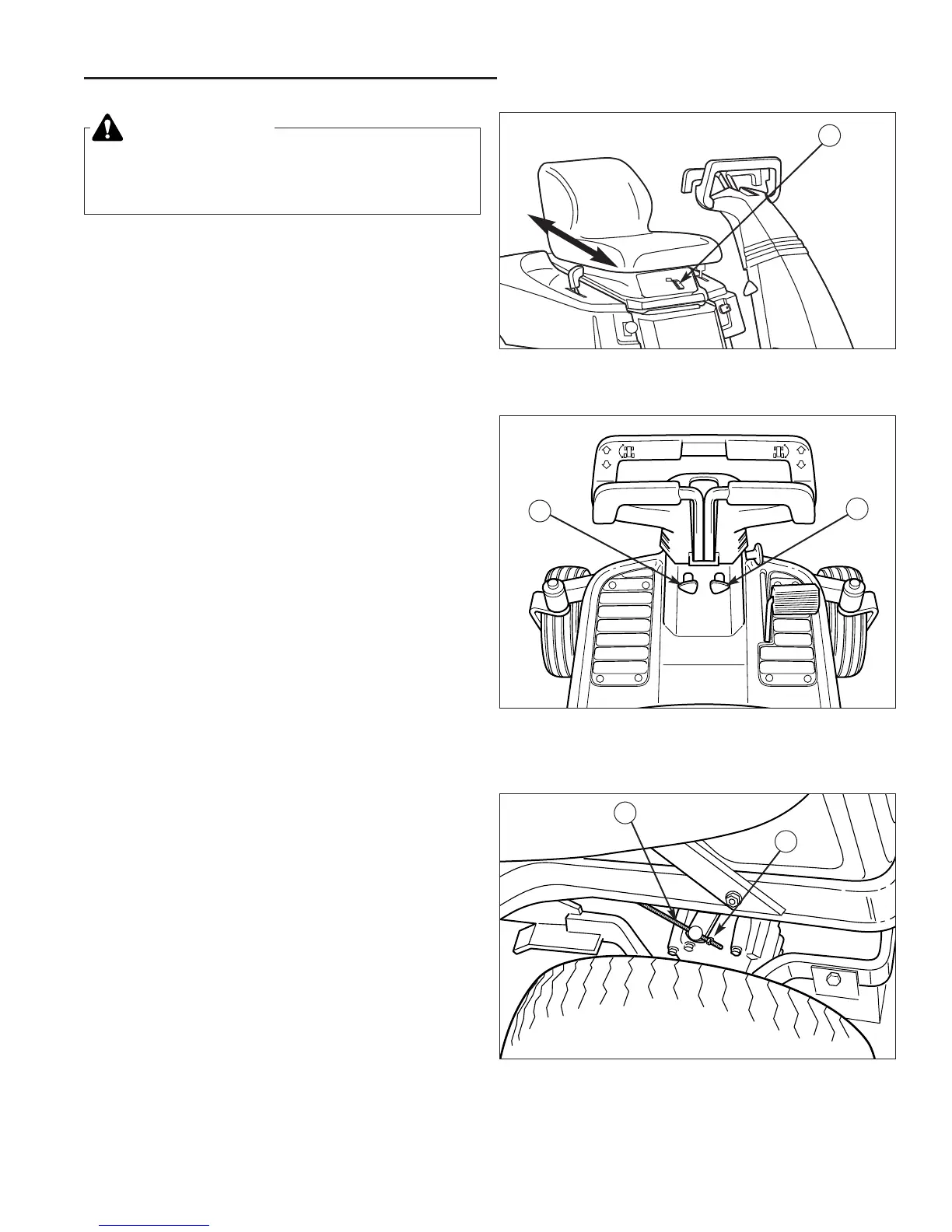

SEAT ADJUSTMENT
The seat can be adjusted forward and back. Move the
Seat Adjustment Lever (A, Figure 28) to the LEFT,
position the seat as desired, and then release the lever
to lock the seat in position.
Figure 28. Seat Adjustment
A. Seat Adjustment Lever
Figure 30. Brake Adjustment
A. Brake Rod
B. Adjustment Nut
Figure 29. Top Speed Adjustment Knobs
A. Left Drive Wheel
B. Right Drive Wheel
A
WARNING
To avoid serious injury, perform adjustments only
with engine stopped, key removed and rider on
level ground.
A
B
TOP SPEED ADJUSTMENT KNOBS
If the rider veers to the right or left when the ground
speed control levers are in the maximum forward posi-
tion, the top speed of each of these levers can be bal-
anced (lowered) by turning the adjustment knobs (see A
& B, Figure 29).
To reduce the speed of a transmission, turn its corre-
sponding knob CLOCKWISE several turns to lower the
top speed of a wheel, and COUNTER-CLOCKWISE to
increase the top speed of a wheel which has been previ-
ously lowered.
BRAKE ADJUSTMENT
1. Lift up the seat deck.
2. Release the parking brake and move the brake rod
back and forth (A, Figure 30). The rod should have
approximately 1/8” of back and forth travel.
3. Adjust the adjustment nut (B, Figure 30) until correct
travel is achieved.
4. Repeat on both sides.
A
B
Troubleshooting, Adjustment & Service
