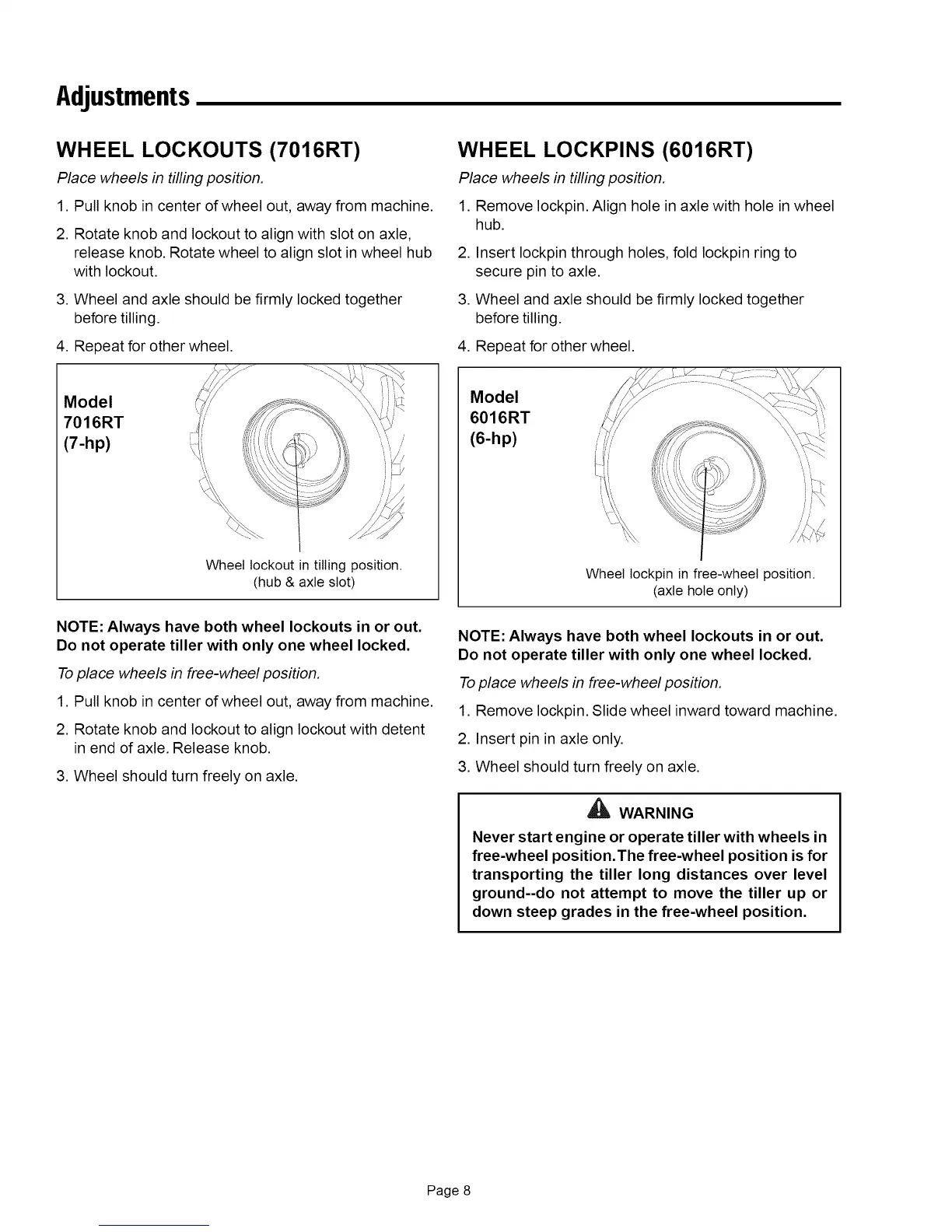

Adjustments
WHEEL LOCKOUTS (7016RT)
Place wheels in tilling position.
1. Pull knob in center of wheel out, away from machine.
2. Rotate knob and lockout to align with slot on axle,
release knob. Rotate wheel to align slot in wheel hub
with lockout.
3. Wheel and axle should be firmly locked together
before tilling.
4. Repeat for other wheel.
Model
7016RT
(7-hp)
Wheel lockout in tilling position.
(hub & axle slot)
NOTE: Always have both wheel lockouts in or out.
Do not operate tiller with only one wheel locked.
Toplace wheels in free-wheel position.
1. Pull knob in center of wheel out, away from machine.
2. Rotate knob and lockout to align lockout with detent
in end of axle. Release knob.
3. Wheel should turn freely on axle.
WHEEL LOCKPINS (6016RT)
Place wheels in tilling position.
1. Remove Iockpin. Align hole in axle with hole in wheel
hub.
,
,
Insert Iockpin through holes, fold Iockpin ring to
secure pin to axle.
Wheel and axle should be firmly locked together
before tilling.
4. Repeat for other wheel.
Model
6016RT
(6-hp)
Wheel lockpin in free-wheel position.
(axle hole only)
NOTE: Always have both wheel lockouts in or out.
Do not operate tiller with only one wheel locked.
Toplace wheels in free-wheel position.
1. Remove Iockpin. Slide wheel inward toward machine.
2. Insert pin in axle only.
3. Wheel should turn freely on axle.
_1_ WARNING
Never start engine or operate tiller with wheels in
free-wheel position.The free-wheel position is for
transporting the tiller long distances over level
ground--do not attempt to move the tiller up or
down steep grades in the free-wheel position.
Page 8
