Adjusting Mower Cutting Height
The cutting height is infinitely adjustable between
approximately 1.5 - 4.0” (3,8 - 10,2 cm).
The cutting height adjustment switch (A, Figure 6)
controls the mower cutting height. This same switch also
controls the spout rotator motor when a snowthrower is
installed. The arrows on the switch correspond to the
direction of adjustment (UP arrow raises cutting height,
RIGHT arrow rotates the spout right, etc). When the
adjustment indicator has reached the end of its travel,
release the switch; holding the switch down will damage
the motor.

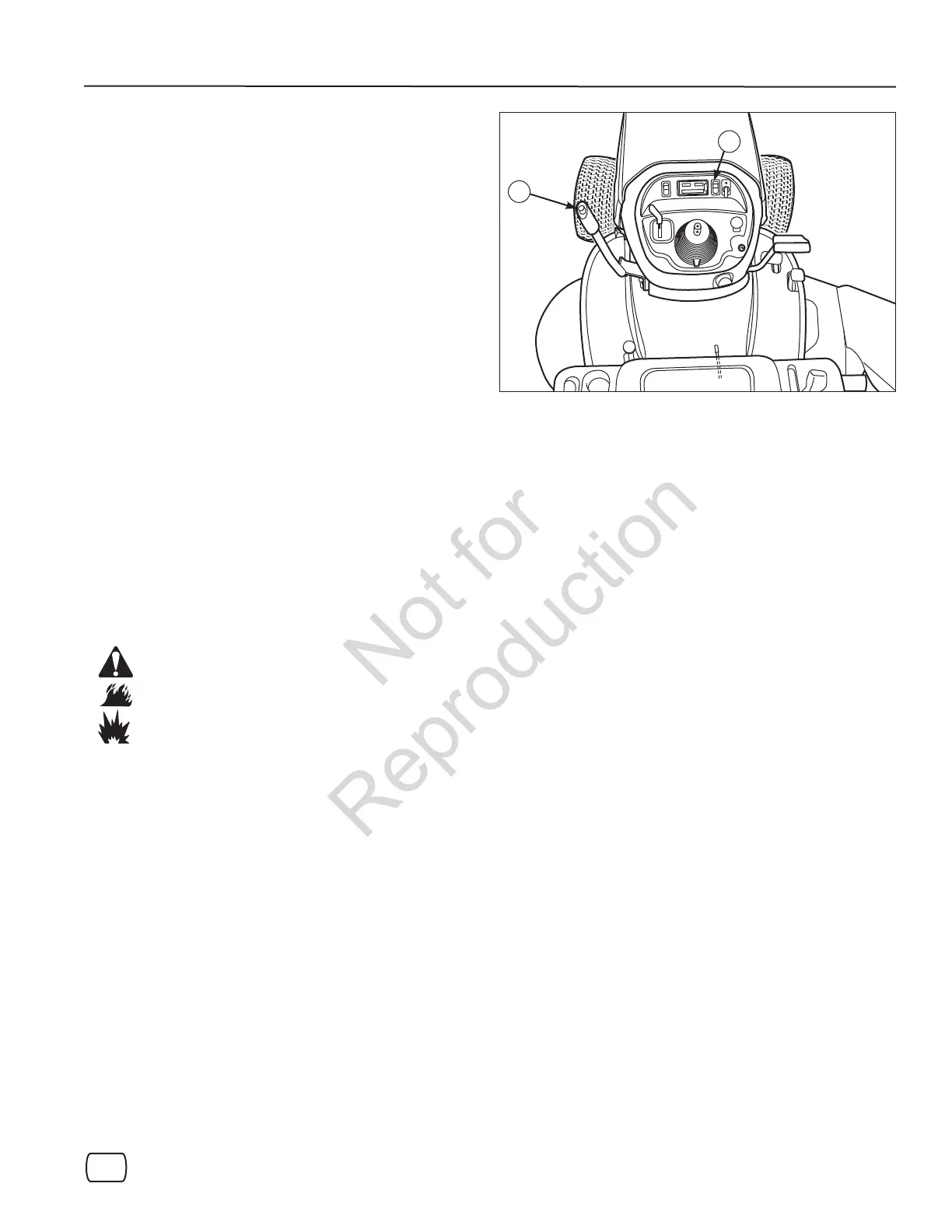

Figure 6. Raising and Lowering Mower
B
A
Attachment Lift Control
The attachment lift lever (B, Figure 6) raises and lowers
attachments that utilize the tractors manual lift linkage. To
lower an attachment: pull the lever back slightly, depress
the release button, and push the lever forward until it
locks in the lowered position. To raise an attachment:
push the lever forward slightly, depress the release
button, then pull the lever back until it locks in the raised
position.
OPERATION
Stopping the Tractor and Engine
1. Move the throttle control to the SLOW position.
2. Turn the key switch to the OFF position.
3. Remove the key and keep in a safe place out of the
reach of children.
WARNING
Fuel and its vapors are extremely
flammable and explosive.
Fire or explosion can cause severe burns
or death
19
