Normal
Care
CHECKING/ADDING
GASOLINE
Check
the
gas
gauge/cap
to
be
sure
there
is
enough
gasoline
to
complete
the
job.
To
add
gasoline,
remove
the
gas
gauge/cap.
Refer
to
your
engine
manual
for
gasoline
recom¬
mendations.
Install
and
hand
tighten
the
gas
gauge/cap.
LUBRICATING
THE
TRACTOR
Lubricate
the
tractor
as
shown
in
figures
9
thru
12.
When
a
grease
gun
is
shown,
wipe
the
fitting
clean,
apply
two
or
three
shots
of
lithium
base
automotive
grease,
and
wipe
off
excess
grease.
When
an
oil
can
is
shown
wipe
the
area
clean,
apply
a
few
drops
of
oil
(SAE
30),
then
wipe
up
drips
or
spills.

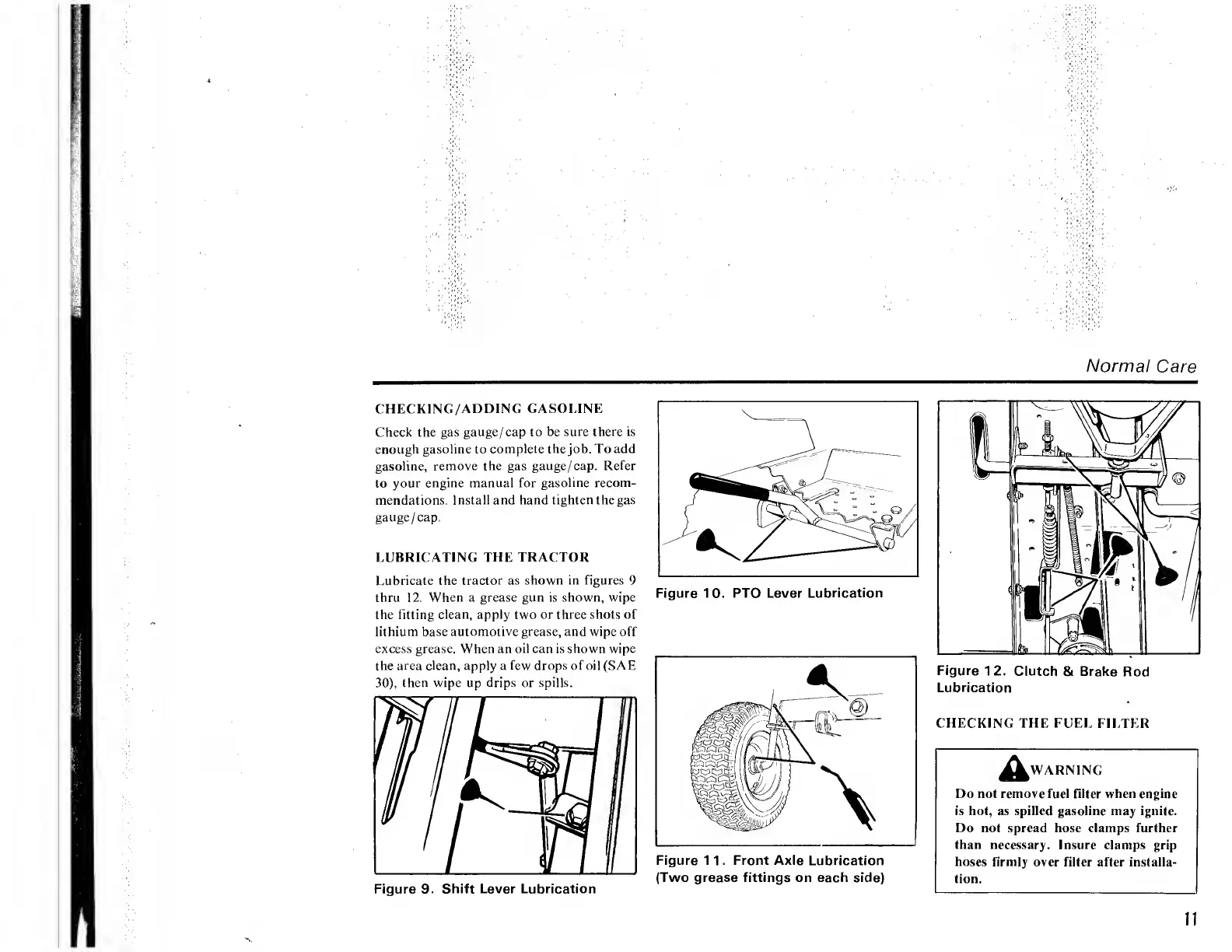

Figure
9.
Shift
Lever
Lubrication
Figure
10.
PTO
Lever
Lubrication
Figure
11.
Front
Axle
Lubrication
(Two
grease
fittings
on
each
side)
Figure
12.
Clutch
&
Brake
Rod
Lubrication
CHECKING
THE
FUEL
FILTER
^^
WARNING
Do
not
remove
fuel
filter
when
engine
is
hot,
as
spilled
gasoline
may
ignite.
Do
not
spread
hose
clamps
further
than
necessary.
Insure
clamps
grip
hoses
firmly
over
filter
after
installa¬
tion.
