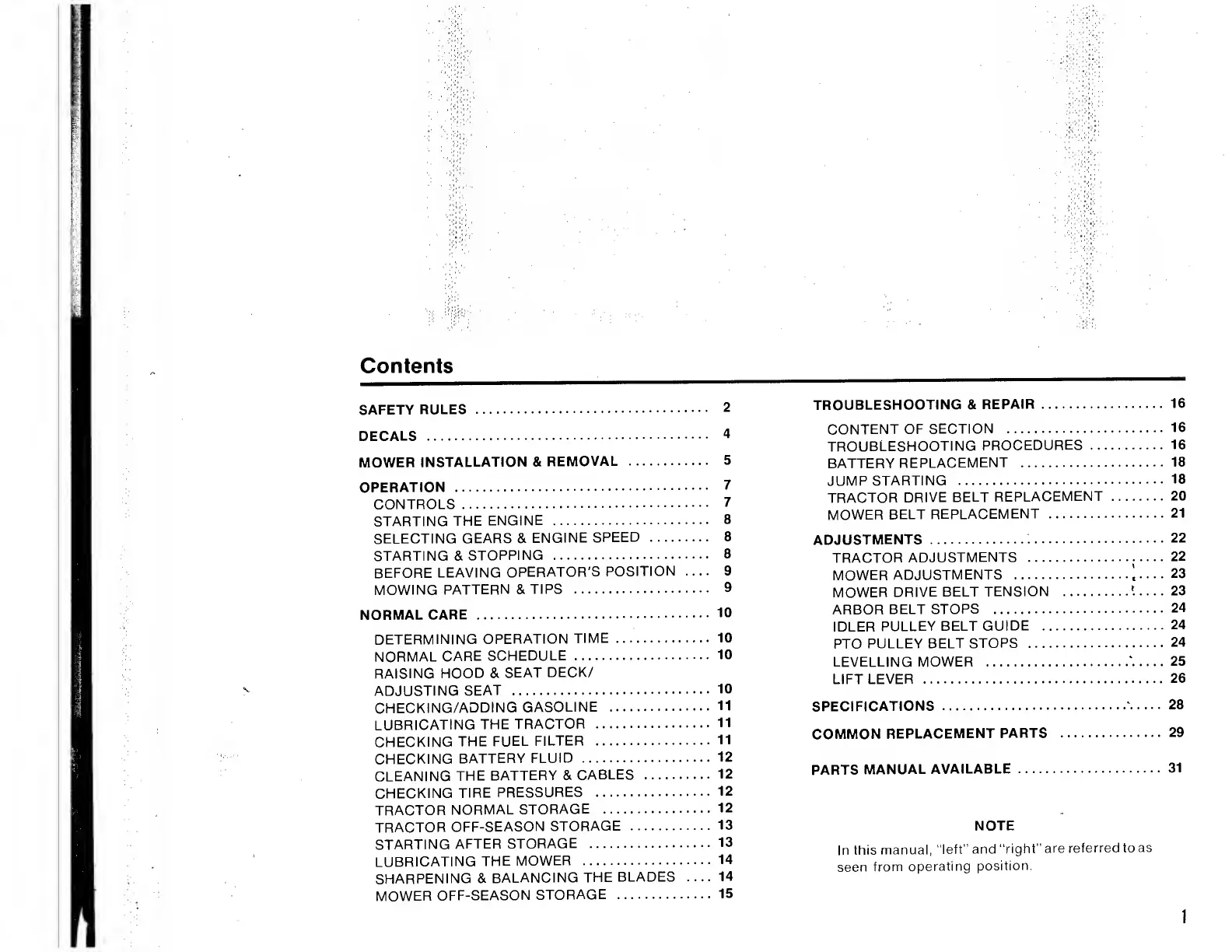

Simplicity 4200 Series User Manual

Contents
SAFETY RULES . 2
DECALS . 4
MOWER INSTALLATION & REMOVAL . 5
OPERATION . 7
CONTROLS . 7
STARTING THE ENGINE . 8
SELECTING GEARS & ENGINE SPEED . 8
STARTING & STOPPING . 8
BEFORE LEAVING OPERATOR'S POSITION .... 9
MOWING PATTERN & TIPS . 9
NORMAL CARE . 10
DETERMINING OPERATION TIME. 10
NORMAL CARE SCHEDULE. 10
RAISING HOOD & SEAT DECK/
ADJUSTING SEAT . 10
CHECKING/ADDING GASOLINE . 11
LUBRICATING THE TRACTOR . 11
CHECKING THE FUEL FILTER . 11
CHECKING BATTERY FLUID . 12
CLEANING THE BATTERY & CABLES .12
CHECKING TIRE PRESSURES . 12
TRACTOR NORMAL STORAGE . 12
TRACTOR OFF-SEASON STORAGE .13
STARTING AFTER STORAGE . 13
LUBRICATING THE MOWER . 14
SHARPENING & BALANCING THE BLADES .... 14
MOWER OFF-SEASON STORAGE .15
TROUBLESHOOTING & REPAIR. 16
CONTENT OF SECTION . 16
TROUBLESHOOTING PROCEDURES.16
BATTERY REPLACEMENT . 18
JUMP STARTING . 18
TRACTOR DRIVE BELT REPLACEMENT .20
MOWER BELT REPLACEMENT .21
ADJUSTMENTS. 2 2
TRACTOR ADJUSTMENTS . . ... . 2 2
MOWER ADJUSTMENTS . 1 . . . . 23
MOWER DRIVE BELT TENSION .'..... 23
ARBOR BELT STOPS . 24
IDLER PULLEY BELT GUIDE .24
PTO PULLEY BELT STOPS .24
LEVELLING MOWER . '..... 25
LIFT LEVER . 26
SPECIFICATIONS .*.28
COMMON REPLACEMENT PARTS . 29
PARTS MANUAL AVAILABLE. 31
NOTE
In this manual, “left” and “right” are referred to as
seen from operating position.
