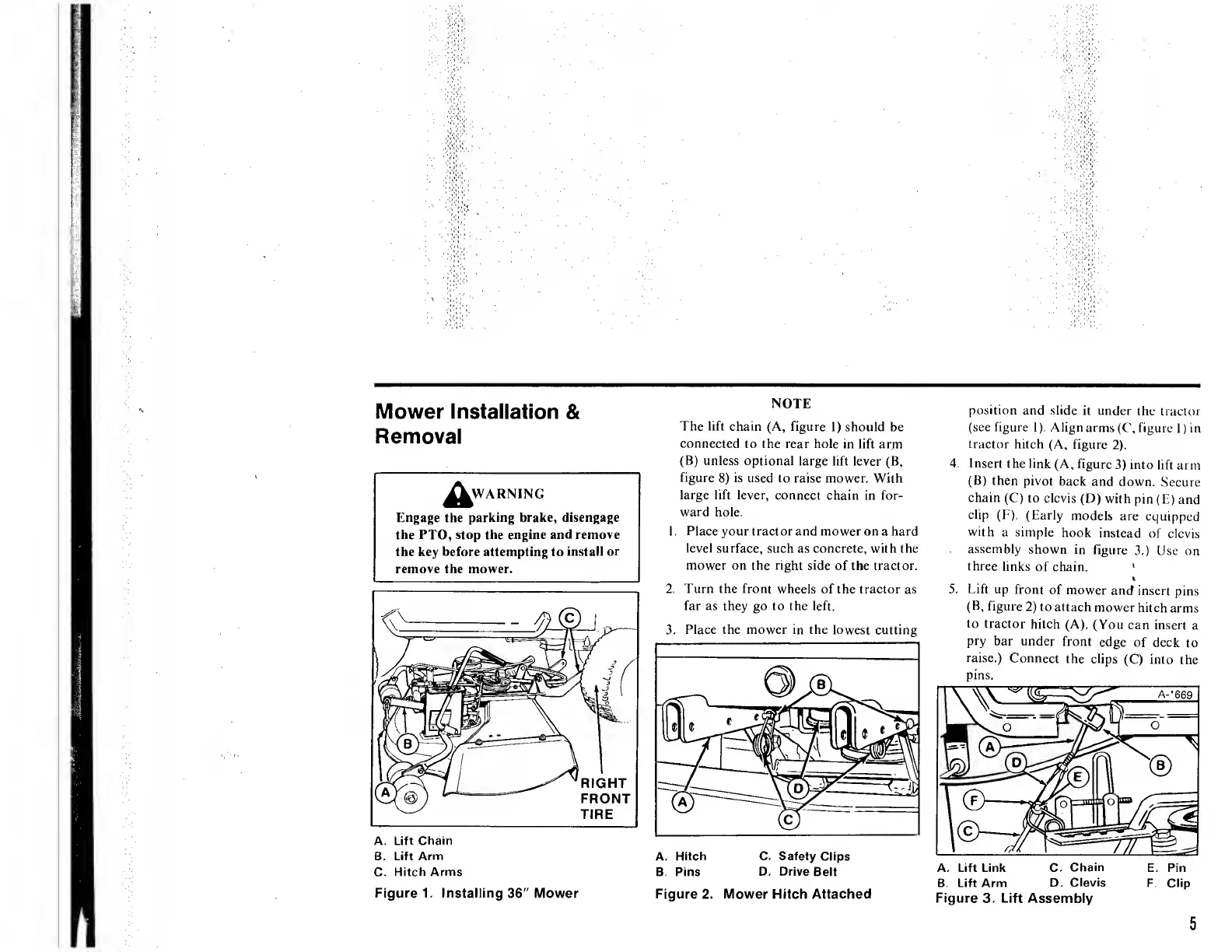

Simplicity 4200 Series User Manual

Mower Installation &
Removal
^^W ARNING
Engage the parking brake, disengage
the PTO, stop the engine and remove
the key before attempting to install or
remove the mower.
A. Lift Chain
B. Lift Arm
C. Hitch Arms
Figure 1. Installing 36" Mower
NOTE
The lift chain (A, figure I) should be
connected to the rear hole in lift arm
(B) unless optional large lift lever (B,
figure 8) is used to raise mower. With
large lift lever, connect chain in for¬
ward hole.
1. Place your tractor and mower on a hard
level surface, such as concrete, with the
mower on the right side of the tractor.
2. Turn the front wheels of the tractor as
far as they go to the left.
3. Place the mower in the lowest cutting
A. Hitch C. Safety Clips
B. Pins 0. Drive Belt
Figure 2. Mower Hitch Attached
position and slide it under the tractor
(see figure I). Align arms (C, figure I) in
tractor hitch (A, figure 2).
4. Insert the link (A, figure 3) into lift arm
(B) then pivot back and down. Secure
chain (C) to clevis (D) with pin (E) and
clip (F). (Early models are equipped
with a simple hook instead of clevis
assembly shown in figure 3.) Use on
three links of chain. '
I
5. Lift up front of mower and insert pins
(B, figure 2) to attach mower hitch arms
to tractor hitch (A). (You can insert a
pry bar under front edge of deck to
raise.) Connect the clips (C) into the
pins.
Figure 3. Lift Assembly
5
