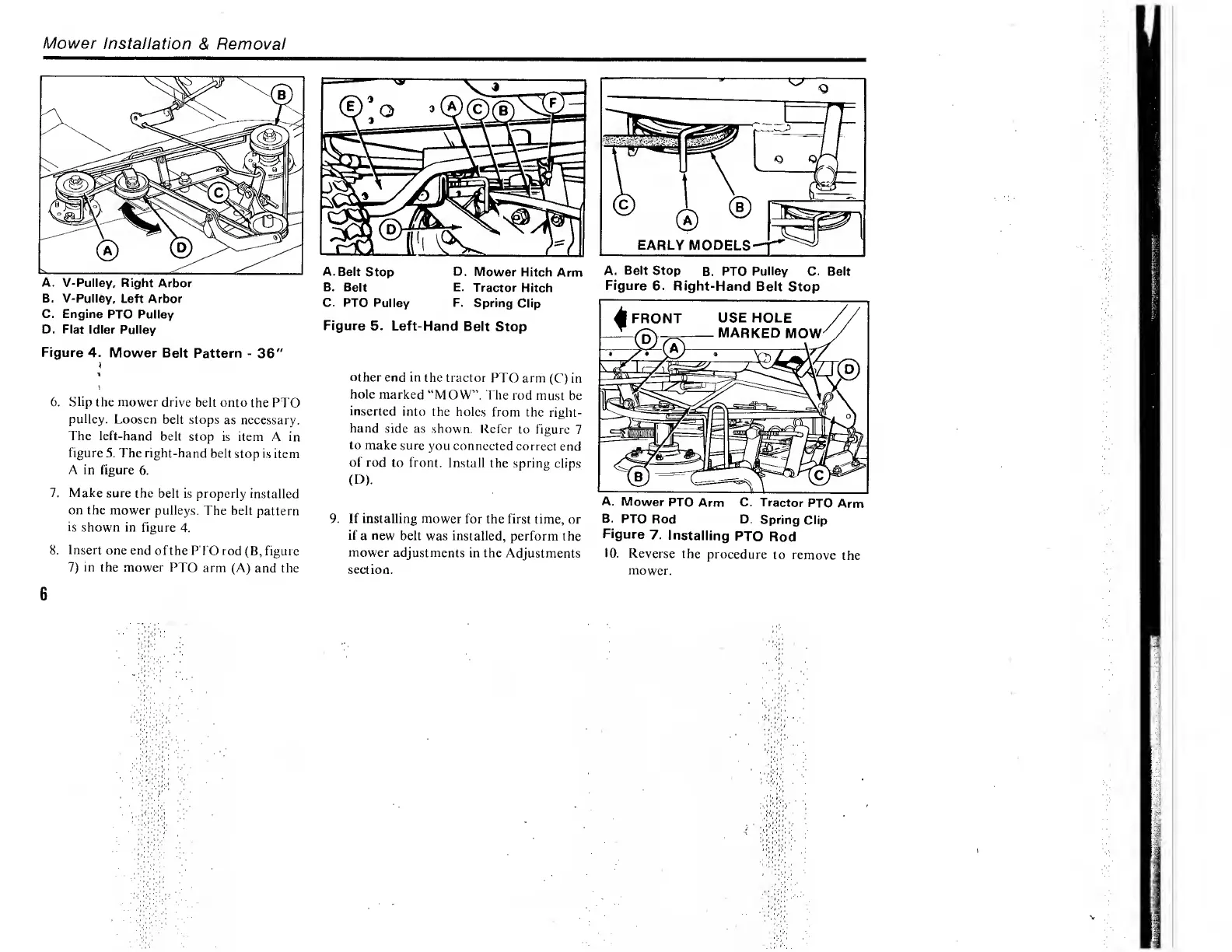

Mower Installation & Removal
B. V-Pulley, Left Arbor
C. Engine PTO Pulley
D. Flat Idler Pulley
Figure 4. Mower Belt Pattern - 36"
I
6. Slip the mower drive belt onto the PTO
pulley. Loosen belt stops as necessary.
The left-hand belt stop is item A in
figure 5. The right-hand belt stop is item
A in figure 6.
7. Make sure the belt is properly installed
on the mower pulleys. The belt pattern
is shown in figure 4.
8. Insert one end of the PTO rod (B, figure
7) in the mower PTO arm (A) and the
A. Belt Stop D. Mower Hitch Arm
B. Belt E. Tractor Hitch
C. PTO Pulley F. Spring Clip
Figure 5. Left-Hand Belt Stop
other end in the tractor PTO arm (C) in
hole marked “MOW”. The rod must be
inserted into the holes from the right-
hand side as shown. Refer to figure 7
to make sure you connected correct end
of rod to front. Install the spring clips
(D).
9. I f installing mower for the first time, or
if a new belt was installed, perform the
mower adjustments in the Adjustments
section.
6
EARLY MODELS
A. Belt Stop B. PTO Pulley C. Belt
Figure 6. Right-Hand Belt Stop
A. Mower PTO Arm C. Tractor PTO Arm
B. PTO Rod D. Spring Clip
Figure 7. Installing PTO Rod
10. Reverse the procedure to remove the
mower.
