Mower deck removal
(continued)

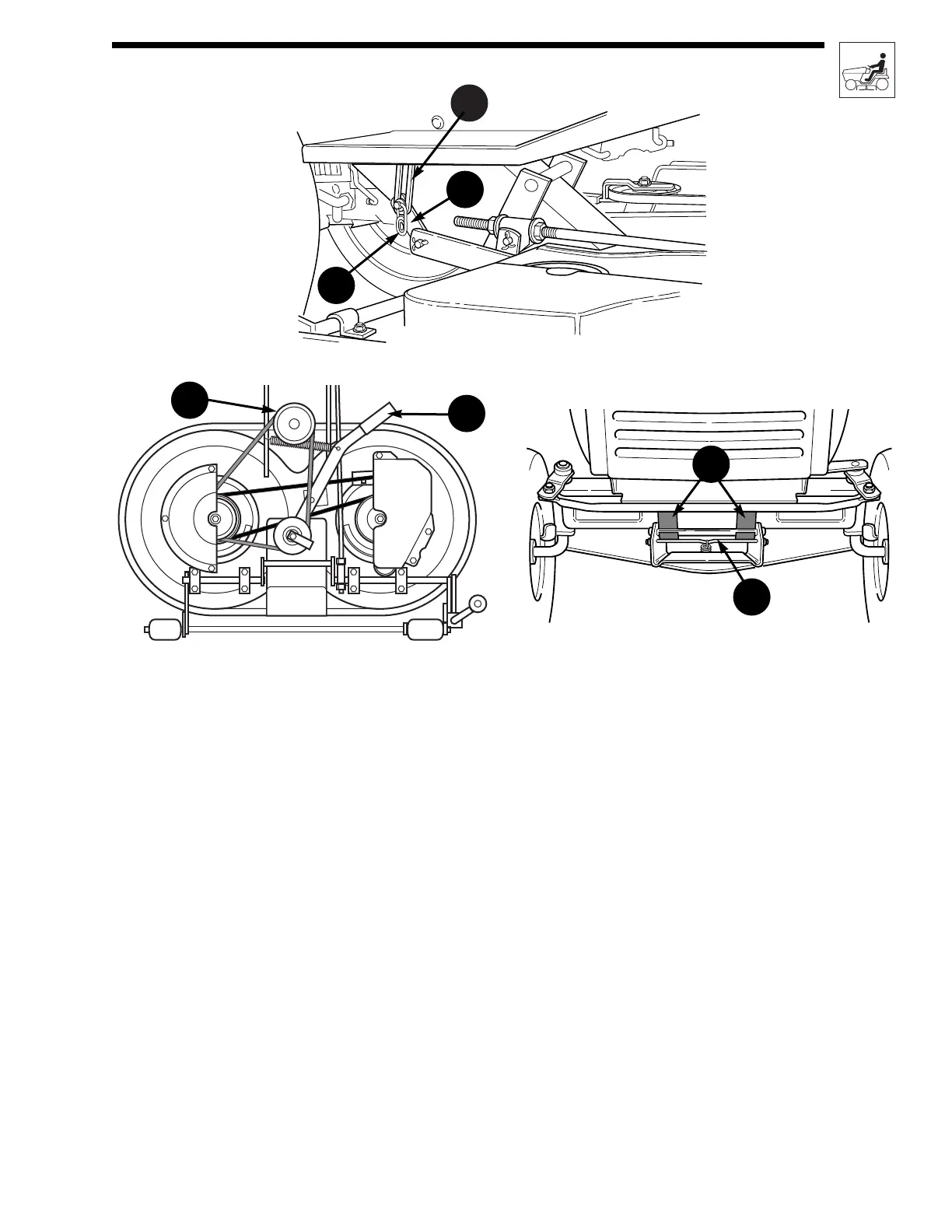

5. Disconnect the mower deck lift arm (H) from the tractor lift
arm (G). Re-install washer and safety clip (I) on the mower
deck lift arm (H).
6. Move the idler arm (J) to release belt tension and remove
belt from PTO pulley (K).
7. Turn wheels straight ahead. Pull the spring-loaded lever (M)
and lift mower deck hitch off of the tractor brackets (L).
8. Turn wheels fully left and slide mower deck out the right
side of tractor.
G
H
I
J
K
L
M
