Not for
Reproduction
15

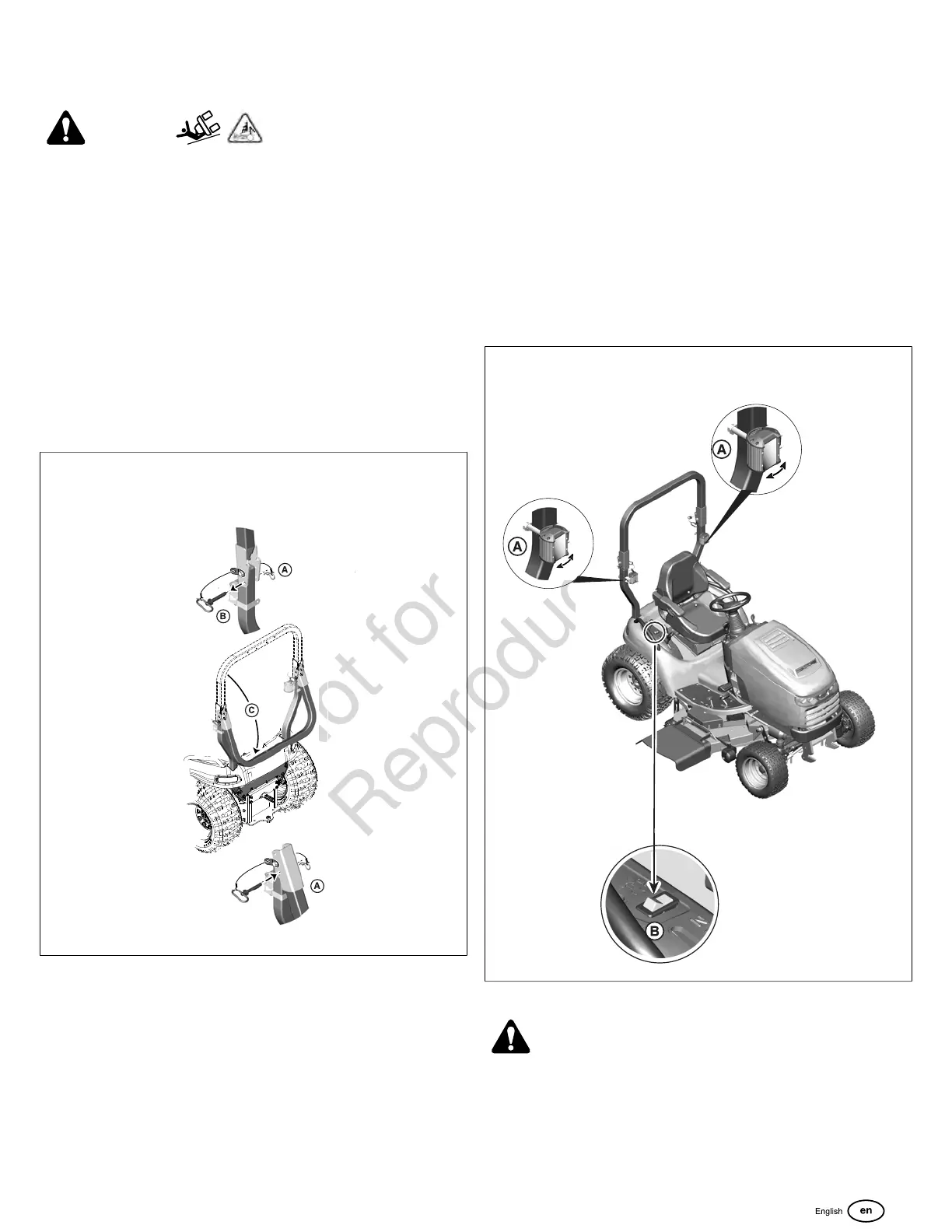

Roll Over Protective Structure (ROPS)
Operation
WARNING
To avoid serious injury or death from tractor roll over, follow
the instructions below:
Keep roll bar in the raised position and use seat belt.
There is no roll over protection when the roll bar is
down.
Lower the roll bar only when necessary and NEVER
remove it.
Do NOT use seat belt when the roll bar is down.
Raise the roll bar as soon as clearance permits.
Do NOT jump off if mower tips.
Lowering the Roll Bar
1. Remove the retaining clips (A, Figure9) from the
retainer pins (B).
9
2. Push or pull the top of the roll bar (C)and remove the
retainer pins.
3. Lower roll bar. Install the retainer pins and clips to lock
roll bar in the down position.
Raising the Roll Bar
1. Remove the retaining clips (A, Figure9) from the
retainer pins (B). Then, remove the retainer pins.
2. Raise the roll bar (C) until the top of the roll bar touches
the upright tubes.
3. Push or pull the top of the roll bar. Then, install the
retainer pins and clips to lock the roll bar in the raised
position.
Utility Work Light
The ROPS utility work light (A, Figure10) can be rotated
by hand to light front, or side mowing areas. The work light
switch is a three position switch (B):
The up position turns on the tractor headlights, red tail
lights, and ROPS work light.
The middle position turns on the headlights, and red tail
lights.
The down position turns off all the lights.
10
Seat Belt
WARNING
Failure to correctly inspect and maintain the seat belt can
cause serious injury or death.
Fasten Seat Belt
1. Hold the latch and pull the seat belt across the body.
2. Install the latch into the buckle. Listen for a click.
